Pogo Pin / 彈簧針
-
Pogo Pin / 彈簧針
-
MORE

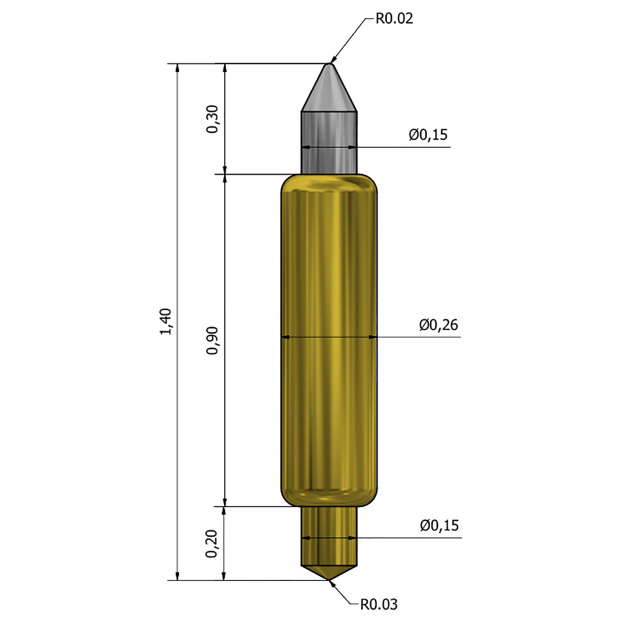

IAM-PT00035-00
Application QFN / QFP / LGA
Height 1.2mm / 1.4mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 8gf@0.2mm
Recommended Travel 0.2mm
Temperature -40~125℃
Tip (device / PCB) Cone / Cone
IAM-PT00035-00
-
MORE

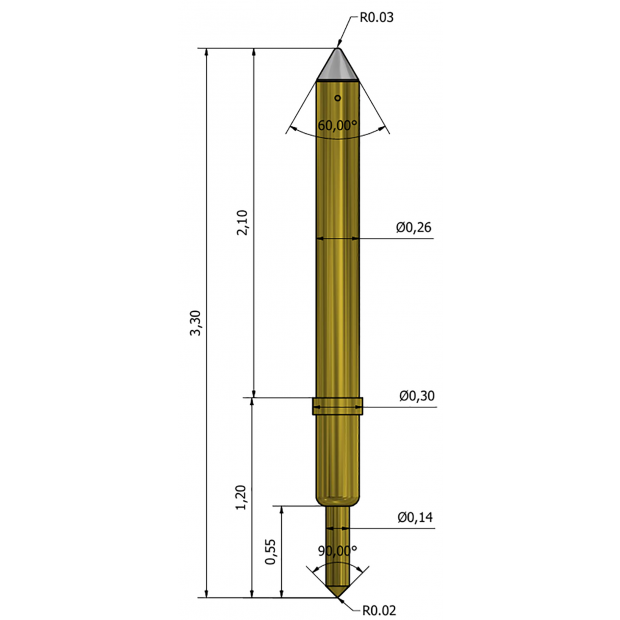

IAM-PT00034-01
Application QFN / QFP / LGA / BGA
Height 2.9mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 24.5gf@0.4mm
Recommended Travel 0.5mm
Temperature -55~155℃
IAM-PT00034-01
-
MORE

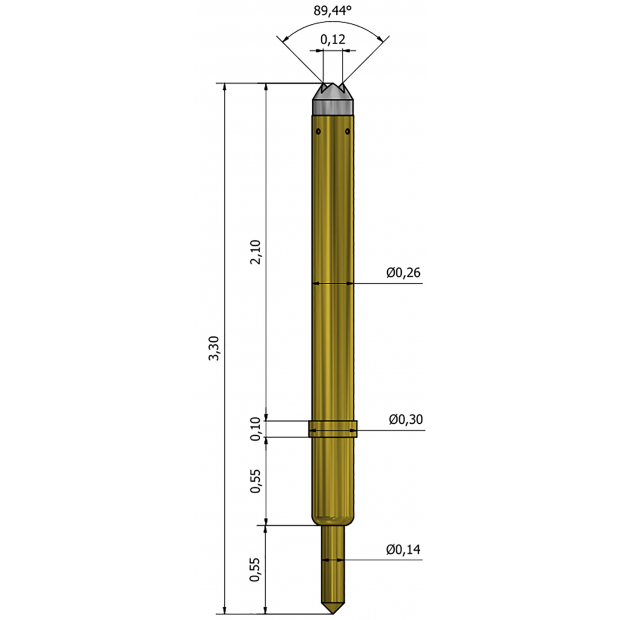

IAM-PT00034-00
Application BGA
Height 2.9mm / 3.3mm (Test / Rest)
Working Spring Force 31gf@0.4mm
Temperature -50~155℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00034-00
-
MORE

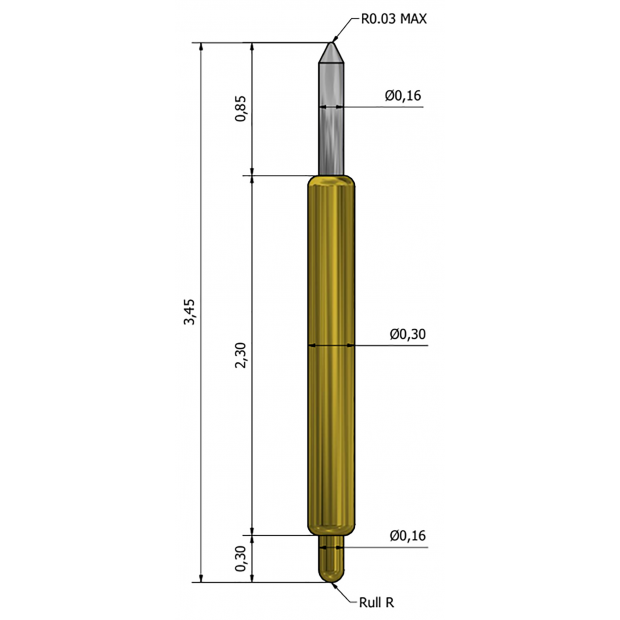

IAM-PT00033-02
Application BGA
Height 3.03mm / 3.45mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 26gf@0.42mm
Recommended Travel 0.42mm
Temperature -40~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00033-02
-
MORE

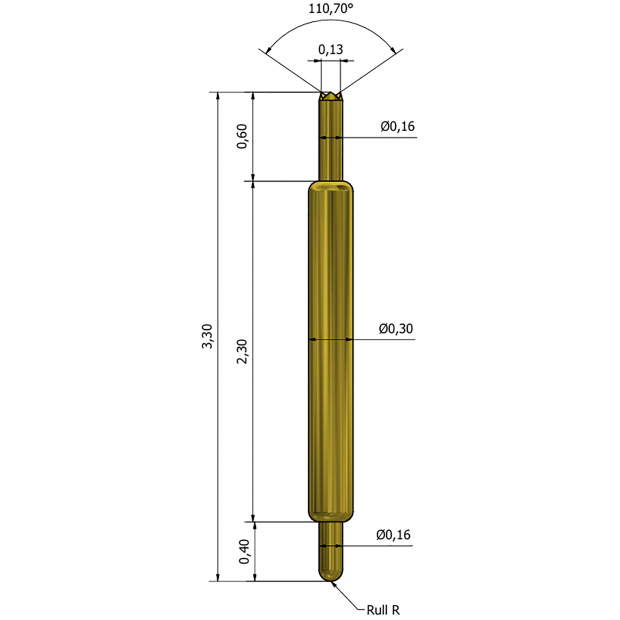

IAM-PT00033-01
Application BGA
Height 2.8mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 31gf@0.5mm
Recommended Travel 0.5mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00033-01
-
MORE

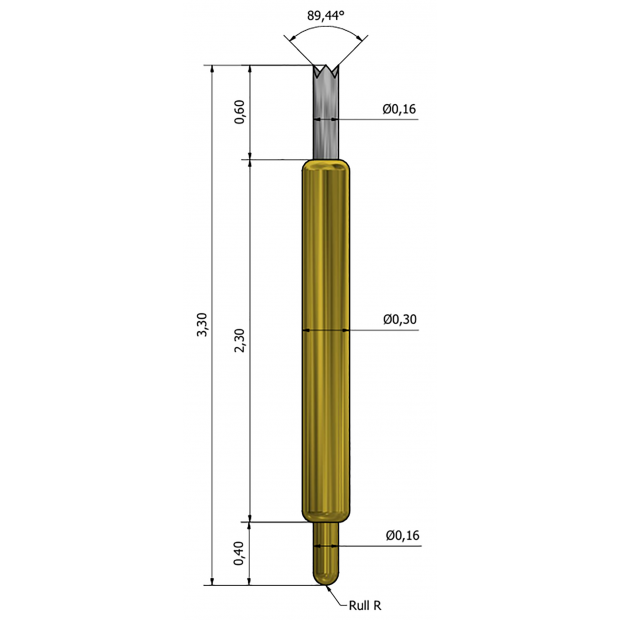

IAM-PT00033-00
Application BGA
Height 2.8mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 31gf@0.5mm
Recommended Travel 0.5mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00033-00
-
MORE

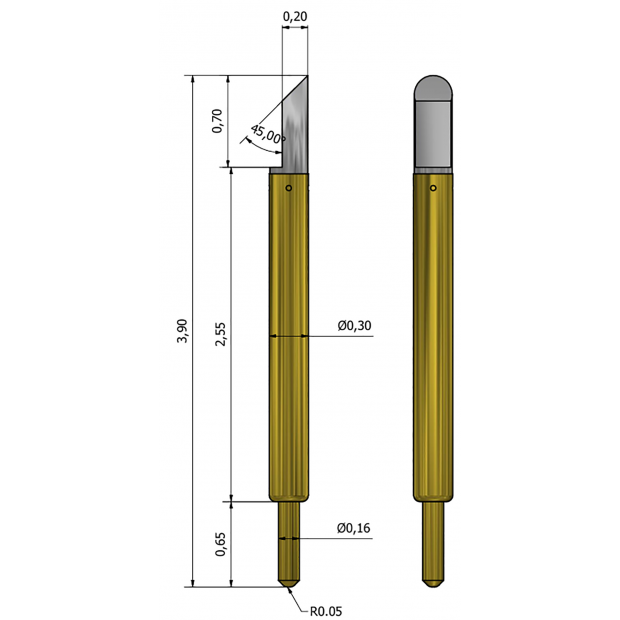

IAM-PT00032-00
Application QFN / QFP / LGA
Height 3.45mm / 3.9mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 27gf@0.45mm
Recommended Travel 0.45mm
Full Travel 0.65mm
Temperature -40~120℃
Tip (device side / PCB side) Kelvin / Cone
IAM-PT00032-00
-
MORE
IAM-PT00031-01
Application QFN / QFP / LGA / BGA
Height 2.5mm / 3.0mm (Test / Rest)
Pitch Range (MIN.)0.8mm
Working Spring Force 25gf@0.5mm
Recommended Travel 0.5mm
Full Travel 0.6mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00031-01
-
MORE

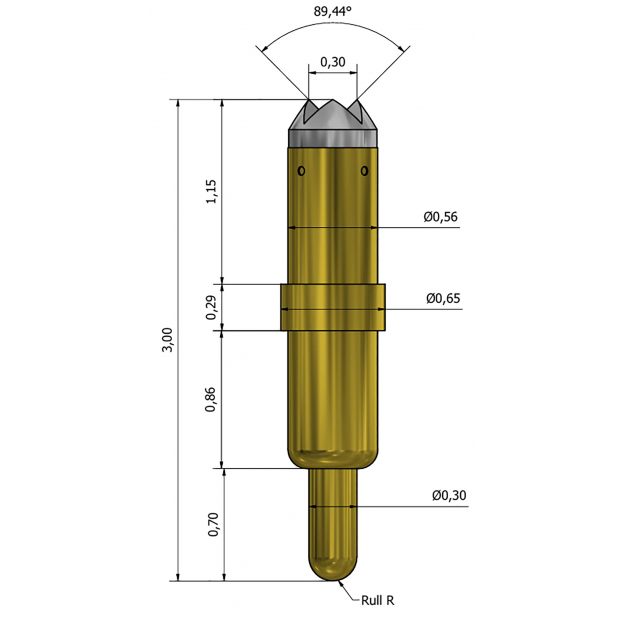

IAM-PT00031-00
Application QFN / QFP / LGA / BGA
Height 2.5mm / 3.0mm (Test / Rest)
Pitch Range (MIN.)0.8mm
Working Spring Force 30gf@0.5mm
Recommended Travel 0.5mm
Full Travel 0.6mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00031-00
-
MORE

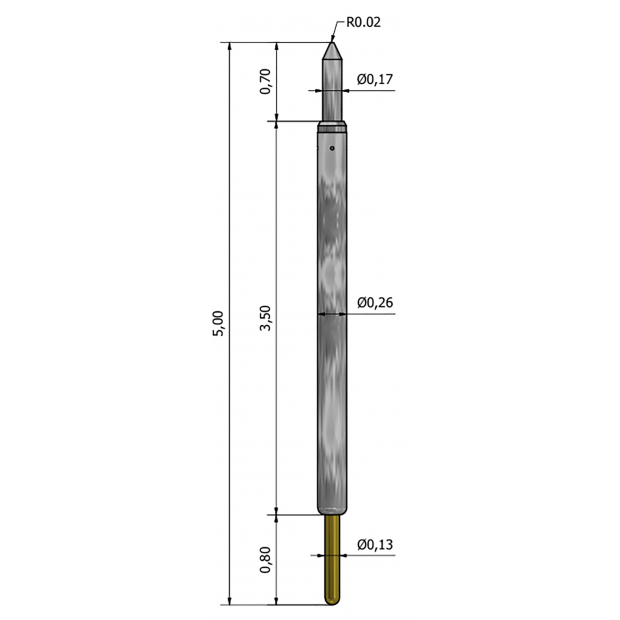

IAM-PT00029-04
Application QFN / QFP / LGA
Height 4.5mm / 5.0mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 26gf@0.5mm
Temperature -25~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00029-04
-
MORE

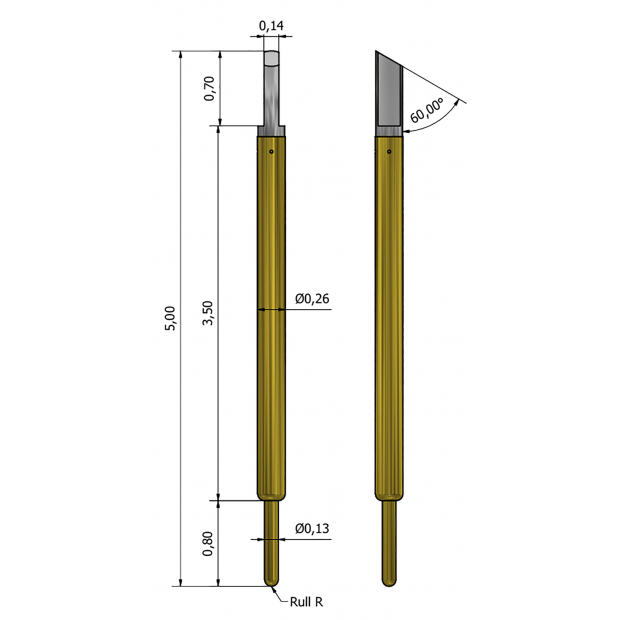

IAM-PT00029-03
Application QFN / QFP / LGA
Height 4.5mm / 5.0mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 26gf@0.5mm
Temperature -40~120℃
Tip (device side / PCB side) Kelvin TIP / Cone
IAM-PT00029-03
-
MORE

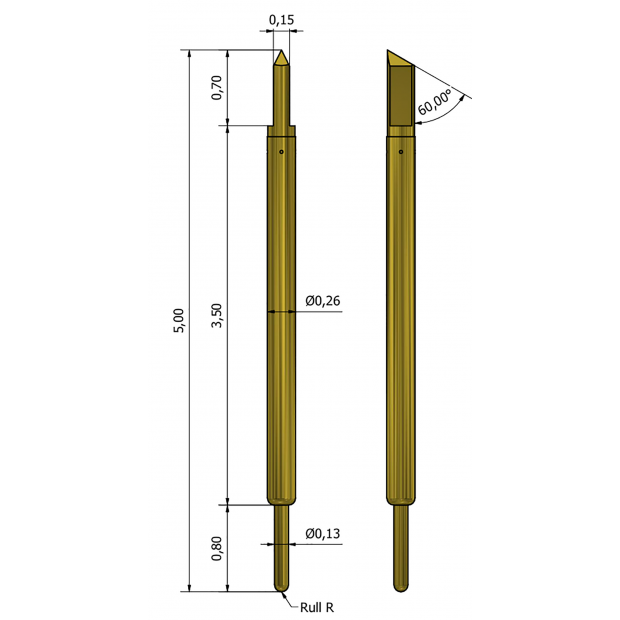

IAM-PT00029-02
Application QFN / QFP / LGA
Height 4.5mm / 5.0mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 26gf@0.5mm
Temperature -40~120℃
Tip (device side / PCB side) Kelvin TIP / Cone
IAM-PT00029-02
