Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
one two four
  • MORE

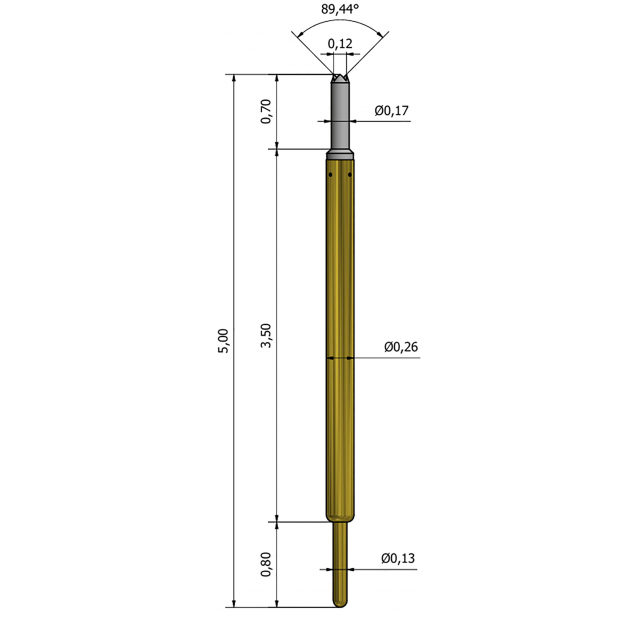

    IAM-PT00029-01

    Application BGA

    Height 4.5mm / 5.0mm (Test / Rest)

    Working Spring Force 26gf@0.5mm

    Temperature -40~120℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

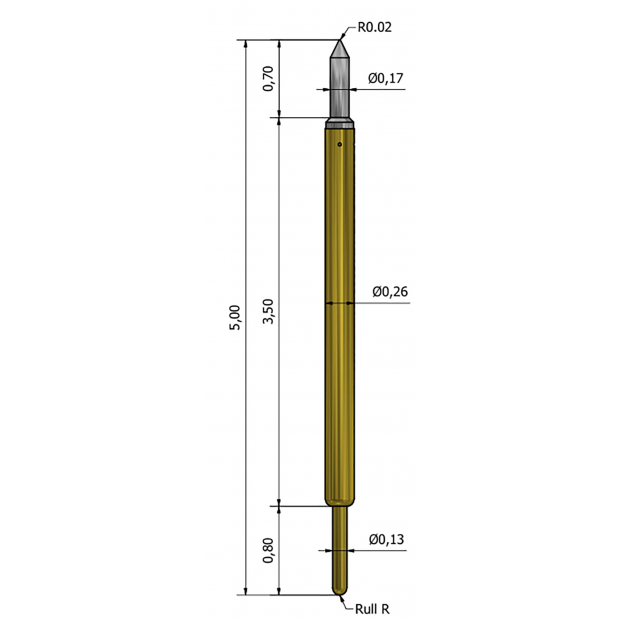

    IAM-PT00029-00

    Application QFN / QFP / LGA

    Height 4.5mm / 5.0mm (Test / Rest)

    Working Spring Force 26gf@0.5mm

    Temperature -40~120℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

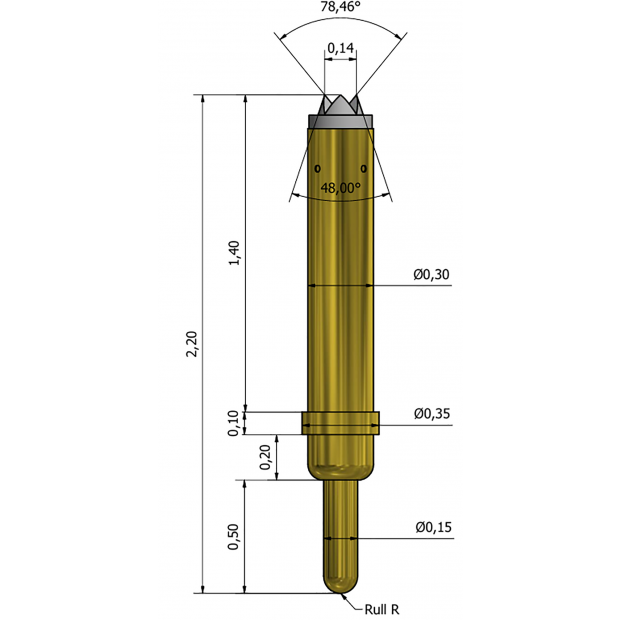

    IAM-PT00028-05

    Application BGA

    Height 1.8mm / 2.2mm (Test / Rest)

    Working Spring Force 21gf@0.4mm

    Full Travel 0.48mm

    Temperature -40~120℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

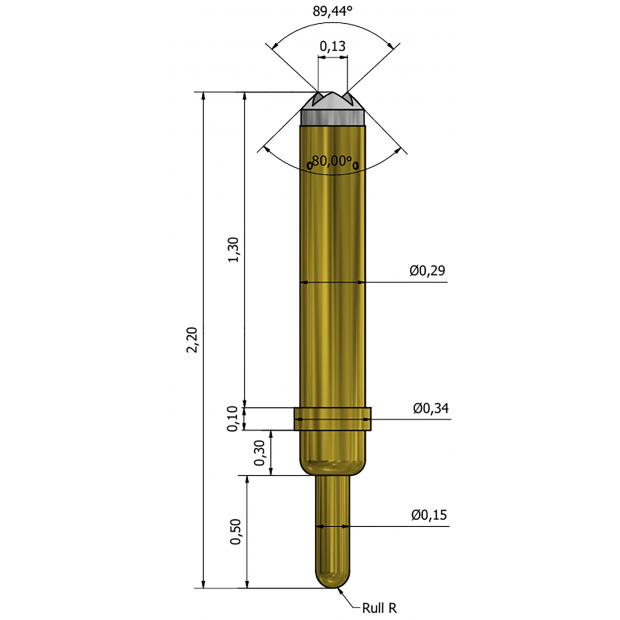

    IAM-PT00028-03

    Application BGA

    Height 1.8mm / 2.2mm (Test / Rest)

    Working Spring Force 21gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -55~150℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

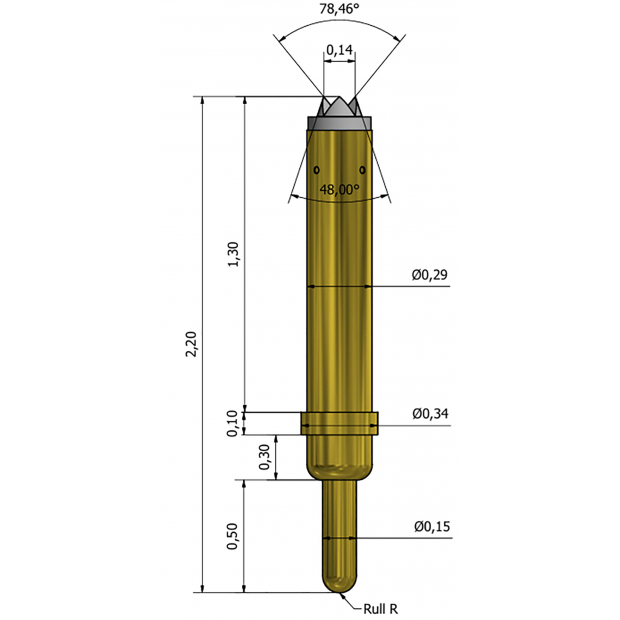

    IAM-PT00028-02

    Application BGA

    Height 1.8mm / 2.2mm (Test / Rest)

    Working Spring Force 21gf@0.4mm

    Recommended Travel 0.48mm

    Temperature -40~120℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

    IAM-PT00028-00

    Application BGA

    Height 1.8mm / 2.2mm (Test / Rest)

    Working Spring Force 21gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -55~150℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

    IAM-PT00026-02

    Application QFN / QFP / LGA

    Height 13.5mm / 15.5mm (Test / Rest)

    Working Spring Force 32.5gf@2.0mm

    Temperature -55~150℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

    IAM-PT00026-01

    Application QFN / QFP / LGA

    Height 9.0mm / 11.5mm (Test / Rest)

    Working Spring Force 30gf@2.5mm

    Recommended Travel 3.0mm

    Temperature -55~150℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

    IAM-PT00026-00

    Application QFN / QFP / LGA

    Height 13.5mm / 15.5mm (Test / Rest)

    Working Spring Force 32.5gf@2.0mm

    Temperature -55~150℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

    IAM-PT00025-01

    Application BGA

    Height 4.04mm / 4.84mm (Test / Rest)

    Pitch Range (MIN.) 0.8mm

    Working Spring Force 25gf@0.8mm

    Recommended Travel 0.8mm

    Temperature -40~155℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

    IAM-PT00025-00

    Application BGA

    Height 4.04mm / 4.84mm (Test / Rest)

    Working Spring Force 25gf@0.8mm

    Temperature -40~155℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

    IAM-PT00023-03

    Application QFN

    Height 3.0mm / 3.4mm (Test / Rest)

    Pitch Range (MIN.) 0.35mm

    Working Spring Force 20gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -45~125℃

    Tip (device side / PCB side) Sharp Kelvin end / Cone
