Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
one two four
  • MORE

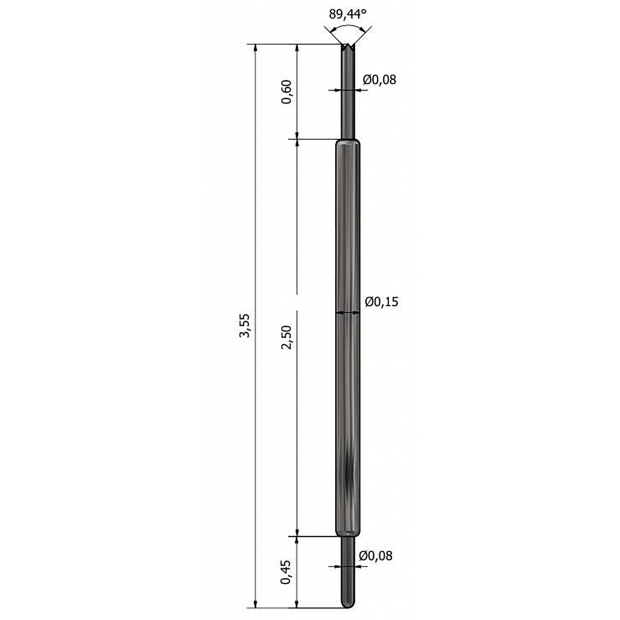

    IAM-PT00001-02

    Application BGA

    Height 3.15mm / 3.55mm (Test / Rest)

    Working Spring Force 16gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -40~125℃
  • MORE

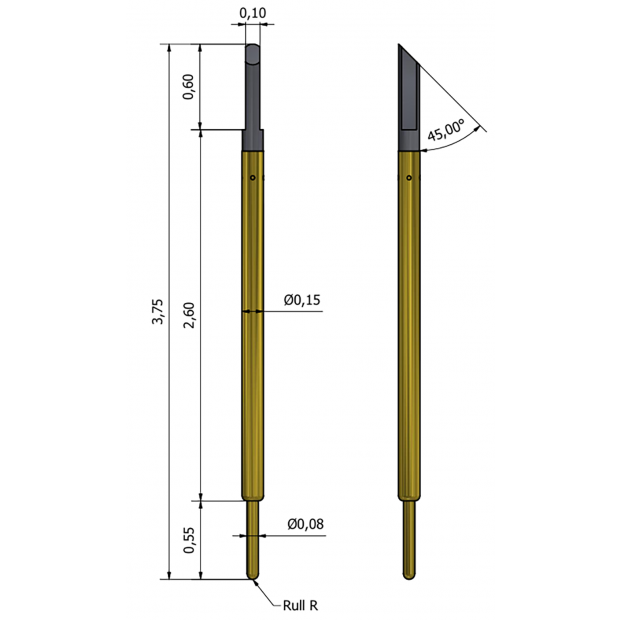

    IAM-PT00001-00

    Application LGA / WLCSP

    Height 3.4mm / 3.75mm (Test / Rest)

    Pitch Range (Min.) 0.2mm

    Working Spring Force 13.6gf@0.35mm

    Recommended Travel 0.35mm

    Temperature -55~125℃

    Tip (device side / PCB side) Sarp Kelvin end / Cone
