Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
one two four
  • MORE

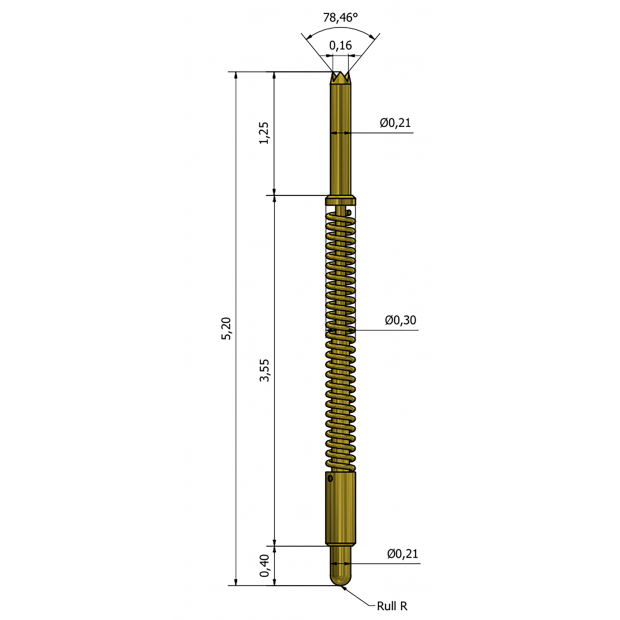

    IAM-PT00006-01

    Application QFN / QFP / LGA / BGA

    Height 4.5mm / 5.2mm (Test / Rest)

    Pitch Range (MIN.) 0.40mm

    Working Spring Force 35gf@0.70mm

    Recommended Travel 0.70mm

    Temperature -40~120℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

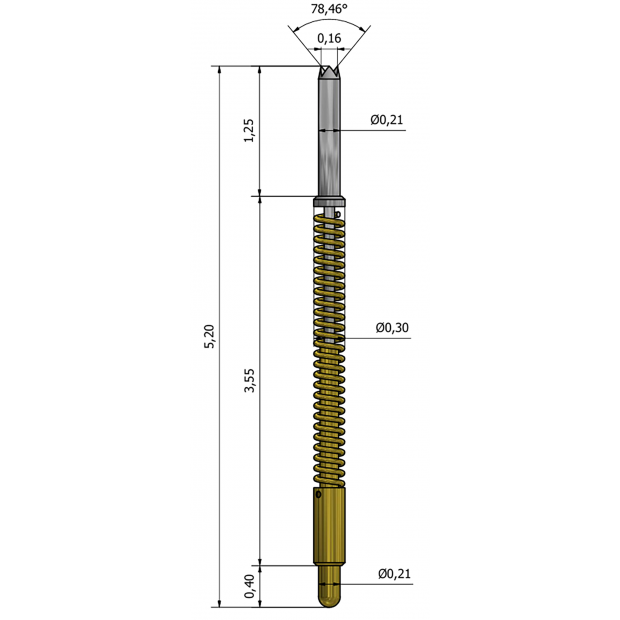

    IAM-PT00006-00

    Application QFN / QFP / LGA / BGA

    Height 4.5mm / 5.2mm (Test / Rest)

    Working Spring Force 35gf@0.70mm

    Temperature -40~120℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

    IAM-PT00005-00

    Application LGA / WLCSP

    Height 5.1mm / 6.8mm (Test / Rest)

    Pitch Range (Min.) 0.50mm

    Working Spring Force 36.9gf@0.70mm

    Recommended Travel 0.7mm

    Temperature -45~125℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

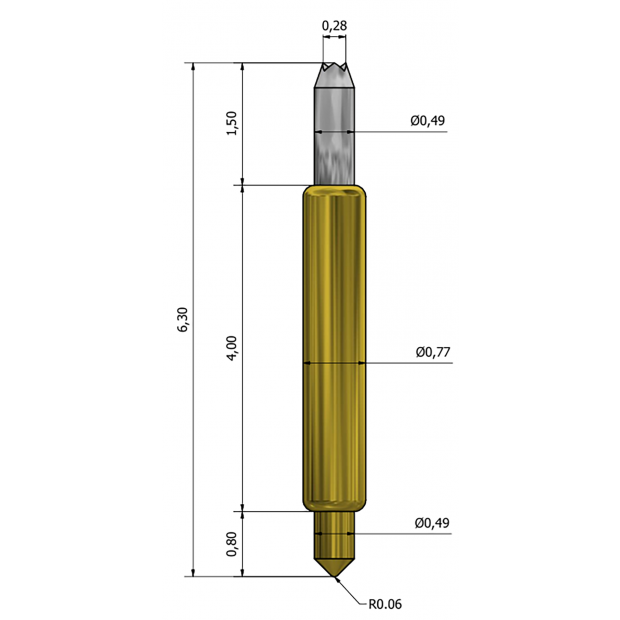

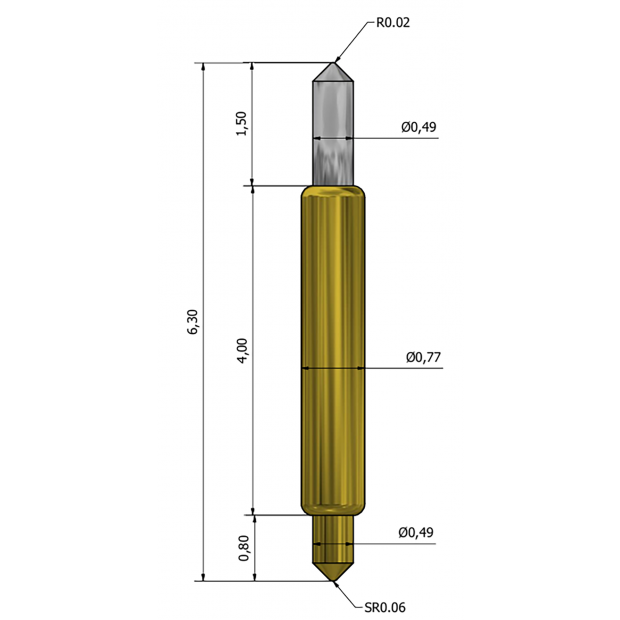

    IAM-PT00004-01

    Application QFN / QFP / LGA

    Height 5.5mm / 6.3mm (Test / Rest)

    Pitch Range (Min.) 0.85mm

    Working Spring Force 30gf@0.80mm

    Recommended Travel 1.0mm

    Temperature -55~150℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

    IAM-PT00004-00

    Application QFN / QFP / LGA

    Height 5.5mm / 6.3mm (Test / Rest)

    Pitch Range (Min.) 0.85mm

    Working Spring Force 45gf@0.80mm

    Recommended Travel 1.0mm

    Temperature -55~150℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

    IAM-PT00003-06

    Application BGA

    Height 2.4mm / 2.8mm (Test / Rest)

    Pitch Range (Min.) 0.50mm

    Working Spring Force 32gf@0.40mm

    Temperature -40~125℃
  • MORE

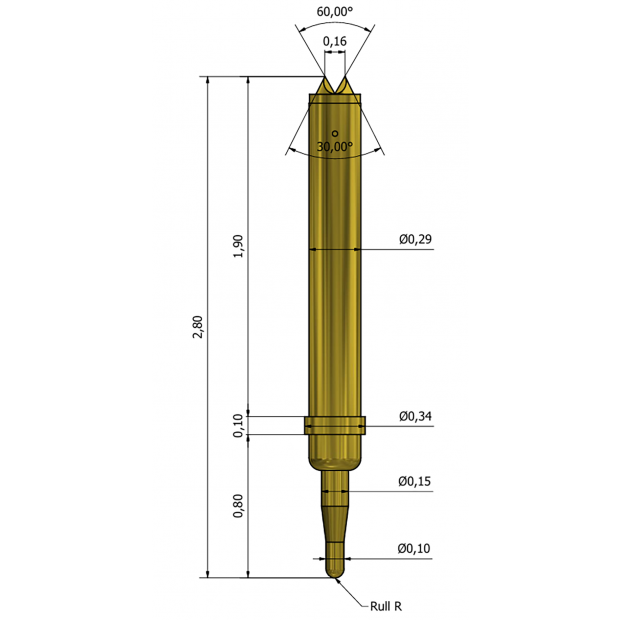

    IAM-PT00003-05

    Application BGA

    Height 2.4mm / 2.8mm (Test / Rest)

    Pitch Range (Min.) 0.50mm

    Working Spring Force 32.0gf@0.40mm

    Temperature -40~125℃
  • MORE

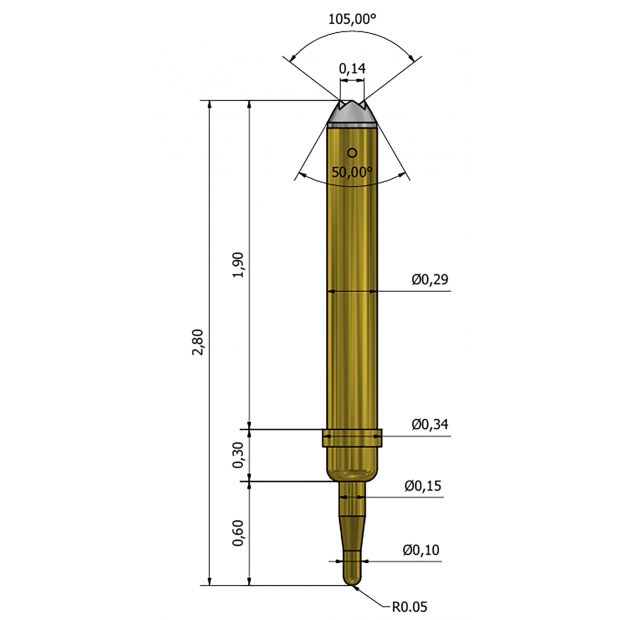

    IAM-PT00003-03

    Application BGA

    Height 2.4mm / 2.8mm (Test / Rest)

    Pitch Range (Min.) 0.50mm

    Working Spring Force 22.0gf@0.40mm

    Temperature -40~125℃
  • MORE

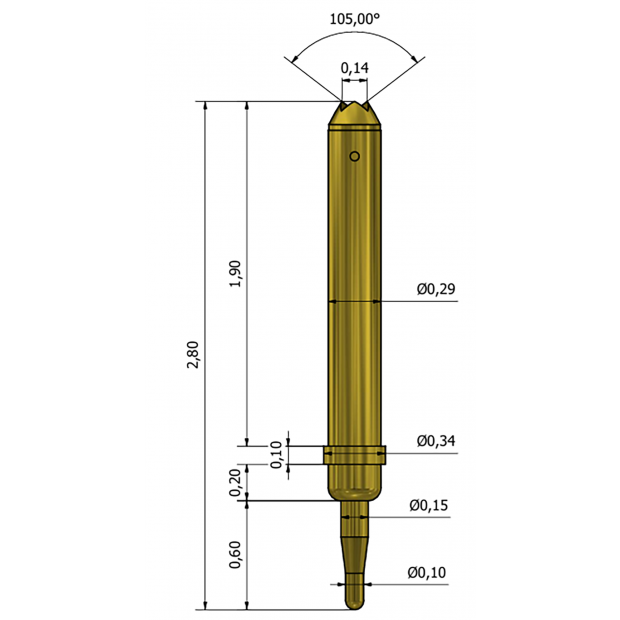

    IAM-PT00003-02

    Application BGA

    Height 2.4mm / 2.8mm (Test / Rest)

    Pitch Range (Min.) 0.50mm

    Working Spring Force 22.0gf@0.40mm

    Temperature -40~125℃
  • MORE

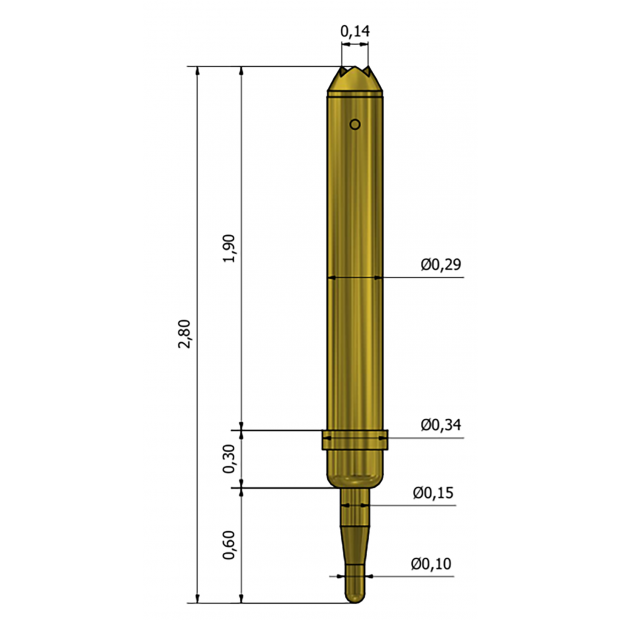

    IAM-PT00003-01

    Application BGA

    Height 2.4mm / 2.8mm (Test / Rest)

    Working Spring Force 23.0gf@0.40mm

    Recommended Travel 0.4mm

    Temperature -45~125℃
  • MORE

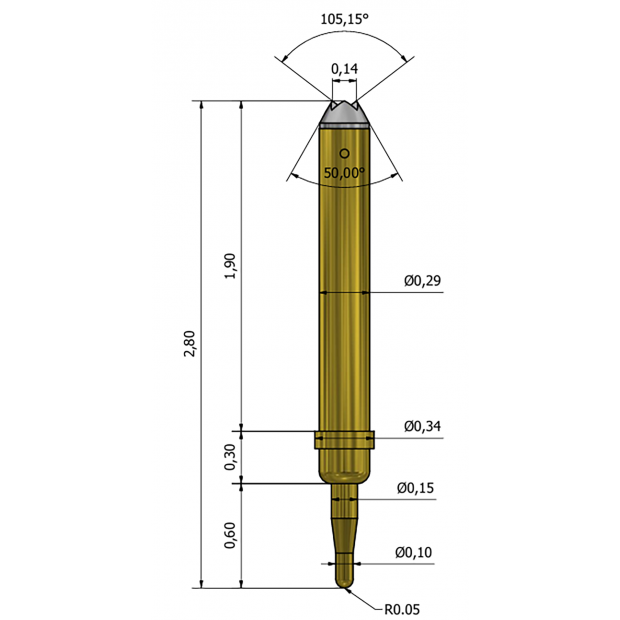

    IAM-PT00003-00

    Application BGA

    Height 2.4mm / 2.8mm (Test / Rest)

    Pitch Range (Min.) 0.50mm

    Working Spring Force 22.0gf@0.40mm

    Temperature -40~125℃
  • MORE

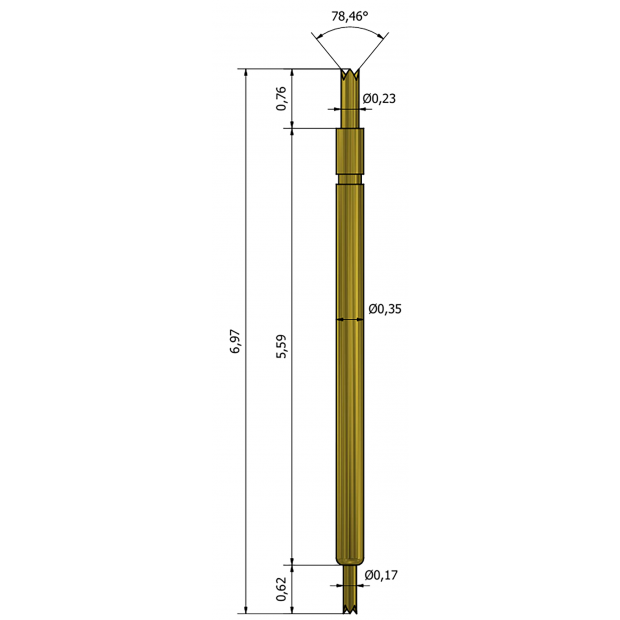

    IAM-PT00002-00

    Application BGA

    Height 6.47mm / 6.97mm (Test / Rest)

    Pitch Range (Min.) 0.5mm

    Working Spring Force 28gf@0.50mm

    Recommended Travel 0.50mm

    Temperature -40~125℃

    Tip (device side / PCB side) Crown / Crown
