Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
one two four
  • MORE

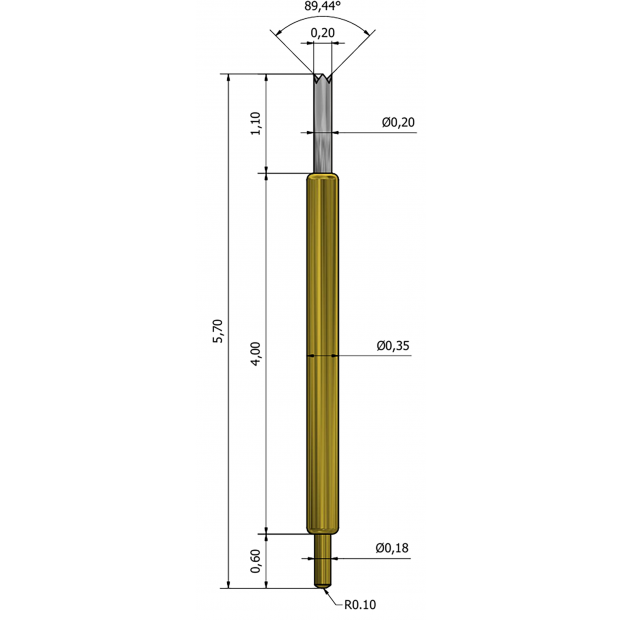

    IAM-PT00045-00

    Application QFN / QFP / LGA / BGA

    Height 5.05mm / 5.7mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 30gf@0.65mm

    Recommended Travel 0.7mm

    Temperature -55~150℃

    Tip (device / PCB) Cone / Cone
  • MORE

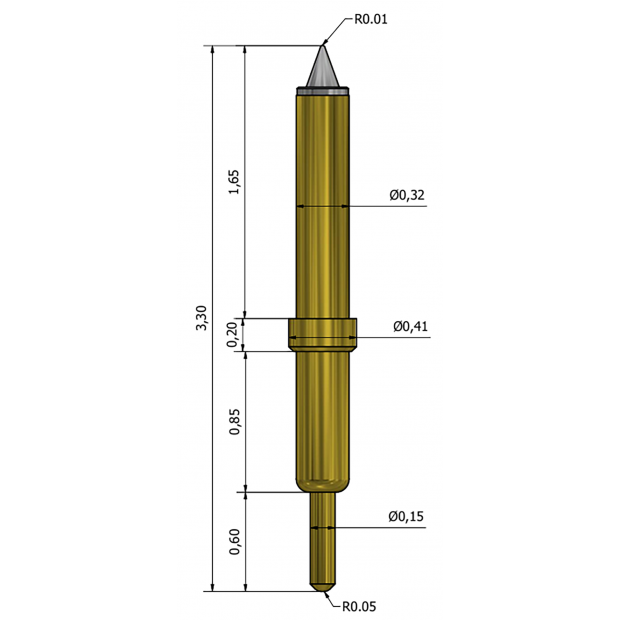

    IAM-PT00044-01

    Application QFN / QFP

    Height 2.92mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 37gf@0.38mm

    Recommended Travel 0.38mm

    Temperature -40~120℃

    Tip (device / PCB) Cone / Cone
  • MORE

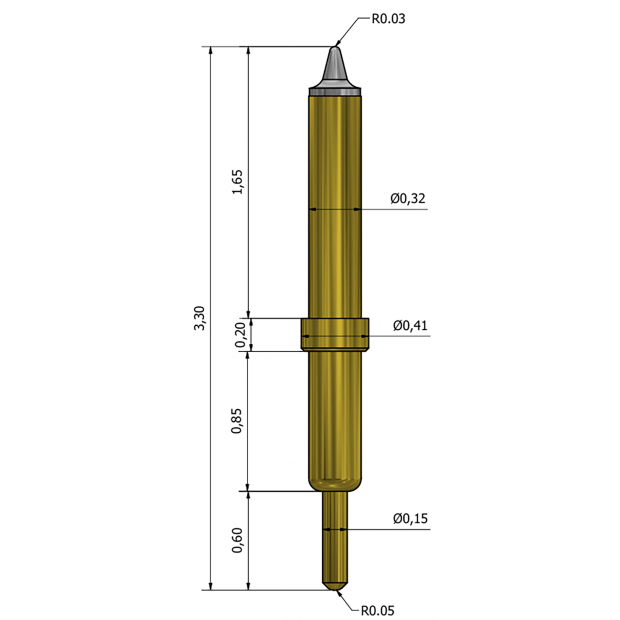

    IAM-PT00044-00

    Application QFN / QFP

    Height 2.92mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 37gf@0.38mm

    Recommended Travel 0.38mm

    Temperature -40~120℃
  • MORE

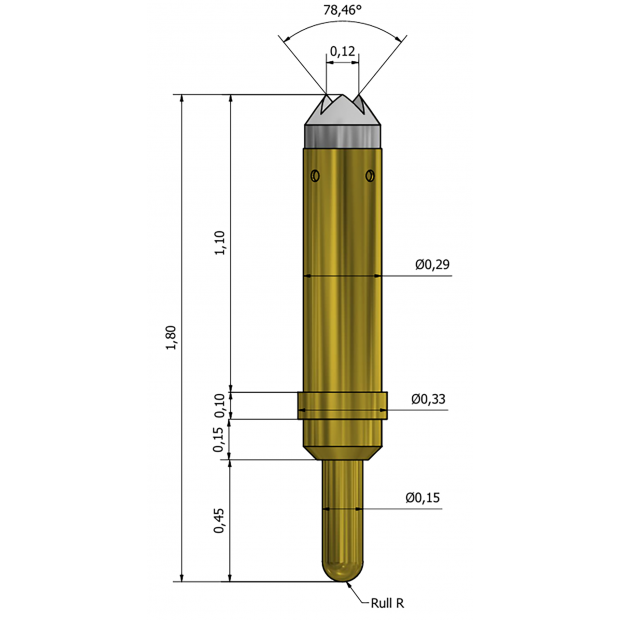

    IAM-PT00043-03

    Application BGA

    Height 1.5mm / 1.8mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 19gf@0.3mm

    Recommended Travel 0.3mm

    Temperature -50~125℃

    Tip (device / PCB) Crown / Cone
  • MORE

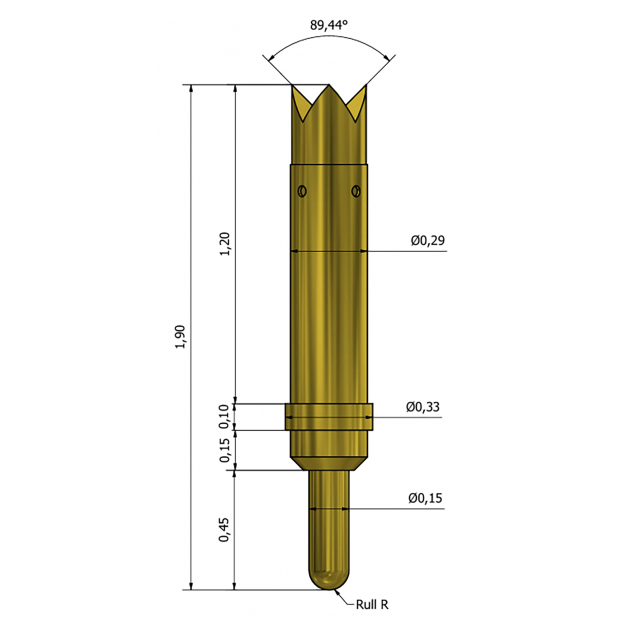

    IAM-PT00043-02

    Application BGA

    Height 1.5mm / 1.8mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 19gf@0.3mm

    Recommended Travel 0.3mm

    Temperature -50~125℃

    Tip (device / PCB) Crown / Cone
  • MORE

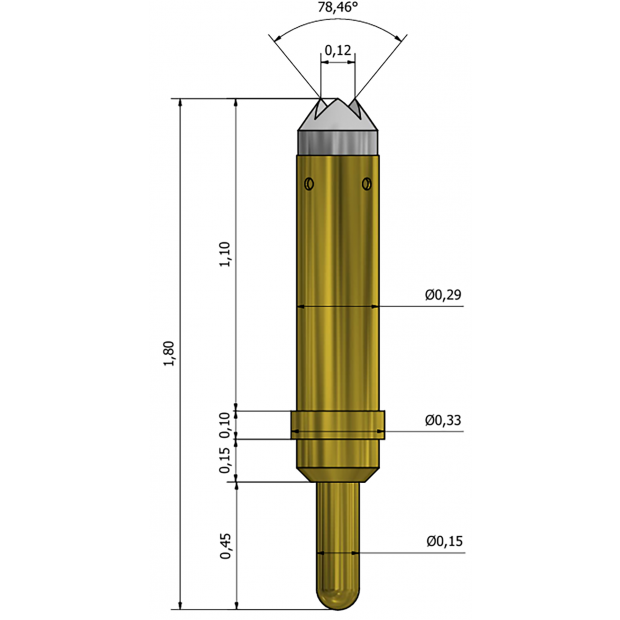

    IAM-PT00043-00

    Application BGA

    Height 1.5mm / 1.8mm (Test / Rest)

    Working Spring Force 19gf@0.3mm

    Temperature -50~125℃

    Tip (device / PCB) Crown / Cone
  • MORE

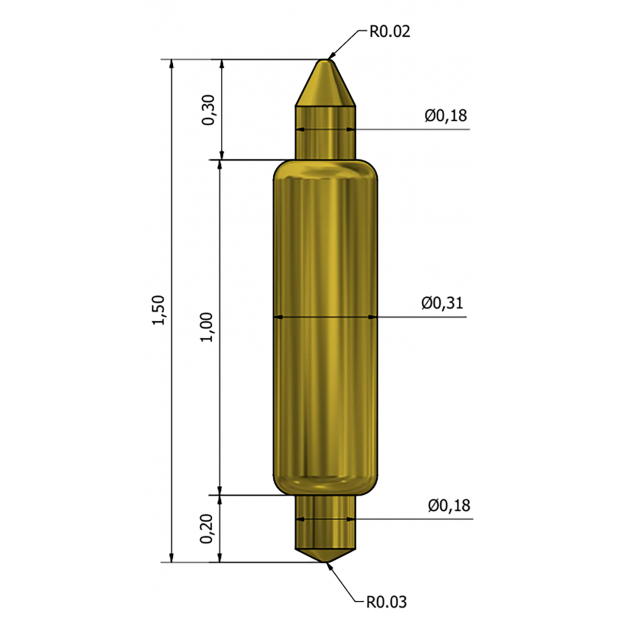

    IAM-PT00042-02

    Application QFN / QFP / LGA

    Height 1.3mm / 1.5mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 12.5gf@0.2mm

    Recommended Travel 0.2mm

    Temperature -40~125℃
  • MORE

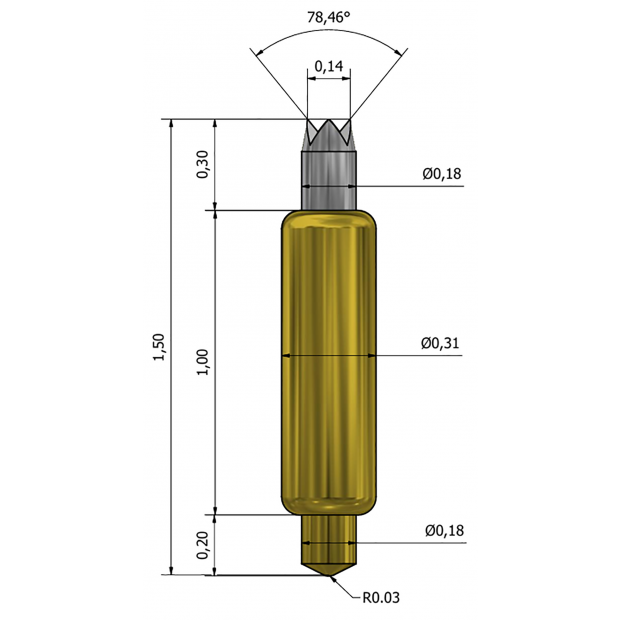

    IAM-PT00042-01

    Application QFN / QFP / LGA / BGA

    Height 1.3mm / 1.5mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 12.5gf@0.2mm

    Recommended Travel 0.2mm

    Temperature -4~125℃
  • MORE

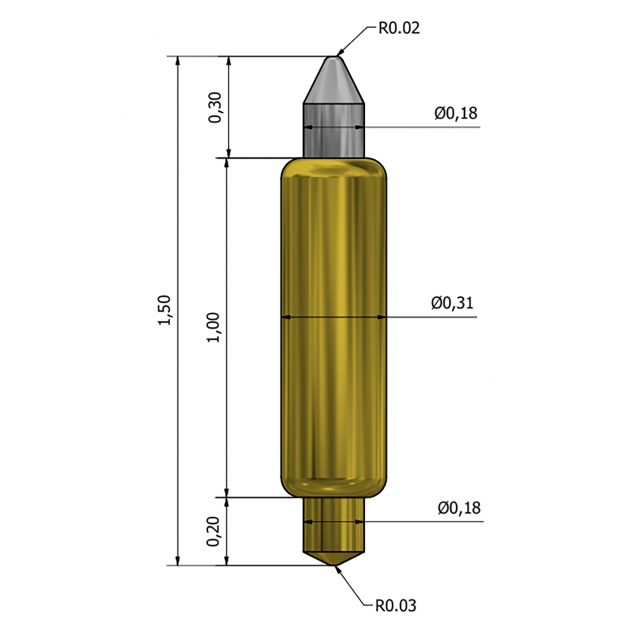

    IAM-PT00042-00

    Application QFN / QFP / LGA

    Height 1.3mm / 1.5mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 12.5gf@0.2mm

    Recommended Travel 0.2mm

    Temperature -40~125℃
  • MORE

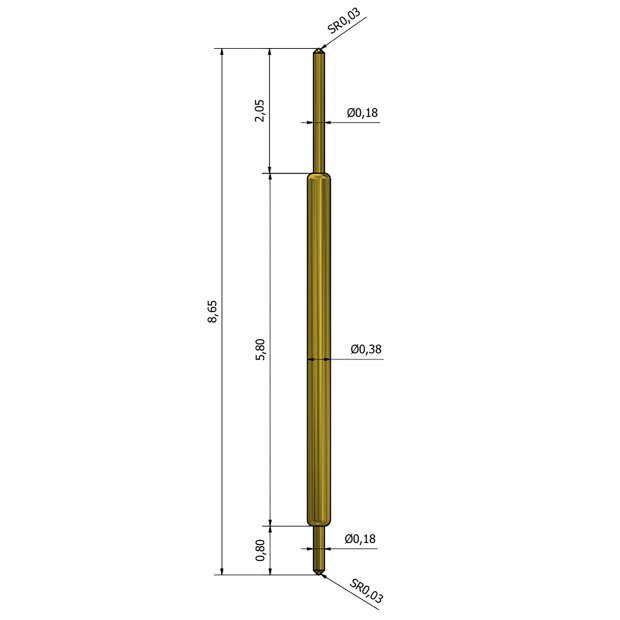

    IAM-PT00040-00

    Application QFN / QFP / LGA

    Height 7.65mm / 8.65mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 30gf@1.0mm

    Recommended Travel 1.0mm

    Max Travel 1.2mm

    Temperature -40~120℃

    Tip (device / PCB) Cone / Cone
  • MORE

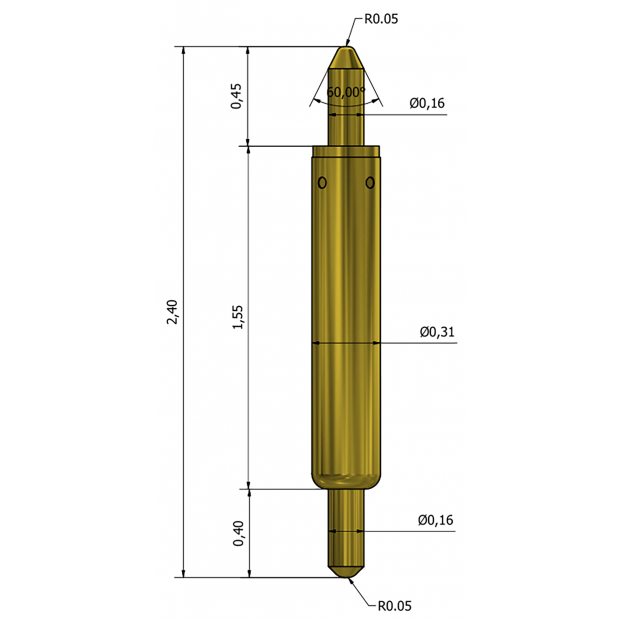

    IAM-PT00039-08

    Application QFN / LGA

    Height 2.1mm / 2.4mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 27gf@0.3mm

    Recommended Travel 0.3mm

    Temperature -50~125℃

    Tip (device / PCB) Cone / Cone
  • MORE

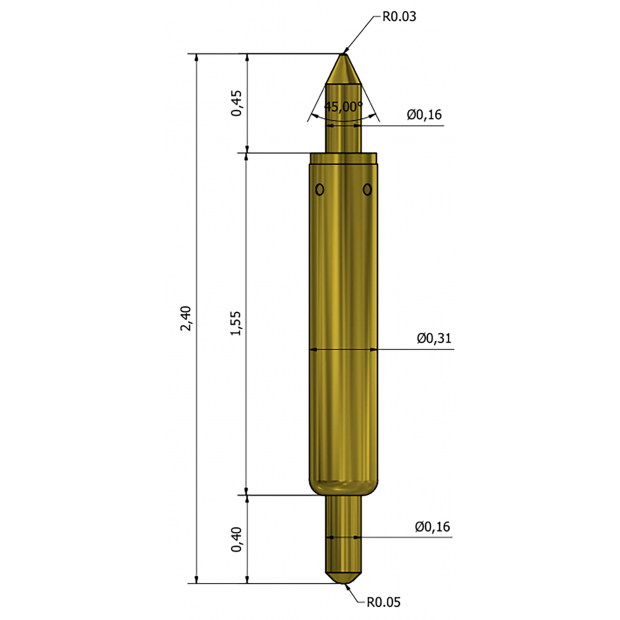

    IAM-PT00039-07

    Application QFN / LGA

    Height 2.1mm / 2.4mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 30gf@0.3mm

    Recommended Travel 0.3mm

    Temperature -50~125℃

    Tip (device / PCB) Cone / Cone
