Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
one two four
  • MORE

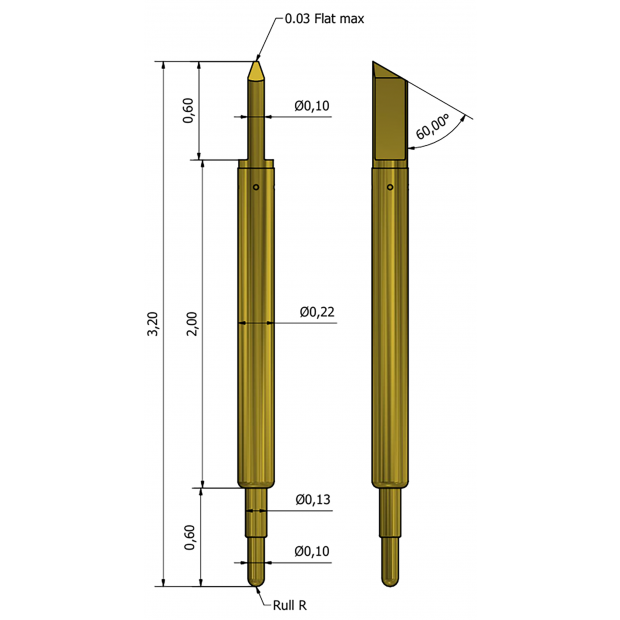

    IAM-PT00051-00

    Application GFN / GFP / LGA

    Height 2.8mm / 3.2mm (Test / Rest)

    Pitch Range (MIN.) 0.35mm

    Working Spring Force 20gf@0.4mm

    Recommended Travel 0.4mm

    MAX. Travel : 0.5mm

    Temperature -50~175℃

    Tip (device / PCB) Kelvin Blade / Cone
  • MORE

    IAM-PT00050-01

    Application QFN / LGA / BGA

    Height 3.4mm / 3.0mm (Test / Rest)

    Pitch Range (MIN.) 0.35mm

    Working Spring Force 20gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -45~125℃

    Tip (device / PCB) Crown / Cone
  • MORE

    IAM-PT00050-00

    Application QFN / LGA / BGA

    Height 3.4mm / 3.0mm (Test / Rest)

    Pitch Range (MIN.) 0.35mm

    Working Spring Force 20gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -45~125℃

    Tip (device / PCB) Crown / Cone
  • MORE

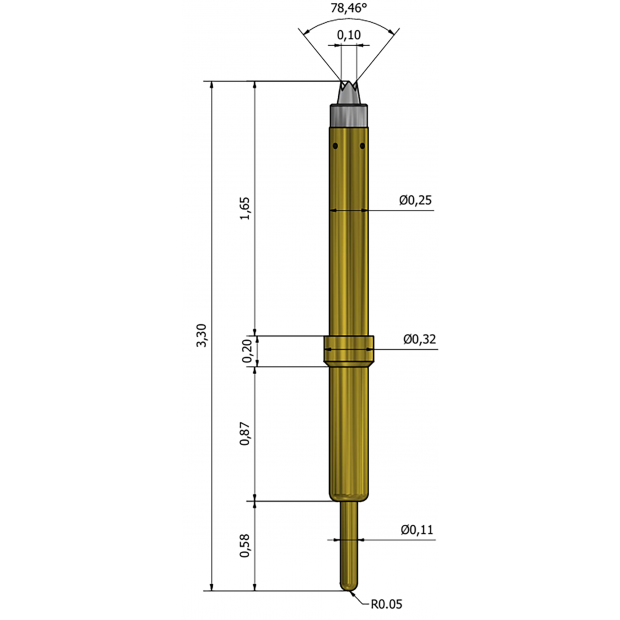

    IAM-PT00049-02

    Application

    Height 2.92mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 17gf@0.38mm

    Temperature -55~155℃

    Tip (device / PCB) Crown / Cone
  • MORE

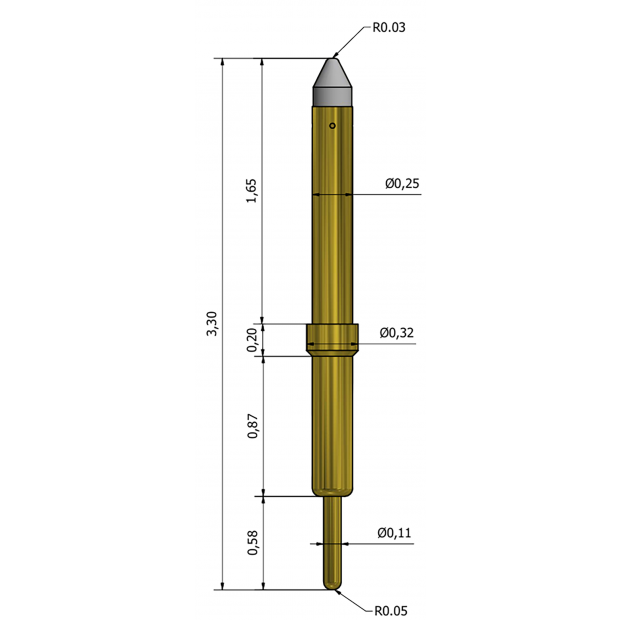

    IAM-PT00049-01

    Application

    Height 2.92mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 17gf@0.38mm

    Temperature -55~155℃
  • MORE

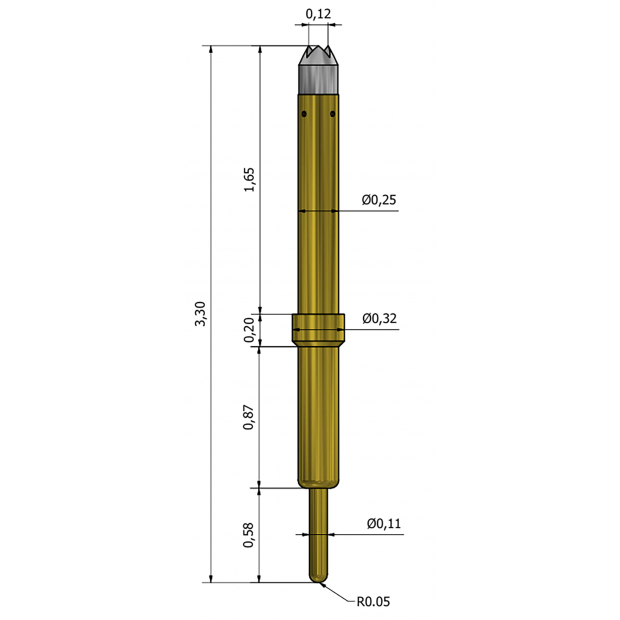

    IAM-PT00049-00

    Application BGA

    Height 2.92mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 17gf@0.38mm

    Recommended Travel 0.38mm

    Full Travel 0.51mm

    Temperature -55~155℃

    Tip (device / PCB) Crown / Cone
  • MORE

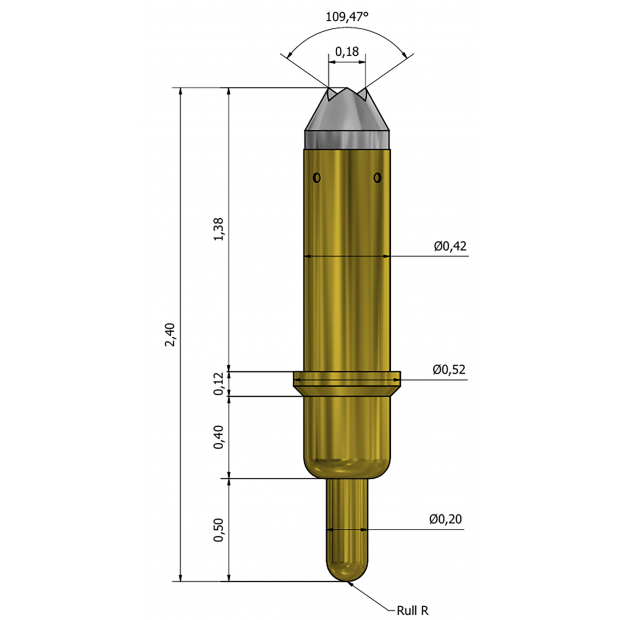

    IAM-PT00048-02

    Application BGA

    Height 2.5mm / 2.4mm (Test / Rest)

    Pitch Range (MIN.) 0.8mm

    Working Spring Force 30gf@0.35mm

    Recommended Travel 0.35mm

    Full Travel 0.4mm

    Temperature -40~120℃

    Tip (device / PCB) Crown / Cone
  • MORE

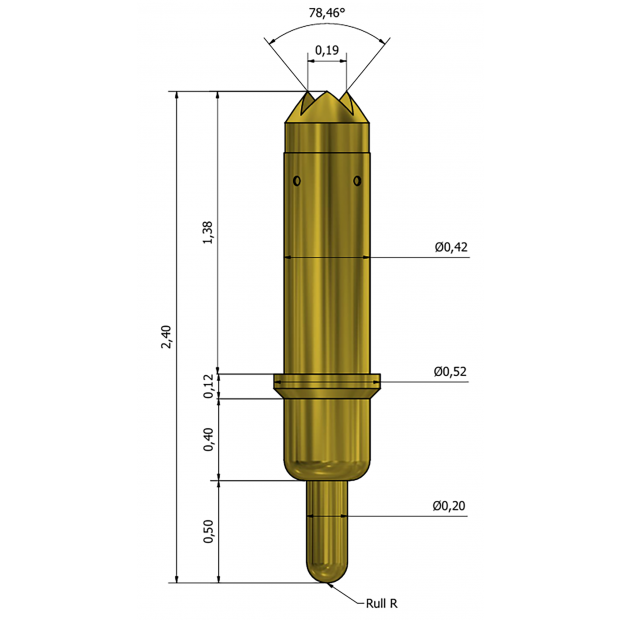

    IAM-PT00048-01

    Application BGA

    Height 2.05mm / 2.4mm (Test / Rest)

    Pitch Range (MIN.) 0.8mm

    Working Spring Force 30gf@0.35mm

    Recommended Travel 0.35mm

    Full Travel 0.4mm

    Temperature -40~120℃

    Tip (device / PCB) Crown / Cone
  • MORE

    IAM-PT00048-00

    Application BGA

    Height 2.05mm / 2.4mm (Test / Rest)

    Pitch Range (MIN.) 0.8mm

    Working Spring Force 30gf@0.35mm

    Recommended Travel 0.35mm

    Full Travel 0.4mm

    Temperature -40~120℃

    Tip (device / PCB) Crown / Cone
  • MORE

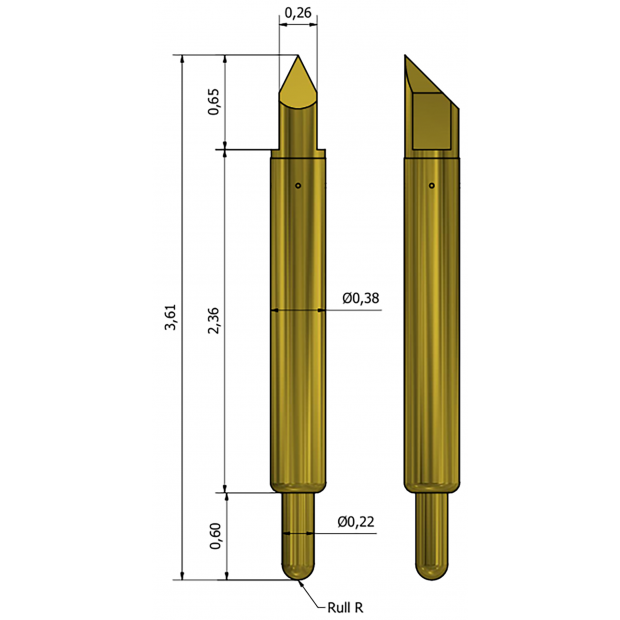

    IAM-PT00047-01

    Application QFN / QFP / LGA

    Height 3.26mm / 3.61mm (Test / Rest)

    Pitch Range (MIN.) 0.35mm

    Working Spring Force 33gf@0.35mm

    Recommended Travel 0.35mm

    Temperature -55~155℃

    Tip (device / PCB) Kelvin Blade / Cone
  • MORE

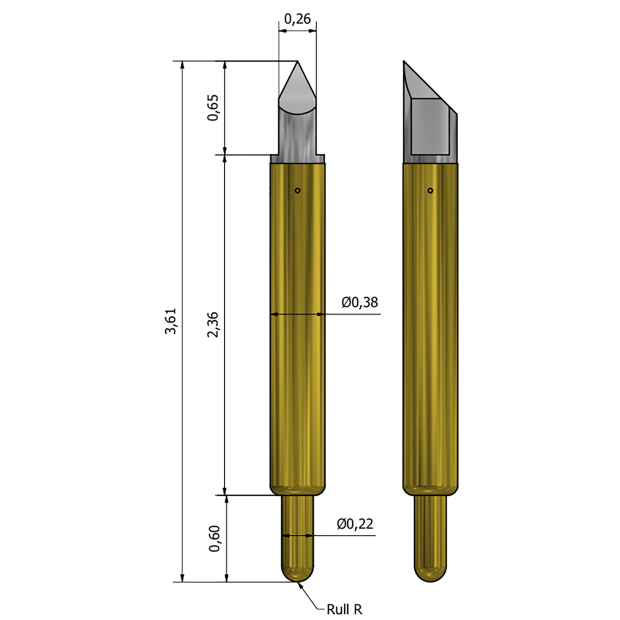

    IAM-PT00047-00

    Application QFN / QFP / LGA

    Height 3.26mm / 3.61mm (Test / Rest)

    Pitch Range (MIN.) 0.35mm

    Working Spring Force 33gf@0.35mm

    Recommended Travel 0.35mm

    Temperature -55~155℃

    Tip (device / PCB) Kelvin Blade / Cone
  • MORE

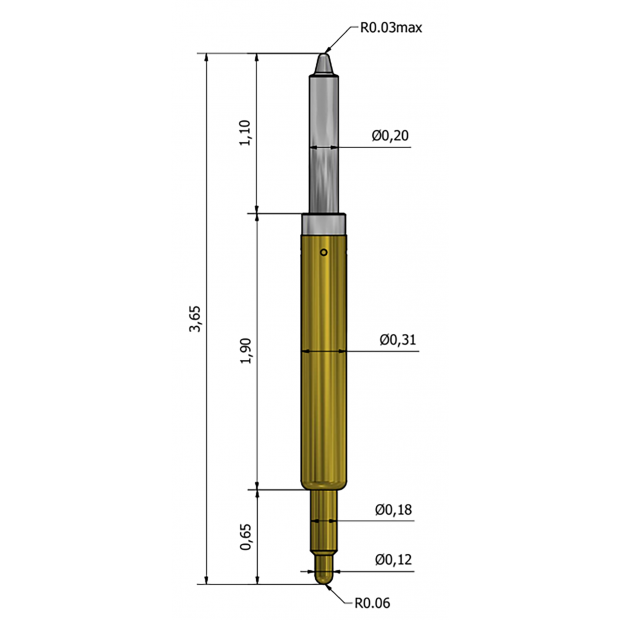

    IAM-PT00046-00

    Application QFN / QFP / LGA

    Height 3.25mm / 3.65mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 25gf@0.4mm

    Recommended Travel 0.4mm

    Temperature -40~120℃

    Tip (device / PCB) Cone / Cone
