Mechanical
Application

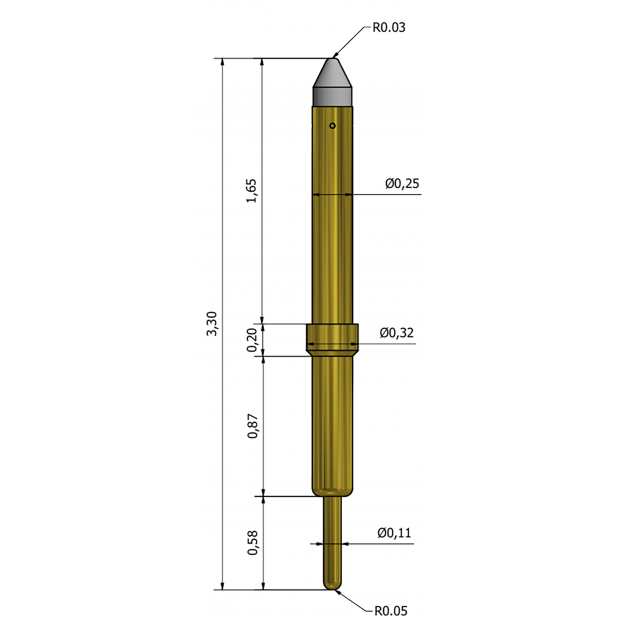

Height 2.92mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 17gf@0.38mm
Temperature -55~155℃
ElectricalHeight 2.92mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 17gf@0.38mm
Temperature -55~155℃
Contact resistance < 80 mΩ
Current carrying capability 2A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : NAS604 / Au plated
Bottom : BeCu / Au plated
