Mechanical
Application QFN / QFP / LGA

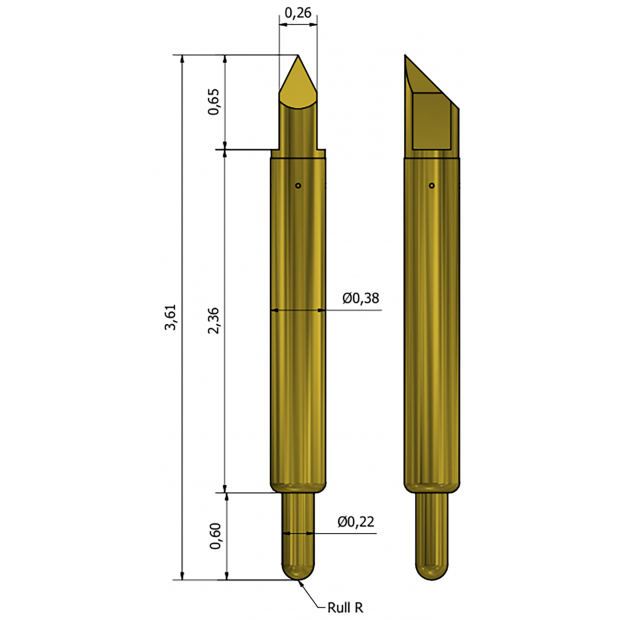

Height 3.26mm / 3.61mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 33gf@0.35mm
Recommended Travel 0.35mm
Temperature -55~155℃
Tip (device / PCB) Kelvin / Cone
ElectricalHeight 3.26mm / 3.61mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 33gf@0.35mm
Recommended Travel 0.35mm
Temperature -55~155℃
Tip (device / PCB) Kelvin / Cone
Contact resistance < 80 mΩ
Current carrying capability 3A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy / Au plated
Barrel : PBT / Au plated
Spring : NSA604 / Au plated
Bottom : BeCu / Au plated
