Mechanical
Application BGA

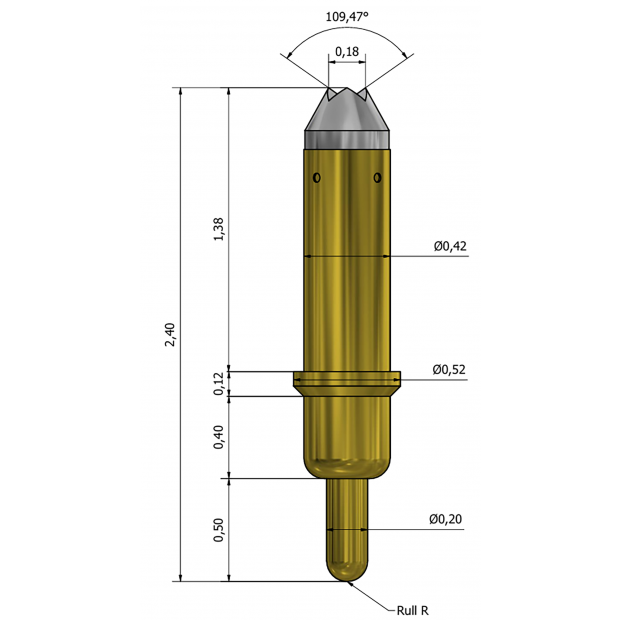

Height 2.05mm / 2.4mm (Test / Rest)
Pitch Range (MIN.)0.8mm
Working Spring Force 30gf@0.35mm
Recommended Travel 0.35mm
Full Travel 0.4mm
Temperature -40~120℃
Tip (device / PCB) Crown / Cone
ElectricalHeight 2.05mm / 2.4mm (Test / Rest)
Pitch Range (MIN.)0.8mm
Working Spring Force 30gf@0.35mm
Recommended Travel 0.35mm
Full Travel 0.4mm
Temperature -40~120℃
Tip (device / PCB) Crown / Cone
Contact resistance < 50 mΩ
Current carrying capability 3A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
