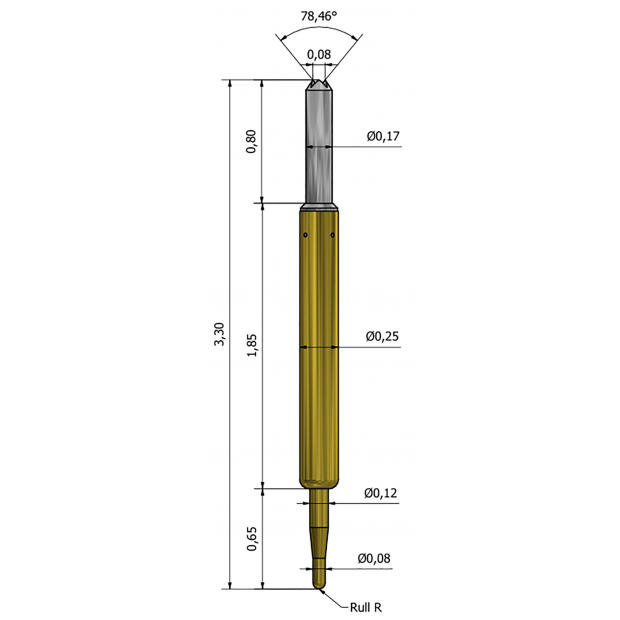

Mechanical
Application QFN / LGA / BGA
Height 3.4mm / 3.0mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.4mm
Temperature -45~125℃
Tip (device / PCB) Crown/ Cone
ElectricalHeight 3.4mm / 3.0mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.4mm
Temperature -45~125℃
Tip (device / PCB) Crown/ Cone
Contact resistance < 70 mΩ
Current carrying capability 2A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : SK4 / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
