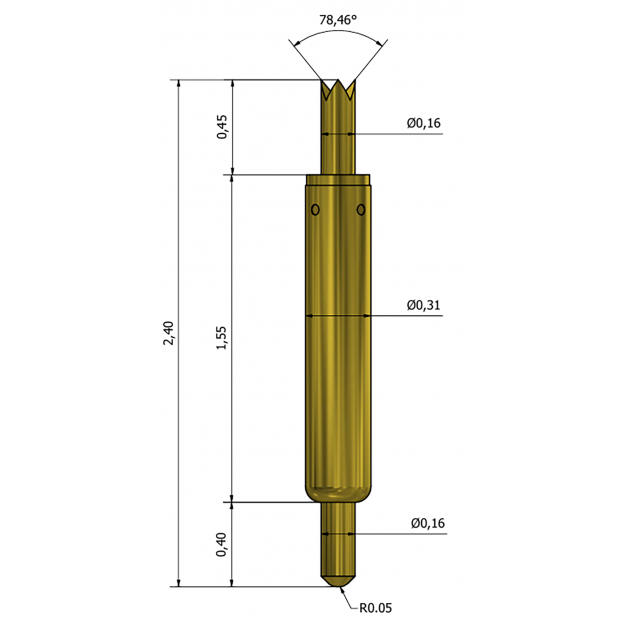

IAM-PT00039-06
Application BGA
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 30gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device / PCB) Crown / Radius
IAM-PT00039-06
-
MORE

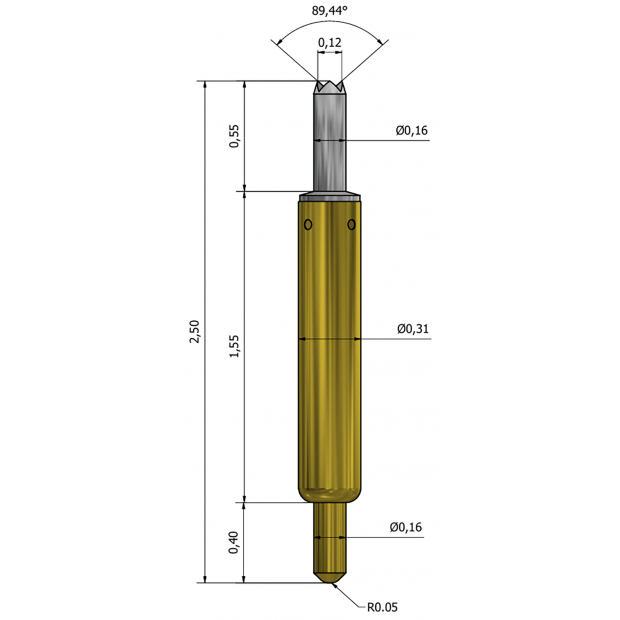

IAM-PT00039-04
Application QFN / LGA
Height 2.2mm / 2.5mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 30gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device / PCB) Cone / Cone
IAM-PT00039-04
-
MORE

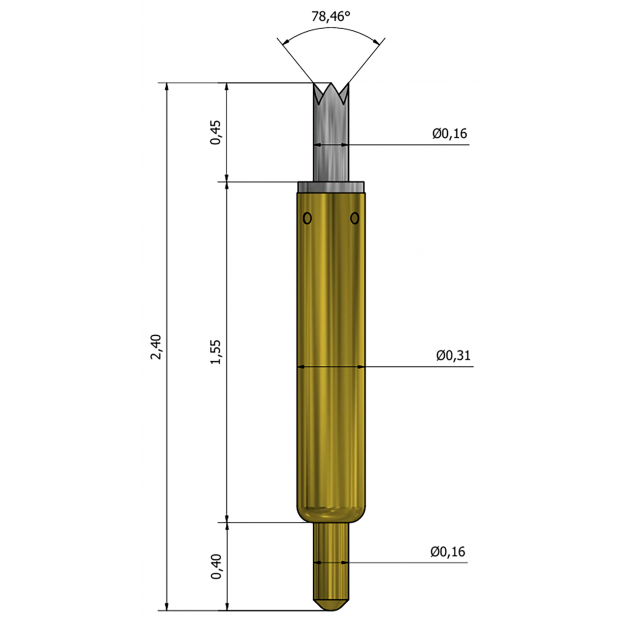

IAM-PT00039-03
Application BGA
Height 2.1mm / 2.4mm (Test / Rest)
Working Spring Force 30gf@0.3mm
Temperature -50~125℃
Tip (device / PCB) Crown / Cone
IAM-PT00039-03
-
MORE

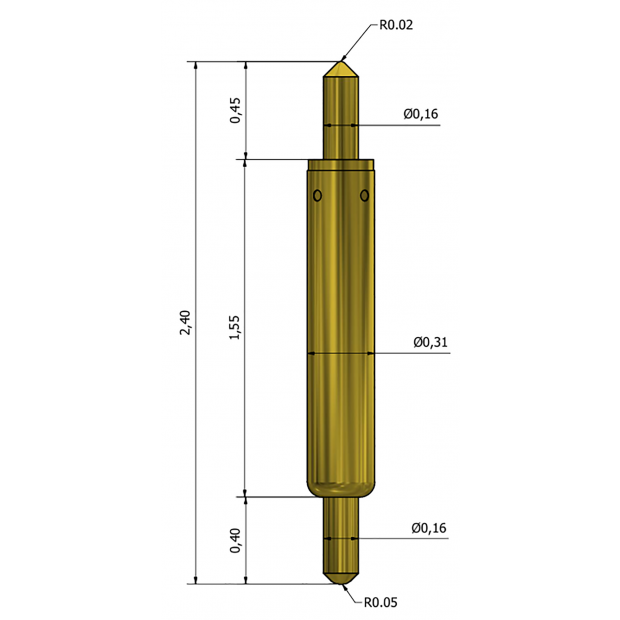

IAM-PT00039-02
Application QFN / LGA
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 30gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device / PCB) Cone / Cone
IAM-PT00039-02
-
MORE
IAM-PT00039-01
Application QFN / LGA
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 30gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device / PCB) Cone / Cone
IAM-PT00039-01
-
MORE

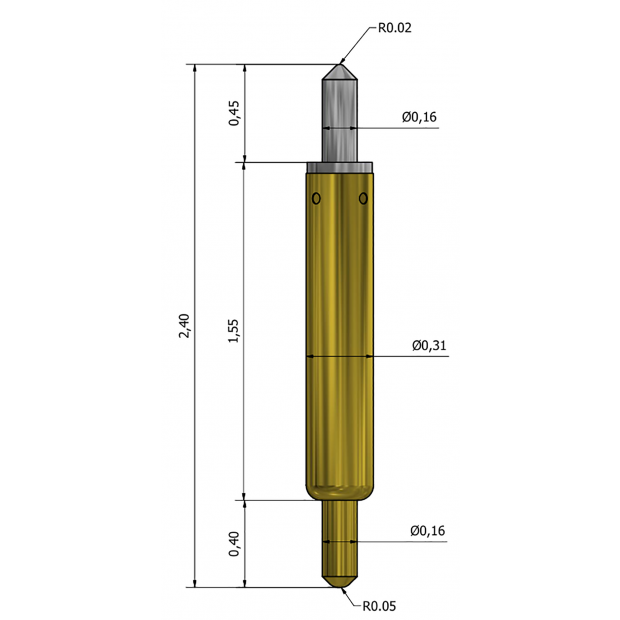

IAM-PT00039-00
Application QFN / LGA
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 30gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device / PCB) Cone / Cone
IAM-PT00039-00
-
MORE

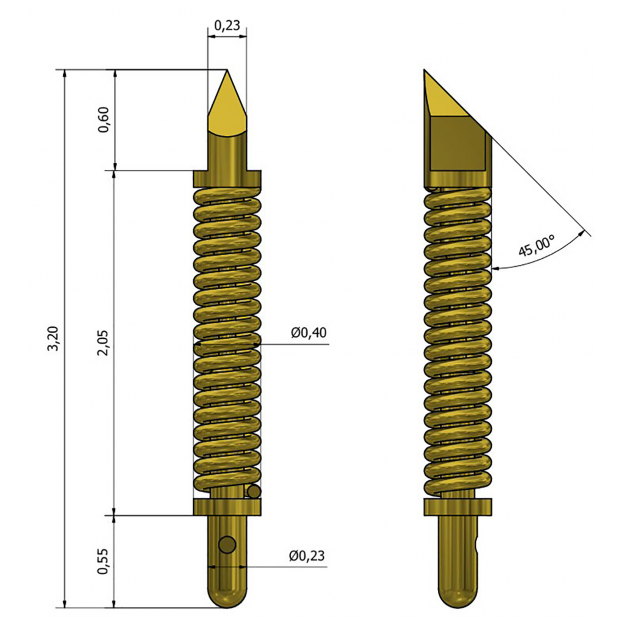

IAM-PT00038-01
Application QFN / QFP / LGA
Height 2.7mm / 3.2mm (Test / Rest)
Working Spring Force 30gf@0.5mm
Temperature -55~150℃
Tip (device / PCB) Blade / Cone
IAM-PT00038-01
-
MORE

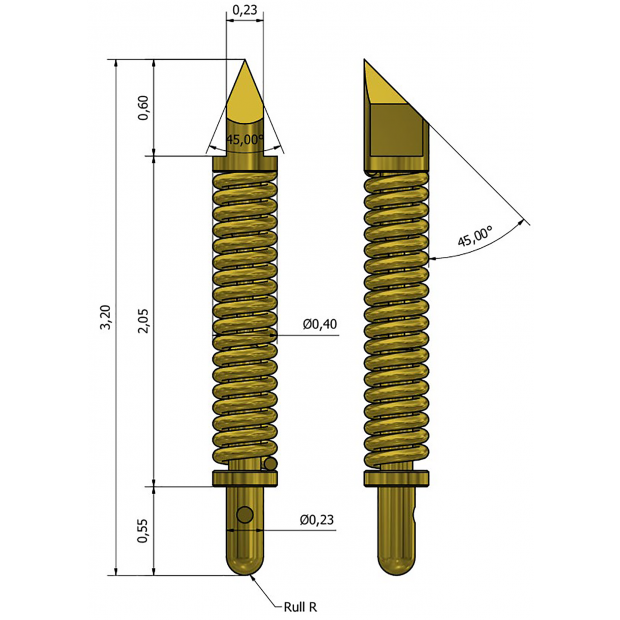

IAM-PT00038-00
Application QFN / QFP / LGA
Height 2.7mm / 3.2mm (Test / Rest)
Pitch Range (MIN.)0.5mm
Working Spring Force 30gf@0.5mm
Recommended Travel 0.5mm
Temperature -55~150℃
Tip (device / PCB) Blade TIP / Cone
IAM-PT00038-00
-
MORE

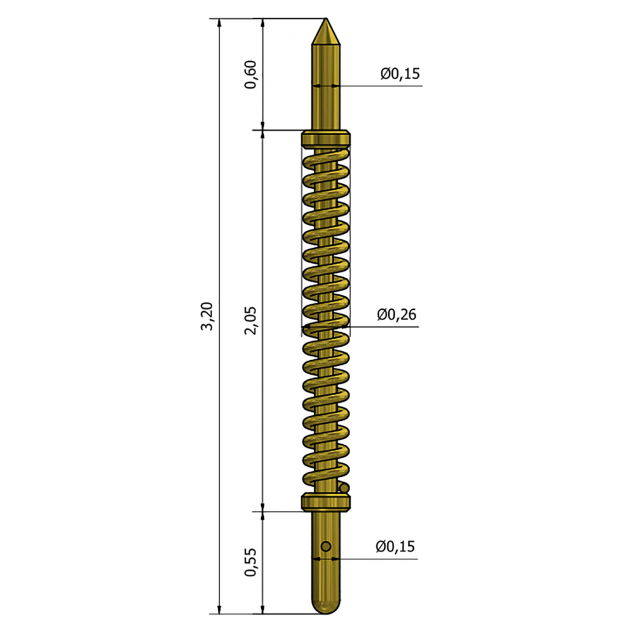

IAM-PT00037-02
Application QFN / QFP / LGA
Height 2.7mm / 3.2mm (Test / Rest)
Working Spring Force 30gf@0.5mm
Temperature -50~155℃
Tip (device / PCB) Cone / Cone
IAM-PT00037-02
-
MORE
IAM-PT00037-02
Application QFN / QFP / LGA
Height 2.7mm / 3.2mm (Test / Rest)
Working Spring Force 30gf@0.5mm
Temperature -50~155℃
Tip (device / PCB) Cone / Cone
IAM-PT00037-02
-
MORE

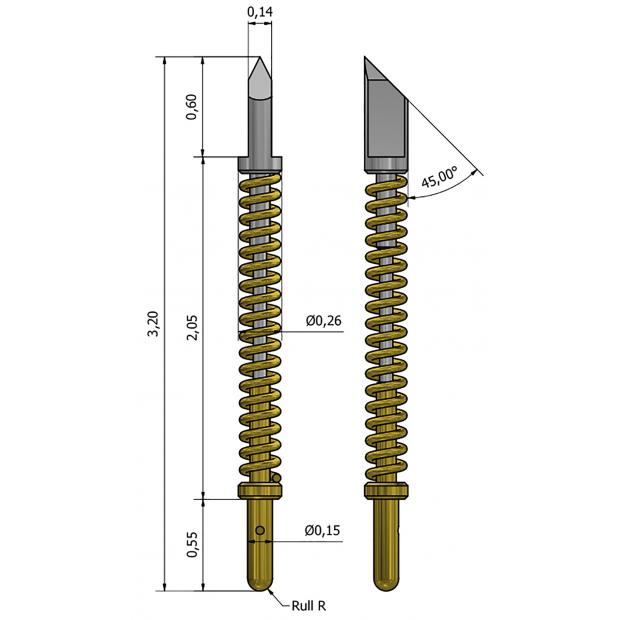

IAM-PT00037-01
Application QFN / QFP / LGA
Height 2.7mm / 3.2mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 30gf@0.5mm
Recommended Travel 0.5mm
Temperature -55~150℃
Tip (device / PCB) Blade TIP / Cone
IAM-PT00037-01
-
MORE

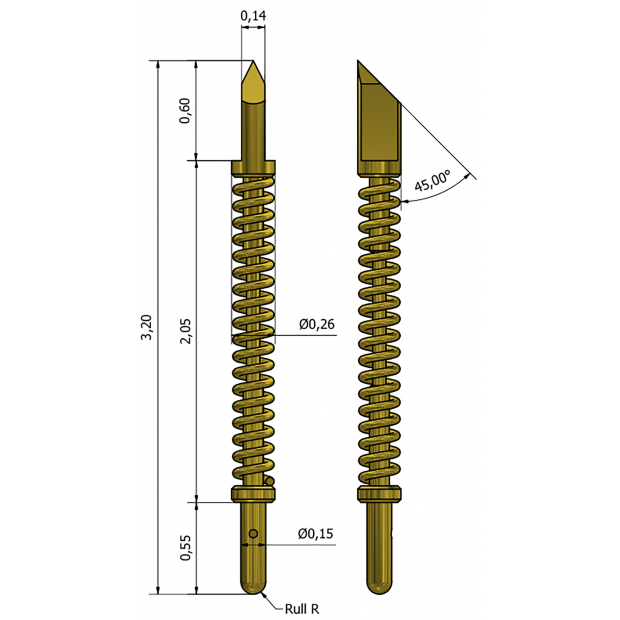

IAM-PT00037-00
Application QFN / QFP / LGA
Height 2.7mm / 3.2mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 30gf@0.5mm
Recommended Travel 0.5mm
Temperature -55~150℃
Tip (device / PCB) Blade TIP / Cone
IAM-PT00037-00
