Mechanical
Application QFN / QFP / LGA

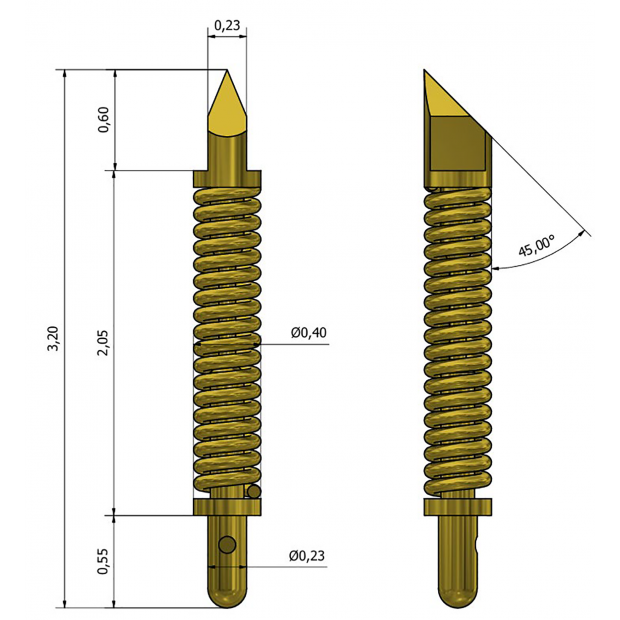

Height 2.7mm / 3.2mm (Test / Rest)
Working Spring Force 30gf@0.5mm
Temperature -55~150℃
Tip (device / PCB) Blade / Cone
ElectricalHeight 2.7mm / 3.2mm (Test / Rest)
Working Spring Force 30gf@0.5mm
Temperature -55~150℃
Tip (device / PCB) Blade / Cone
Contact resistance < 80 mΩ
Current carrying capability 3A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : SK4 / Au plated
Plunger-bottom : BeCu / Au plated
Spring : NAS604 / Au plated
