Mechanical
Application QFN / LGA

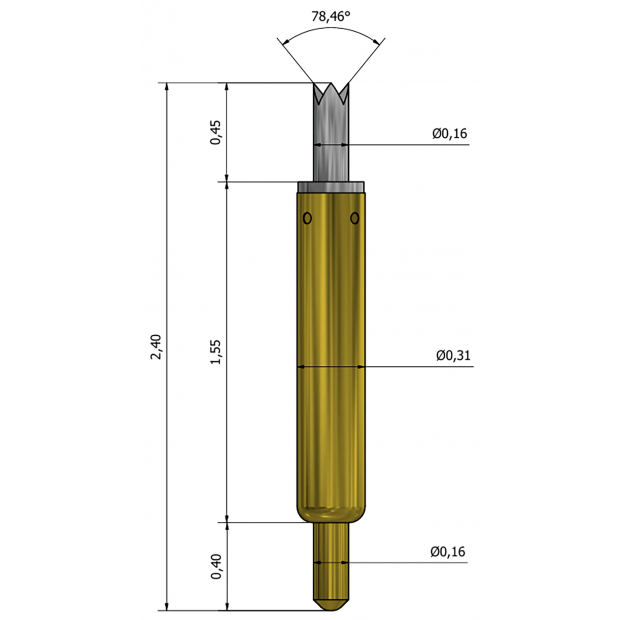

Height 2.1mm / 2.4mm (Test / Rest)
Working Spring Force 30gf@0.3mm
Temperature -50~125℃
Tip (device / PCB) Crown/ Cone
ElectricalHeight 2.1mm / 2.4mm (Test / Rest)
Working Spring Force 30gf@0.3mm
Temperature -50~125℃
Tip (device / PCB) Crown/ Cone
Contact resistance < 80 mΩ
Current carrying capability 2.5A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
