Mechanical
Application QFN / QFP / LGA / BGA

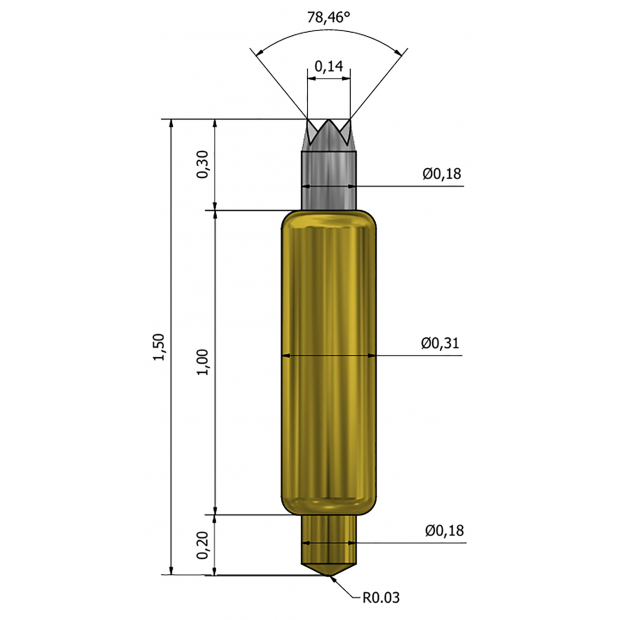

Height 1.3mm / 1.5mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 12.5gf@0.2mm
Recommended Travel 0.2mm
Temperature -40~125℃
ElectricalHeight 1.3mm / 1.5mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 12.5gf@0.2mm
Recommended Travel 0.2mm
Temperature -40~125℃
Contact resistance < 80 mΩ
Current carrying capability 2A continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
