  1. Pogo Pin / 彈簧針

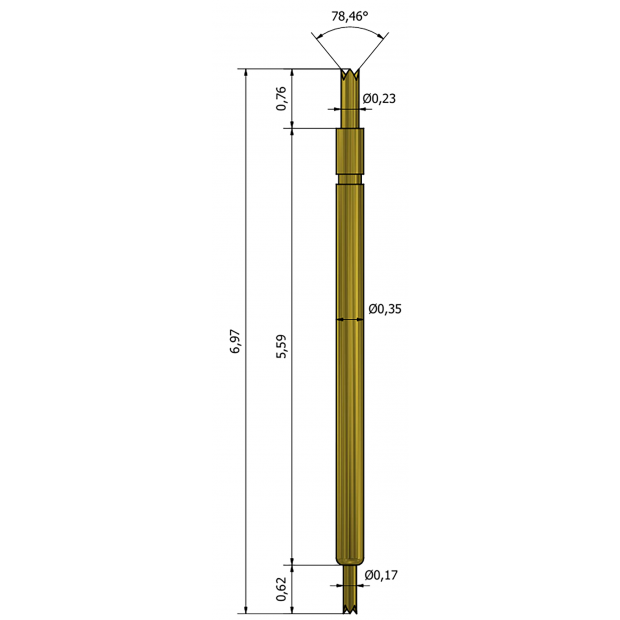

IAM-PT00002-00

IAM-PT00002-00

Application BGA

Height 6.47mm / 6.97mm (Test / Rest)

Pitch Range (Min.) 0.5mm

Working Spring Force 28gf@0.50mm

Recommended Travel 0.50mm

Temperature -40~125℃

Tip (device side / PCB side) Crown / Crown
/
詳細介紹
    Mechanical
    Application BGA
    Height 6.47mm / 6.97mm (Test / Rest)
    Pitch Range (Min.) 0.5mm
    Working Spring Force 28gf@0.50mm
    Recommended Travel 0.50mm
    Temperature -40~125℃
    Tip (device / PCB) Crown / Crown

    Electrical
    Contact resistance < 80 mΩ
    Current Carrying Capability 2.0A Continuous

    Insertions
    Cycle life > 500K

    BOM (Material VS Plating)
    Plunger-top : BeCu / Au plated
    Barrel : PBT / Au plated
    Spring : SWP / Au plated
    Bottom : BeCu / Au plated
