Mechanical
Application BGA

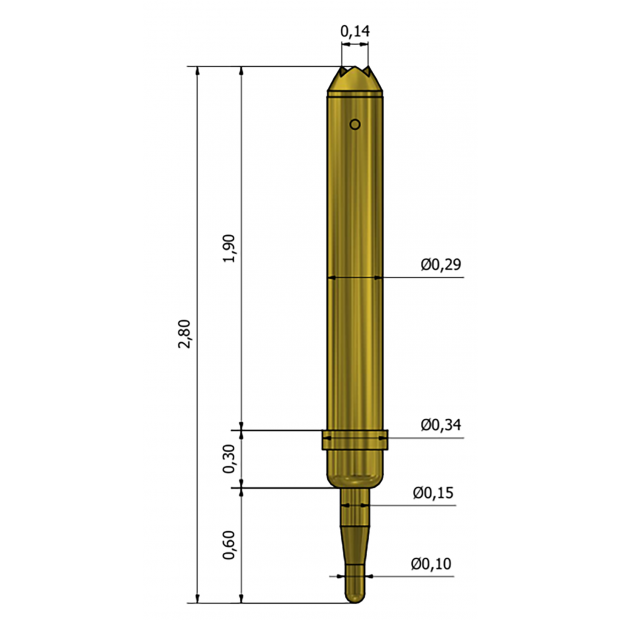

Height 2.4mm / 2.8mm (Test / Rest)
Working Spring Force 23gf@0.40mmRecommended Travel 0.40mm
Temperature -45~125℃
Electrical
Contact resistance < 80 mΩ
Current Carrying Capability 2.0A
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy / Au plated
Plunger-bottom : BeCu / Au plated
Barrel : PBT / Au plated
Spring : SWP / Au plated
