Mechanical
Application LGA / WLCSP

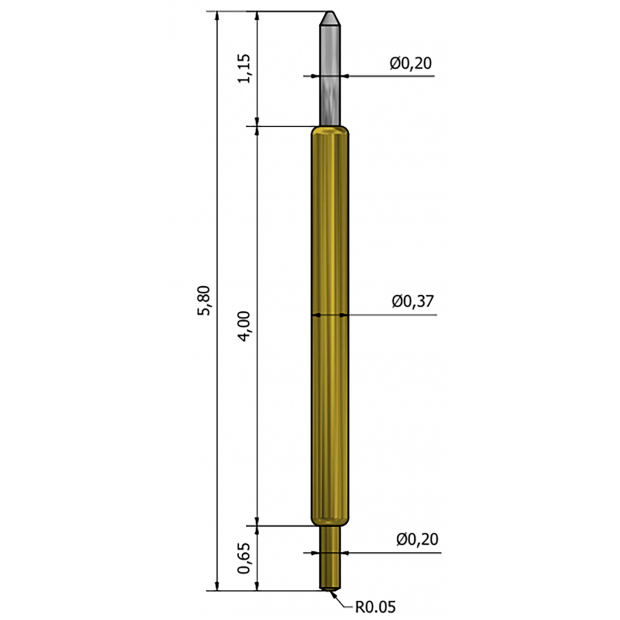

Height 5.1mm / 5.8mm (Test / Rest)
Pitch Range (Min.) 0.50mmWorking Spring Force 36.9gf@0.70mm
Recommended Travel 0.7mm
Temperature -45~125℃
Tip (device / PCB) Cone / Cone
Electrical
Contact resistance < 120 mΩ
Current Carrying Capability 2.0A
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
