Mechanical
Application BGA

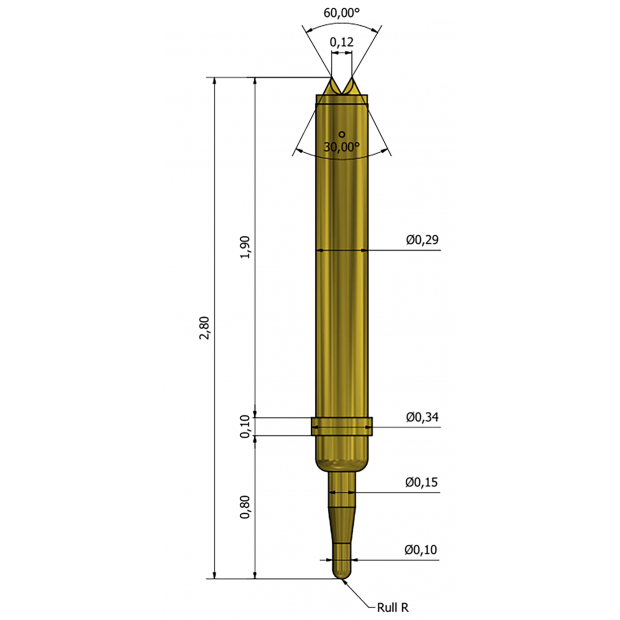

Height 2.4mm / 2.8mm (Test / Rest)
Pitch Range (Min.) 0.50mmWorking Spring Force 32gf@0.40mm
Temperature -40~125℃
Electrical
Current Carrying Capability 2.0A
Self-inductance : 0.79nH
Parasitic capacitance : 0.26pF
DC Resistance : <60 mΩ (Average)
Bandwidth @-1dB : 20GHz
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy / Au plated (硬金)
Plunger-bottom : BeCu / Au plated
Barrel : PBT / Au plated
Spring : SWP / Au plated
