Mechanical
Application QFN / QFP / LGA

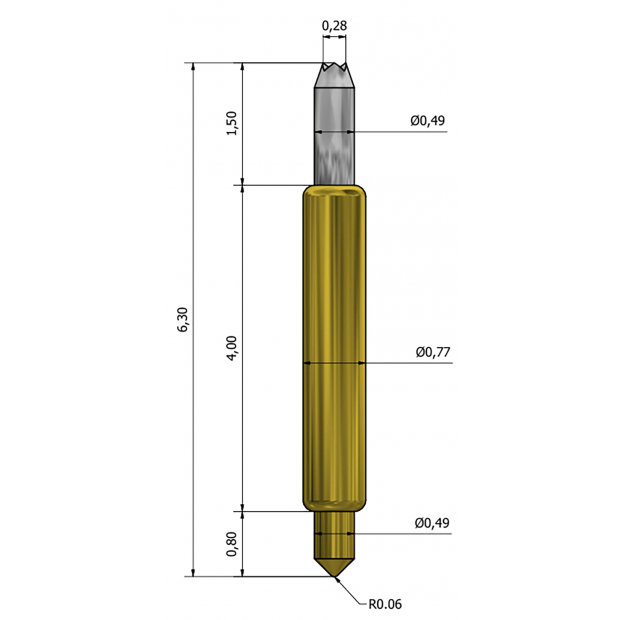

Height 5.5mm / 6.3mm (Test / Rest)
Pitch Range (Min.) 0.85mmWorking Spring Force 30gf@0.80mm
Recommended Travel 1.0mm
Temperature -55~150℃
Tip (device / PCB) Cone / Cone
Electrical
Contact resistance < 150 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
