Mechanical
Application LGA / WLCSP

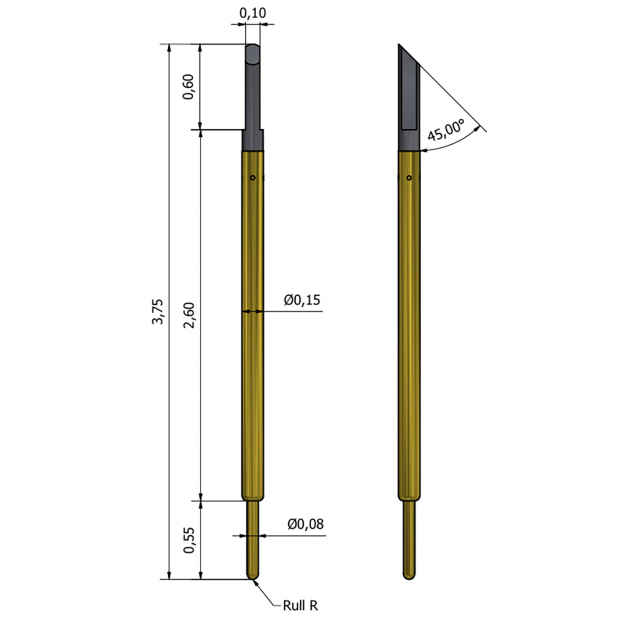

Height 3.4mm / 3.75mm (Test / Rest)
Pitch Range (Min.) 0.2mmWorking Spring Force 13.6gf@0.35mm
Recommended Travel 0.35mm
Temperature -55~125℃
Tip (device / PCB) Sarp Kelvin end / Cone
Electrical
Contact resistance < 120 mΩ
Current Carrying Capability 1.5A
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : EF Tube / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
