Mechanical
Application BGA

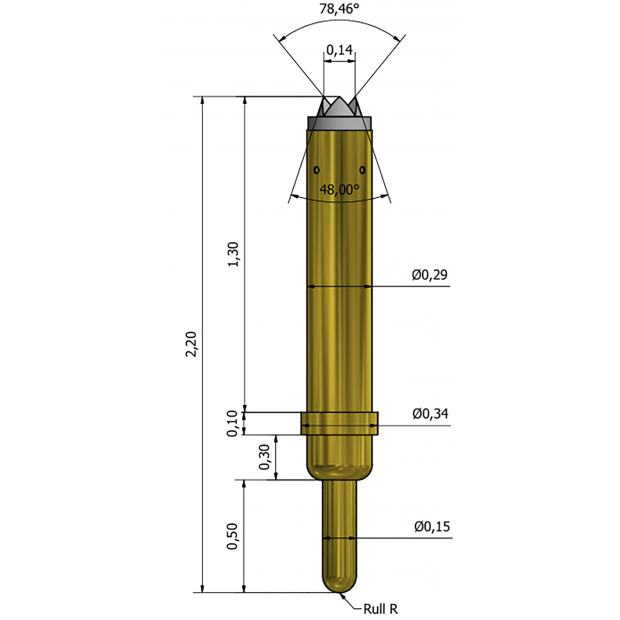

Height 1.8mm / 2.2mm (Test / Rest)
Working Spring Force 21gf@0.4mm
Recommended Travel 0.48mm
Temperature -40~120℃
Tip (device side / PCB side) Cone / Cone
Height 1.8mm / 2.2mm (Test / Rest)
Working Spring Force 21gf@0.4mm
Recommended Travel 0.48mm
Temperature -40~120℃
Tip (device side / PCB side) Cone / Cone
Electrical
Current capacity 2A Continuous
Self-inductance 0.55nH
Parasitic capacitance 0.35pF
DC Resistance < 50 mΩ (Average)
Bandwidth @ -1dB 20.5GHz
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
