Mechanical
Application BGA

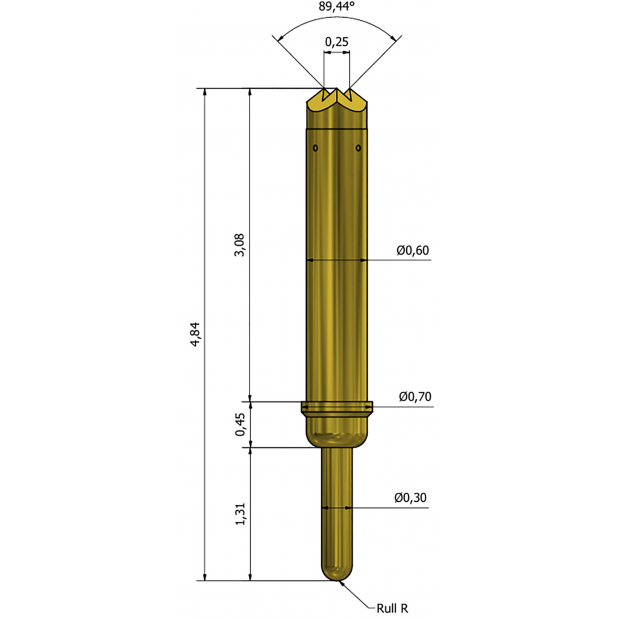

Height 4.04mm / 4.84mm (Test / Rest)
Pitch Range (MIN.) 0.8mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.8mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
Height 4.04mm / 4.84mm (Test / Rest)
Pitch Range (MIN.) 0.8mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.8mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
Electrical
MAX Contact resistance < 80 mΩ
AVG Contact resistance < 50 mΩ
Current Carrying Capability 3.5A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : BeCu / Au plated
Barrel : PBT / Au plated
Spring : NAS604 / Au plated
Bottom : BeCu / Au plated
