Mechanical
Application QFN / QFP / LGA

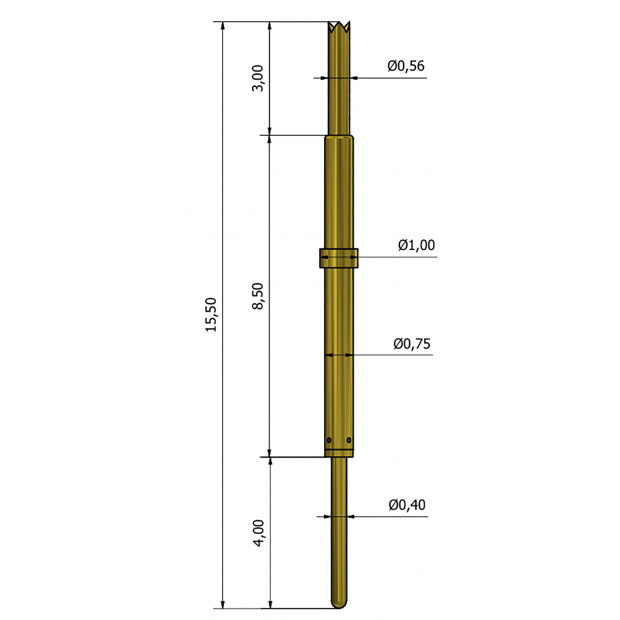

Height 13.5mm / 15.5mm (Test / Rest)
Working Spring Force 32.5gf@2.0mm
Temperature -55~150℃
Tip (device side / PCB side) Crown / Cone
Height 13.5mm / 15.5mm (Test / Rest)
Working Spring Force 32.5gf@2.0mm
Temperature -55~150℃
Tip (device side / PCB side) Crown / Cone
Electrical
Contact resistance < 100 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 500K
BOM (Material VS Plating)
Plunger-top : BeCu / Au plated
Plunger-bottom : BeCu / Au plated
Barrel : PBT / Au plated
Spring : SWP-U / Au plated
