Mechanical
Application QFN / QFP / LGA

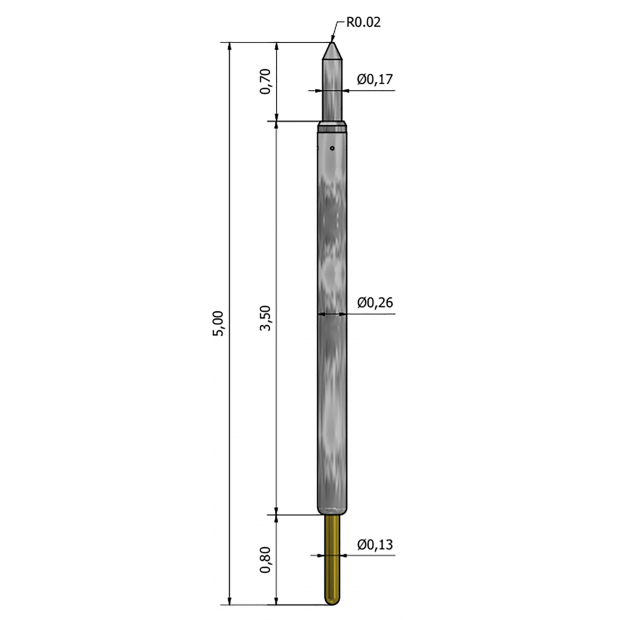

Height 4.5mm / 5.0mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 26gf@0.5mm
Temperature -25~125℃
Tip (device side / PCB side) Cone / Cone
Height 4.5mm / 5.0mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 26gf@0.5mm
Temperature -25~125℃
Tip (device side / PCB side) Cone / Cone
Electrical
Contact resistance < 100 mΩ
Current Carrying Capability 1.5A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : Ni Alloy
Spring : SWP / Au plated
Bottom : BeCu / Au plated
