Mechanical
Application BGA

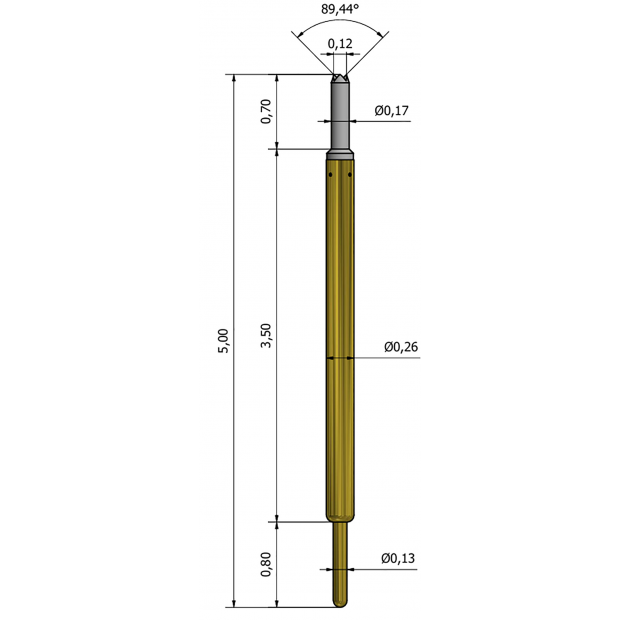

Height 4.5mm / 5.0mm (Test / Rest)
Working Spring Force 26gf@0.5mm
Temperature -40~120℃
Tip (device side / PCB side) Cone / Cone
Height 4.5mm / 5.0mm (Test / Rest)
Working Spring Force 26gf@0.5mm
Temperature -40~120℃
Tip (device side / PCB side) Cone / Cone
Electrical
Contact resistance < 80 mΩ
Current Carrying Capability 1.5A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
