Mechanical
Application BGA

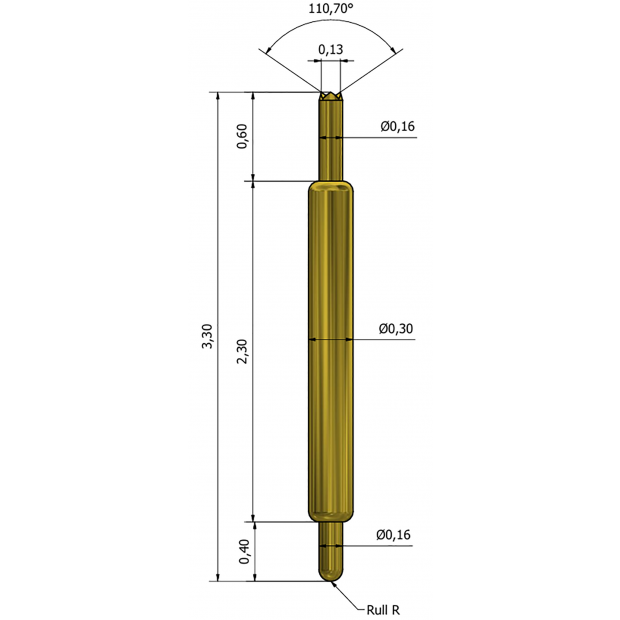

Height 2.8mm / 3.3mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 31gf@0.5mm
Recommended Travel 0.5mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
Height 2.8mm / 3.3mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 31gf@0.5mm
Recommended Travel 0.5mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
Electrical
Contact resistance < 80 mΩ
Current carrying capability 2A continuous
Insertions
Cycle life > 500K
BOM (Material VS Plating)
Plunger-top : Pd Alloy / Au plated
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
