Mechanical
Application QFN / QFP / LGA

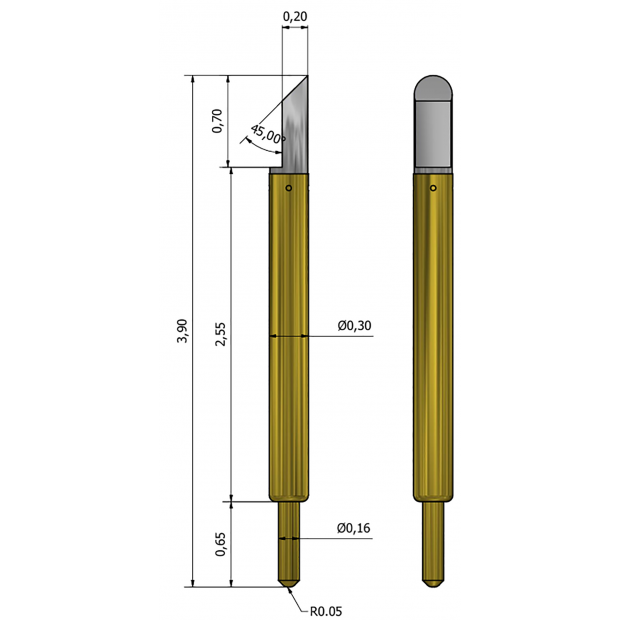

Height 3.45mm / 3.9mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 27gf@0.45mm
Recommended Travel 0.45mm
Full travel 0.65mm
Temperature -40~120℃
Tip (device side / PCB side) Kelvin / Cone
Height 3.45mm / 3.9mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 27gf@0.45mm
Recommended Travel 0.45mm
Full travel 0.65mm
Temperature -40~120℃
Tip (device side / PCB side) Kelvin / Cone
Electrical
Contact resistance < 50 mΩ
Current carrying capability 2.5A continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
