Mechanical
Application QFN / QFQ / LGA / BGA

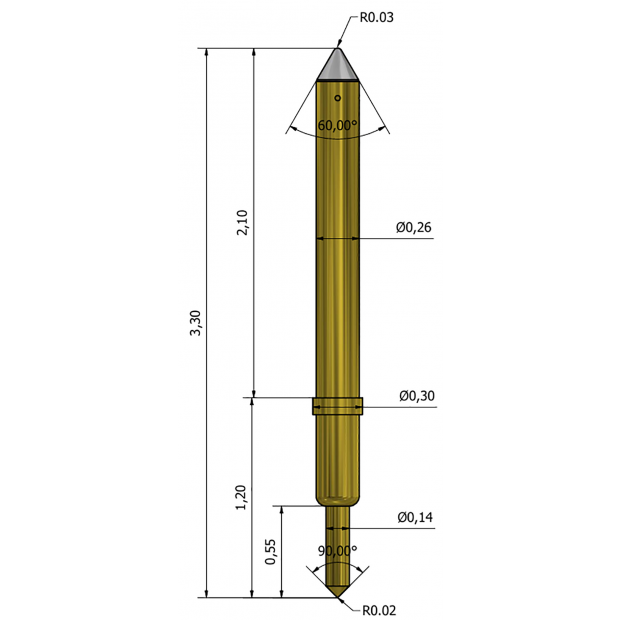

Height 2.9mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 24.5gf@0.4mm
Recommended Travel 0.5mm
Temperature -50~155℃
ElectricalHeight 2.9mm / 3.3mm (Test / Rest)
Pitch Range (MIN.)0.4mm
Working Spring Force 24.5gf@0.4mm
Recommended Travel 0.5mm
Temperature -50~155℃
Contact resistance < 80 mΩ
Current carrying capability 2A continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Plunger-bottom : BeCu / Au plated
Barrel : PBT / Au plated
Spring : SUS / Au plated
