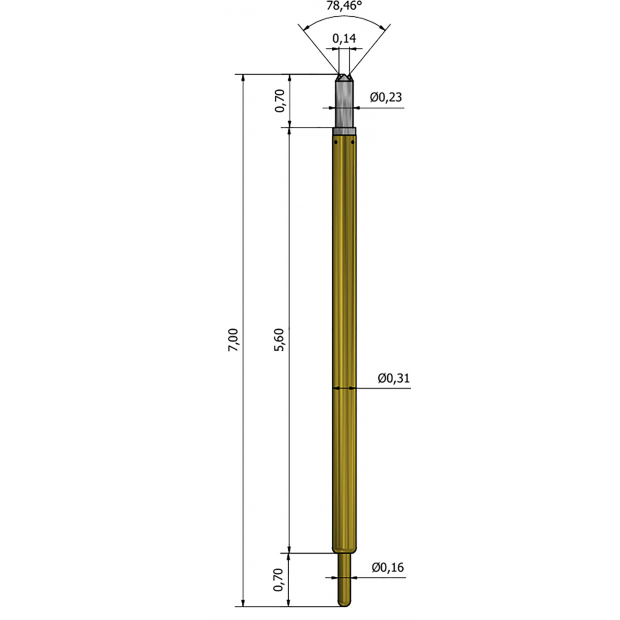

IAM-PT00021-00
Application QFN / QFP / LGA
Height 6.5mm / 7.0mm (Test / Rest)
Working Spring Force 24gf@0.5mm
Recommended Travel 0.5mm
Temperature -55~155℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00021-00
-
MORE

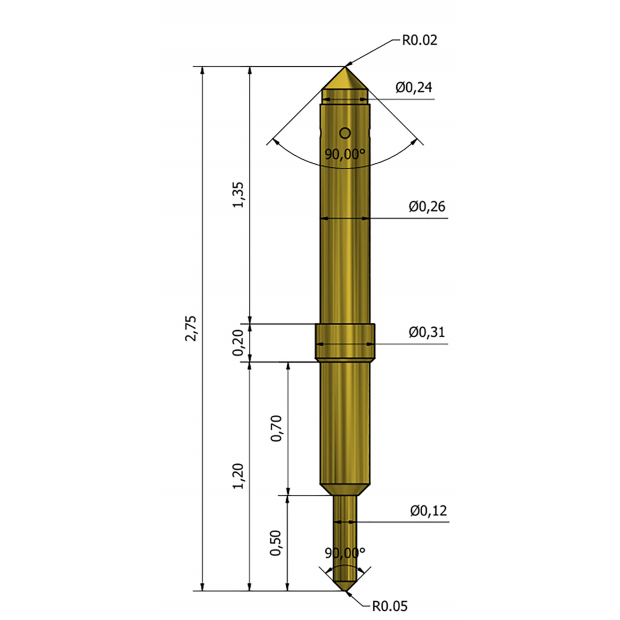

IAM-PT00020-00
Application QFN / QFP / LGA
Height 2.4mm / 2.75mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 24gf@0.35mm
Temperature -40~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00020-00
-
MORE

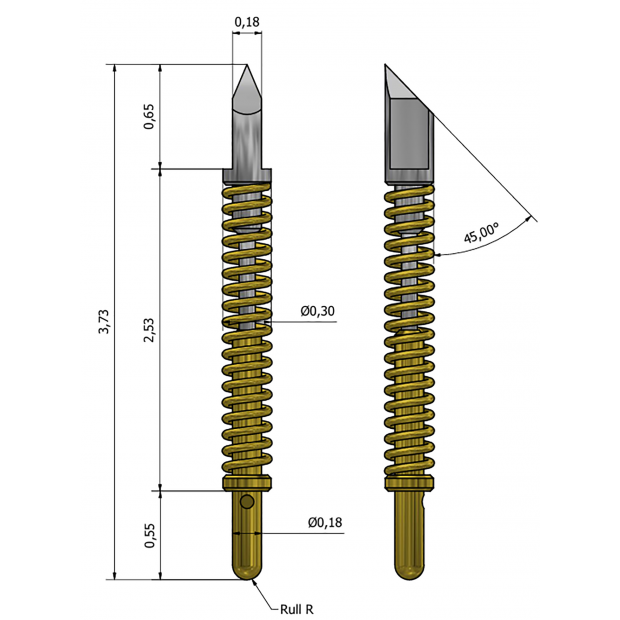

IAM-PT00019-03
Application QFN / QFP / LGA
Height 3.23mm / 3.73mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 40gf@0.5mm
Recommended Travel 0.5mm
Temperature -45~150℃
Tip (device side / PCB side) Kelvin / Cone
IAM-PT00019-03
-
MORE

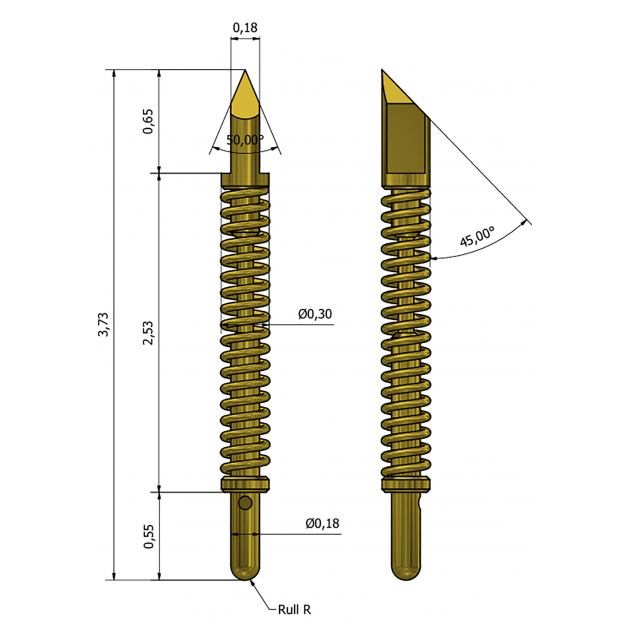

IAM-PT00019-02
Application QFN / QFP / LGA
Height 3.23mm / 3.73mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 23gf@0.5mm
Recommended Travel 0.5mm
Temperature -45~150℃
Tip (device side / PCB side) Kelvin / Cone
IAM-PT00019-02
-
MORE
IAM-PT00019-01
Application QFN / QFP / LGA
Height 3.23mm / 3.73mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 23gf@0.5mm
Recommended Travel 0.5mm
Temperature -45~150℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00019-01
-
MORE

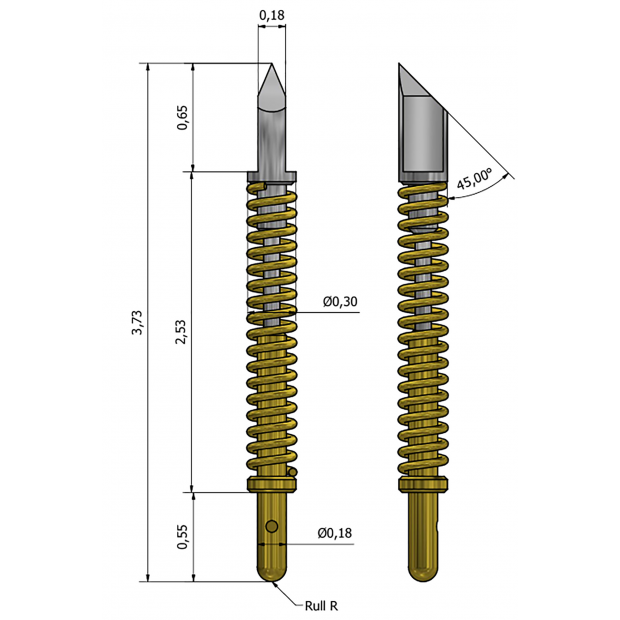

IAM-PT00019-00
Application QFN / QFP / LGA
Height 3.23mm / 3.73mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 23gf@0.5mm
Recommended Travel 0.5mm
Temperature -45~150℃
Tip (device side / PCB side) Kelvin / Cone
IAM-PT00019-00
-
MORE

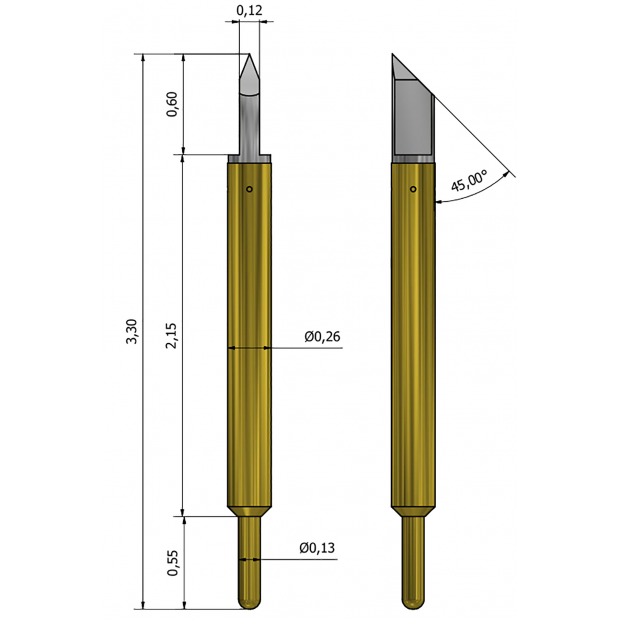

IAM-PT00018-00
Application QFN / QFP / LGA
Height 2.9mm / 3.3mm (Test / Rest)
Working Spring Force 24gf@0.4mm
Temperature -55~155℃
Tip (device side / PCB side) Kelvin / Cone
IAM-PT00018-00
-
MORE

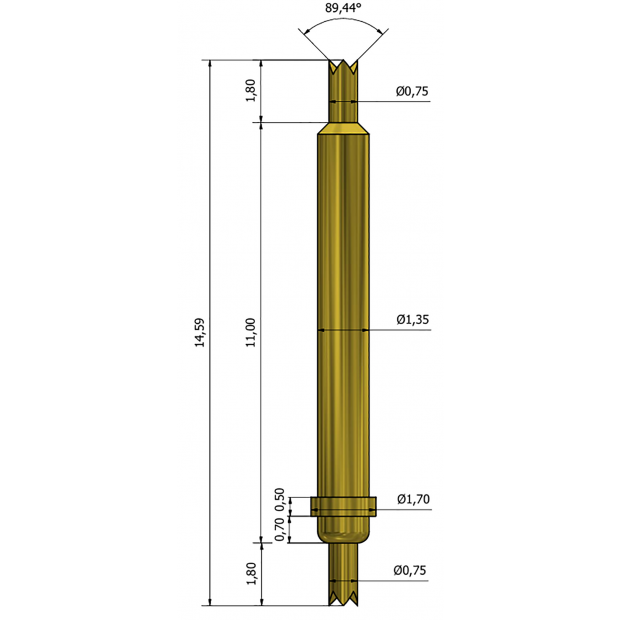

IAM-PT00017-00
Application QFN / QFP / LGA / BGA
Height 12mm / 14.6mm (Test / Rest)
Pitch Range (MIN.) 1.8mm
Working Spring Force 45.4gf@2.6mm
Recommended Travel 2.6mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00017-00
-
MORE

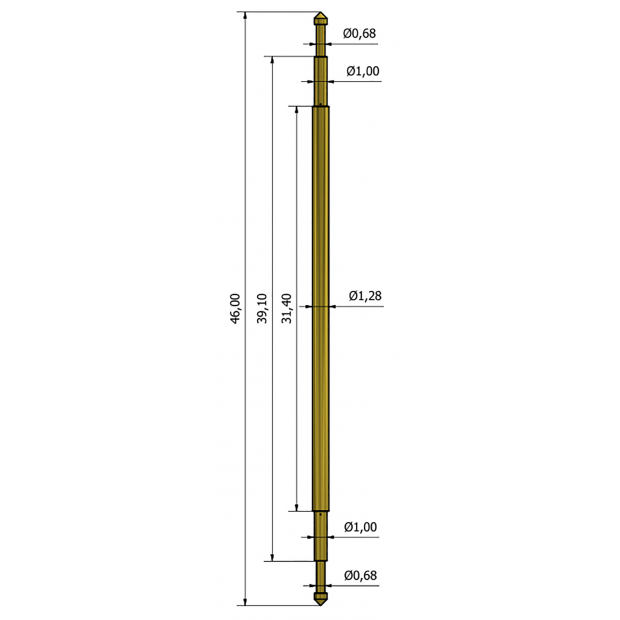

IAM-PT00015-05
Application QFN / QFP / LGA
Height 41.9mm / 46mm (Test / Rest)
Pitch Range (MIN.) 1.4mm
Working Spring Force 40gf@4.1mm (+/-10gf)
Temperature -50~155℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00015-05
-
MORE
IAM-PT00015-03
Application QFN / QFP / LGA
Height 42.4mm / 46mm (Test / Rest)
Pitch Range (MIN.) 1.4mm
Working Spring Force 60gf@3.6mm (+/-10gf)
Temperature -55~155℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00015-03
-
MORE

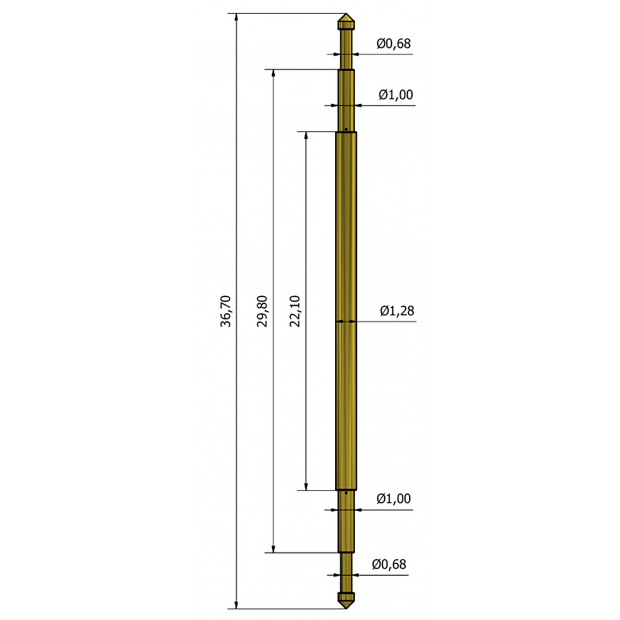

IAM-PT00015-02
Application QFN / QFP / LGA
Height 31.1mm / 36.7mm (Test / Rest)
Pitch Range (MIN.) 1.4mm
Working Spring Force 54.9gf@3.6mm
Temperature -55~155℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00015-02
-
MORE

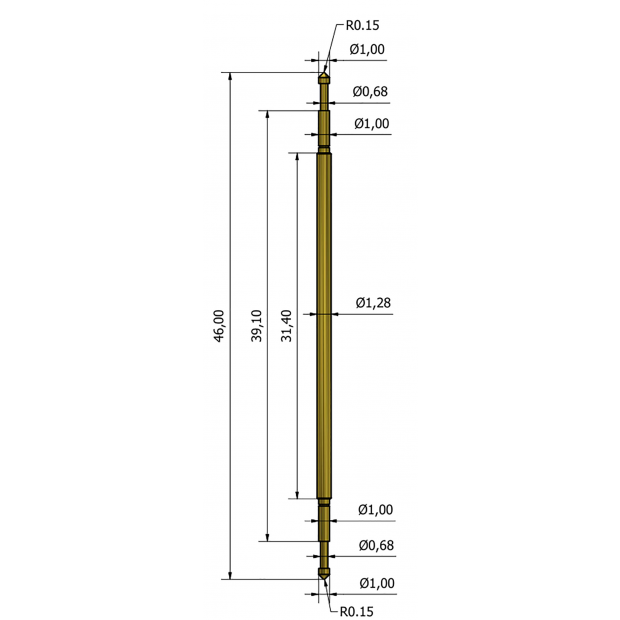

IAM-PT00015-00
Application QFN / QFP / LGA
Height 41.6mm / 46mm (Test / Rest)
Pitch Range (MIN.) 1.4mm
Working Spring Force 84gf@3.6mm (+/-14gf)
Temperature -55~155℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00015-00
