MORE

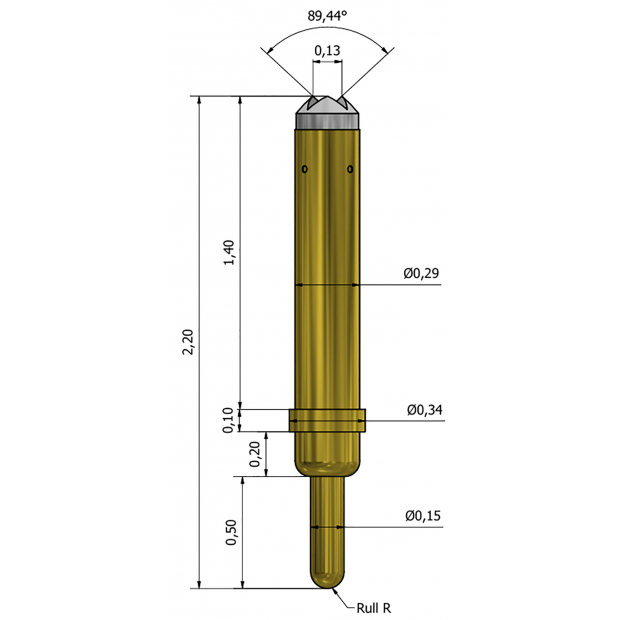

IAM-PT00028-00
Application BGA
Height 1.8mm / 2.2mm (Test / Rest)
Working Spring Force 21gf@0.4mm
Recommended Travel 0.4mm
Temperature -55~150℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00028-00
-
MORE

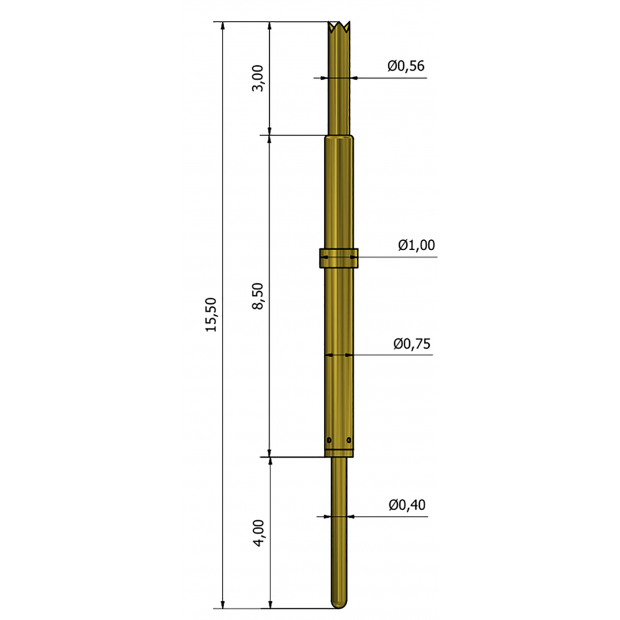

IAM-PT00026-02
Application QFN / QFP / LGA
Height 13.5mm / 15.5mm (Test / Rest)
Working Spring Force 32.5gf@2.0mm
Temperature -55~150℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00026-02
-
MORE

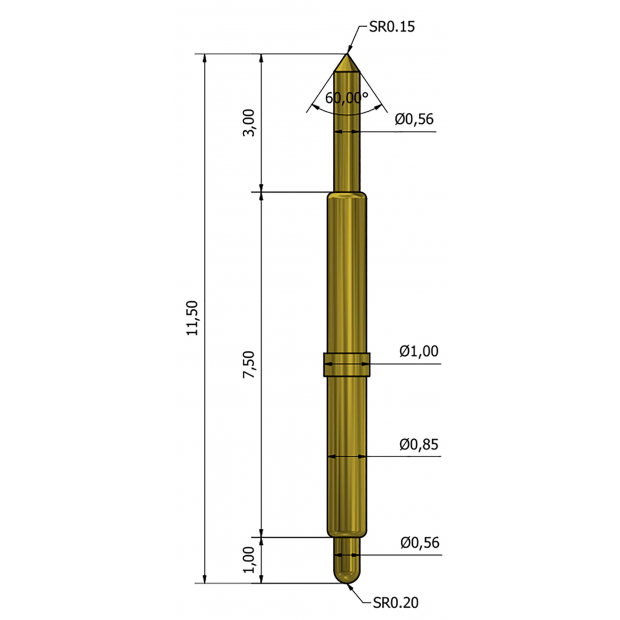

IAM-PT00026-01
Application QFN / QFP / LGA
Height 9.0mm / 11.5mm (Test / Rest)
Working Spring Force 30gf@2.5mm
Recommended Travel 3.0mm
Temperature -55~150℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00026-01
-
MORE

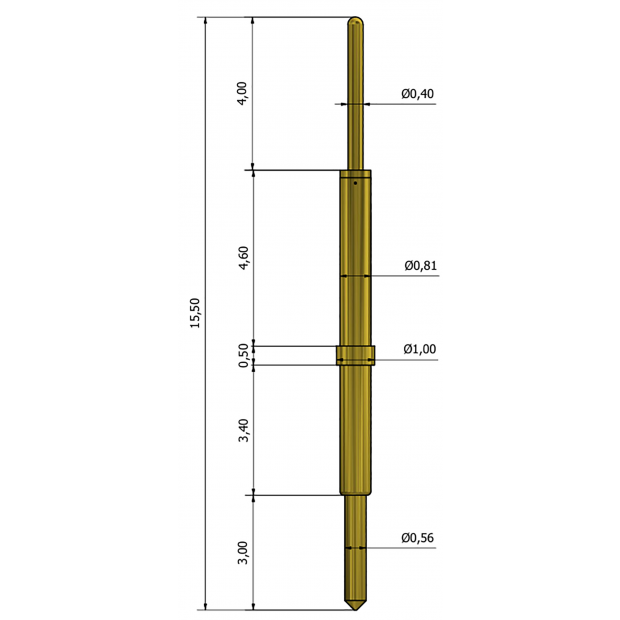

IAM-PT00026-00
Application QFN / QFP / LGA
Height 13.5mm / 15.5mm (Test / Rest)
Working Spring Force 32.5gf@2.0mm
Temperature -55~150℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00026-00
-
MORE

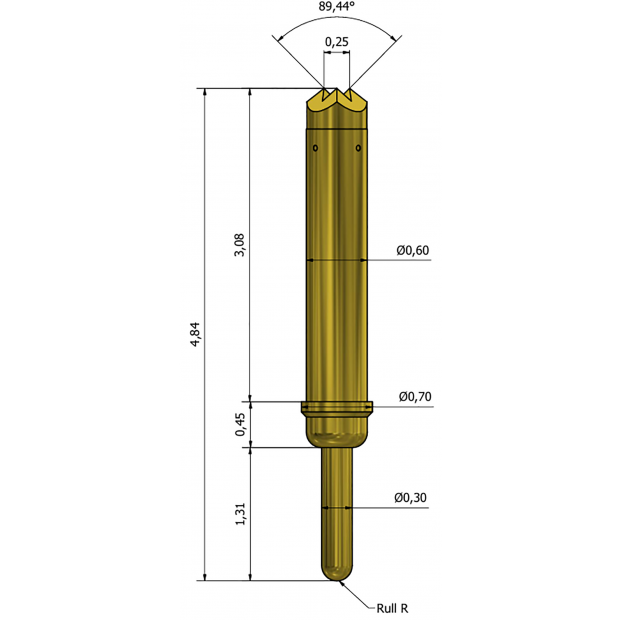

IAM-PT00025-01
Application BGA
Height 4.04mm / 4.84mm (Test / Rest)
Pitch Range (MIN.) 0.8mm
Working Spring Force 25gf@0.8mm
Recommended Travel 0.8mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00025-01
-
MORE

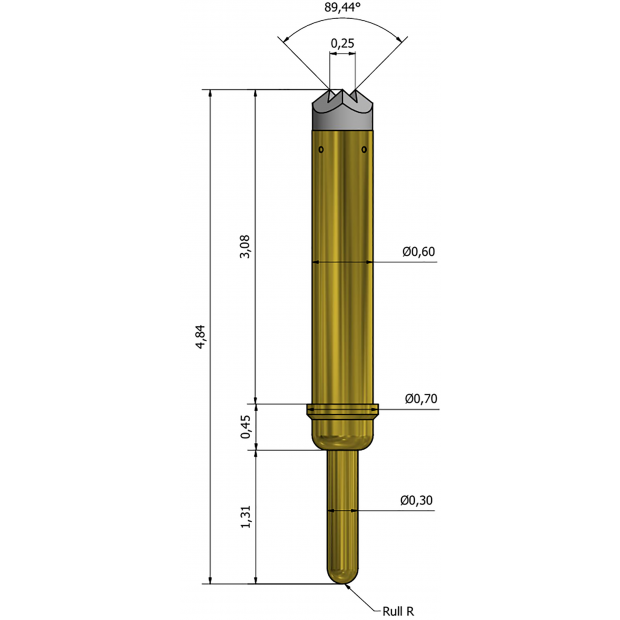

IAM-PT00025-00
Application BGA
Height 4.04mm / 4.84mm (Test / Rest)
Working Spring Force 25gf@0.8mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00025-00
-
MORE

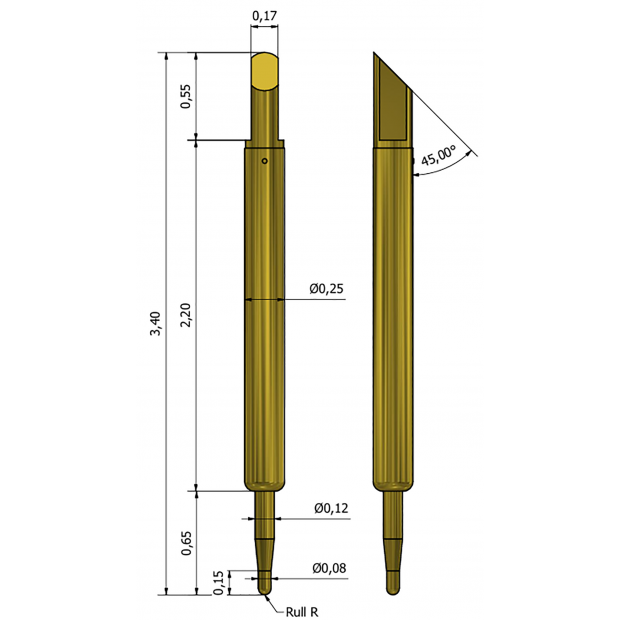

IAM-PT00023-03
Application QFN
Height 3.0mm / 3.4mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.4mm
Temperature -45~125℃
Tip (device side / PCB side) Sharp Kelvin end / Cone
IAM-PT00023-03
-
MORE

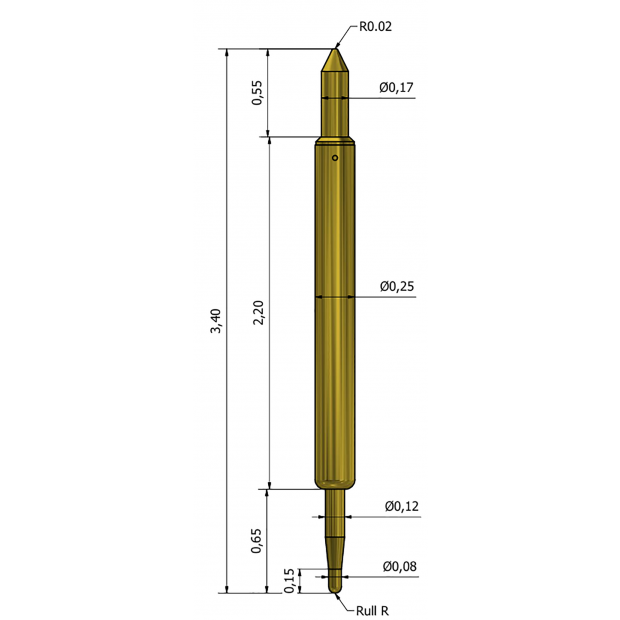

IAM-PT00023-02
Application QFN
Height 3.0mm / 3.4mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.4mm
Temperature -45~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00023-02
-
MORE

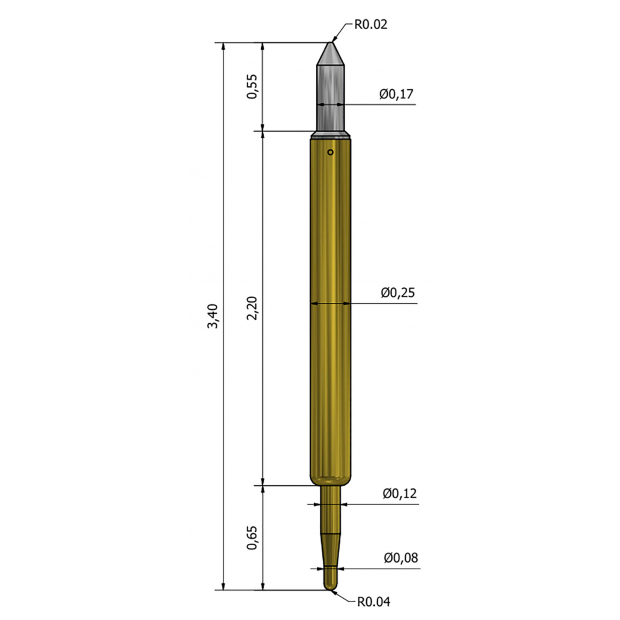

IAM-PT00023-00
Application QFN
Height 3.0mm / 3.4mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 20gf@0.4mm
Recommended Travel 0.4mm
Temperature -45~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00023-00
-
MORE

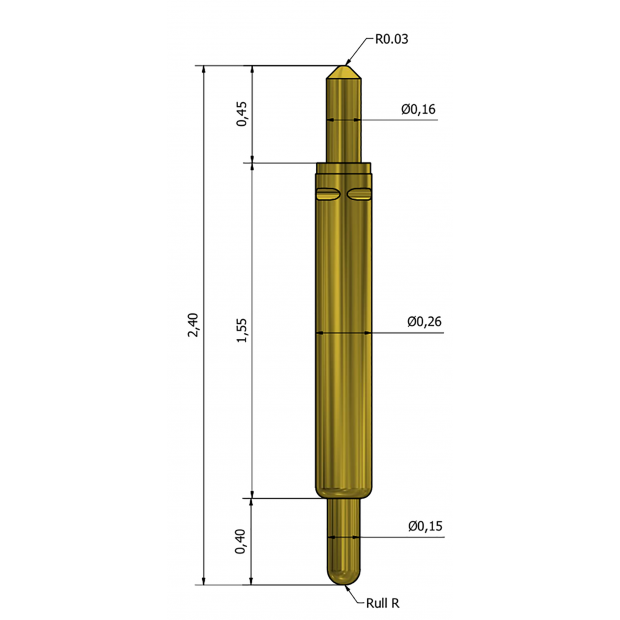

IAM-PT00022-01
Application QFN / BGA
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 25gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00022-01
-
MORE

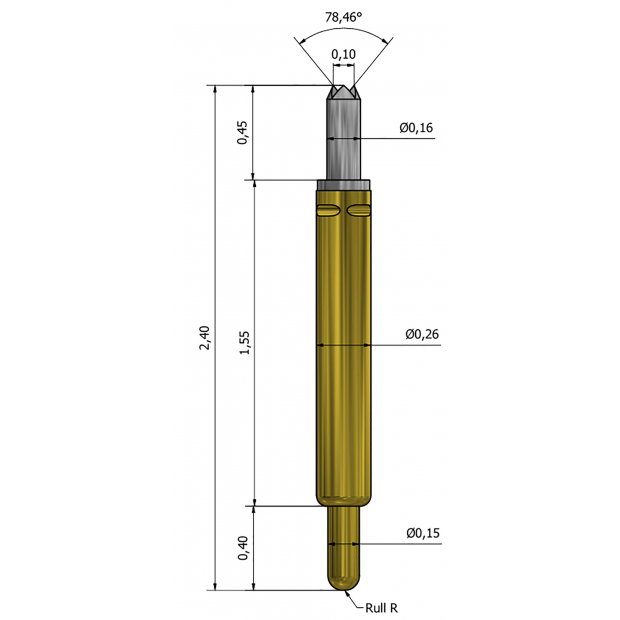

IAM-PT00022-00
Application QFN / BGA
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 25gf@0.3mm
Recommended Travel 0.3mm
Temperature -50~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00022-00
-
MORE

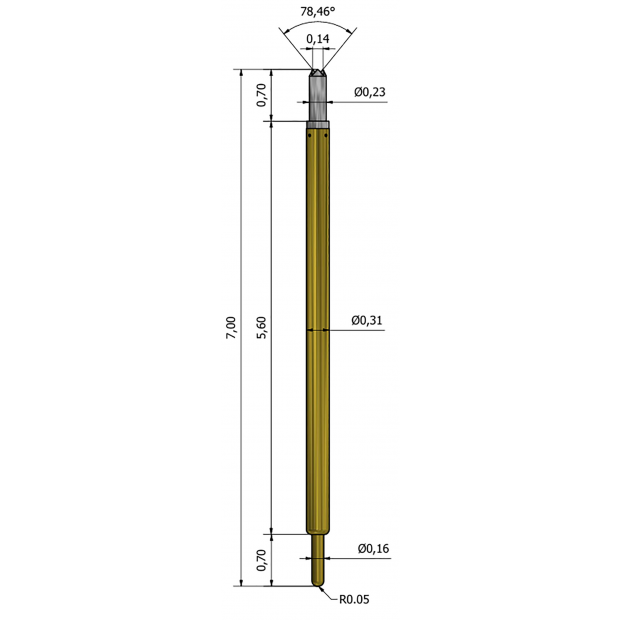

IAM-PT00021-01
Application QFN / QFP / LGA
Height 6.5mm / 7.0mm (Test / Rest)
Working Spring Force 24gf@0.5mm
Recommended Travel 0.5mm
Temperature -55~155℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00021-01
