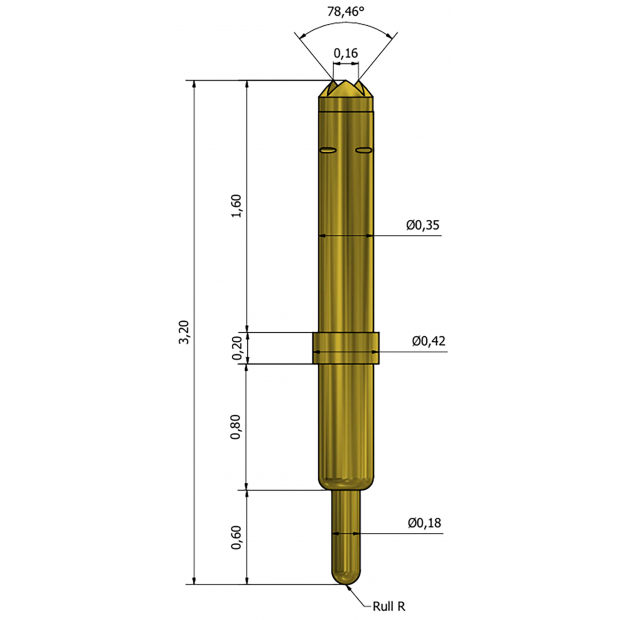

    IAM-PT00012-04

    Application QFN / QFP / LGA / BGA

    Height 2.8mm / 3.2mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 30.8gf@0.40mm

    Recommended Travel 0.4mm

    Temperature -55~150℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

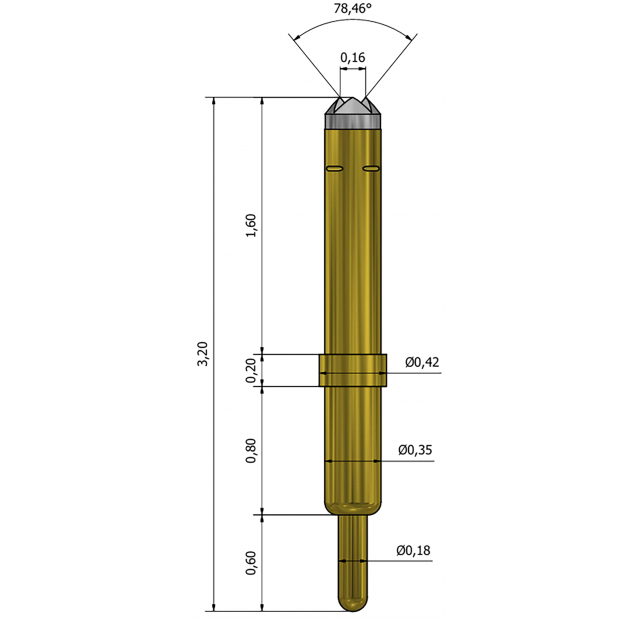

    IAM-PT00012-03

    Application BGA

    Height 2.8mm / 3.2mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 30.8gf@0.40mm

    Temperature -40~125℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

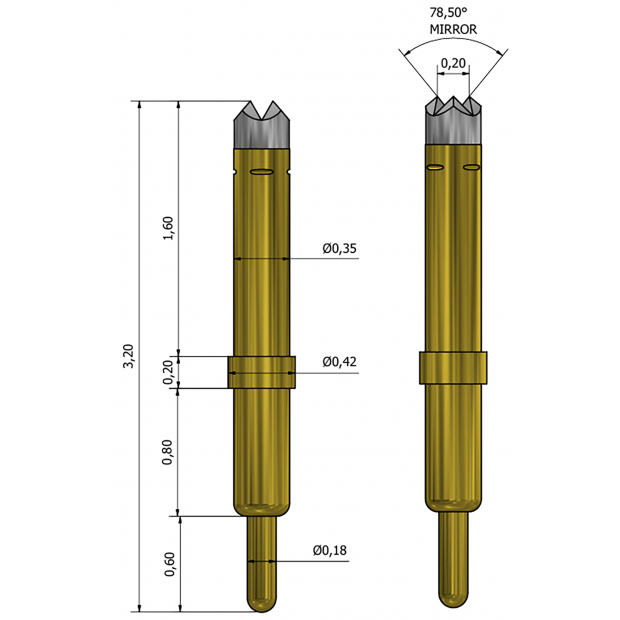

    IAM-PT00012-02

    Application QFN / QFP / LGA / BGA

    Height 2.8mm / 3.2mm (Test / Rest)

    Pitch Range (MIN.) 0.5mm

    Working Spring Force 30.8gf@0.40mm

    Recommended Travel 0.4mm

    Temperature -55~150℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

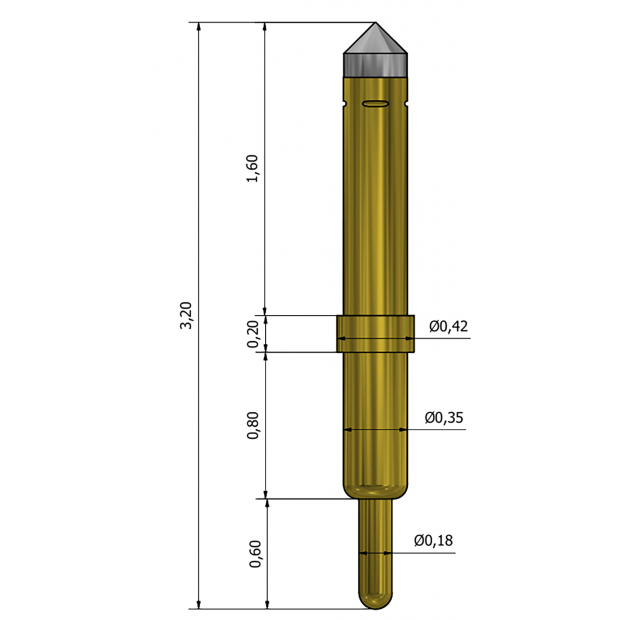

    IAM-PT00012-01

    Application QFN / QFP / LGA

    Height 2.8mm / 3.2mm (Test / Rest)

    Working Spring Force 30.8gf@0.40mm

    Temperature -55~155℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

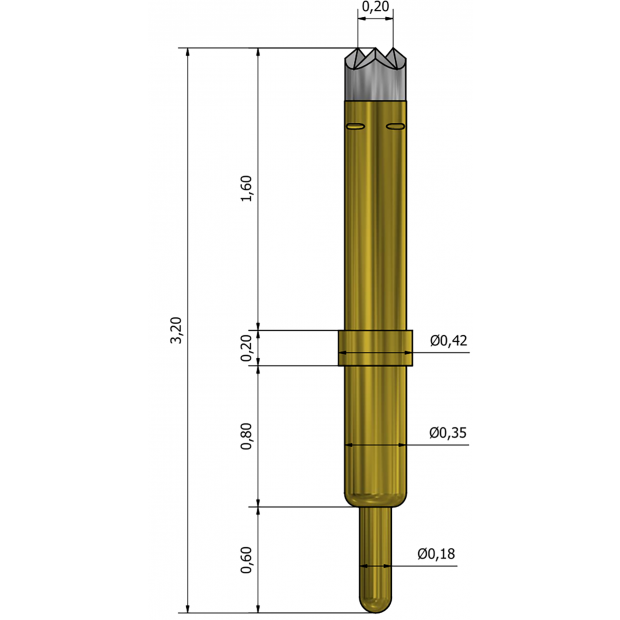

    IAM-PT00012-00

    Application QFN / QFP / LGA / BGA

    Height 2.8mm / 3.2mm (Test / Rest)

    Working Spring Force 30.8gf@0.40mm

    Temperature -40~125℃

    Tip (device side / PCB side) Crown / Cone
  • MORE

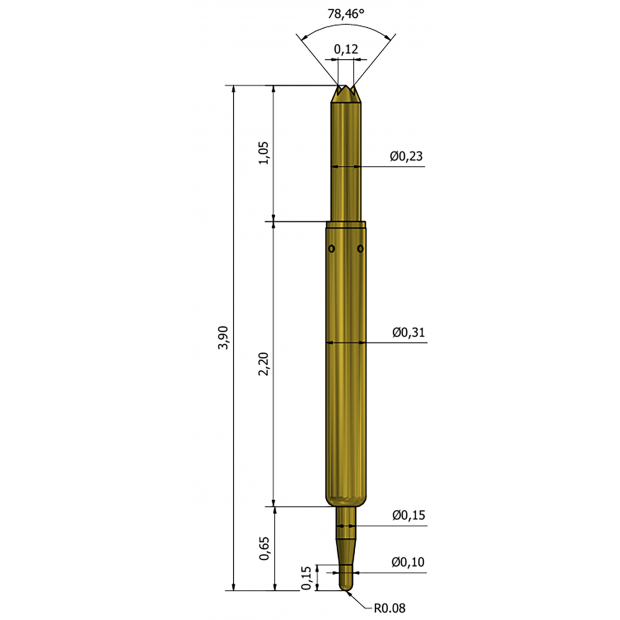

    IAM-PT00011-12

    Application QFN / QFP / LGA / BGA

    Height 3.5mm / 3.9mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 30gf@0.40mm

    Temperature -55~150℃

    Tip (device side / PCB side) R Crown / Cone
  • MORE

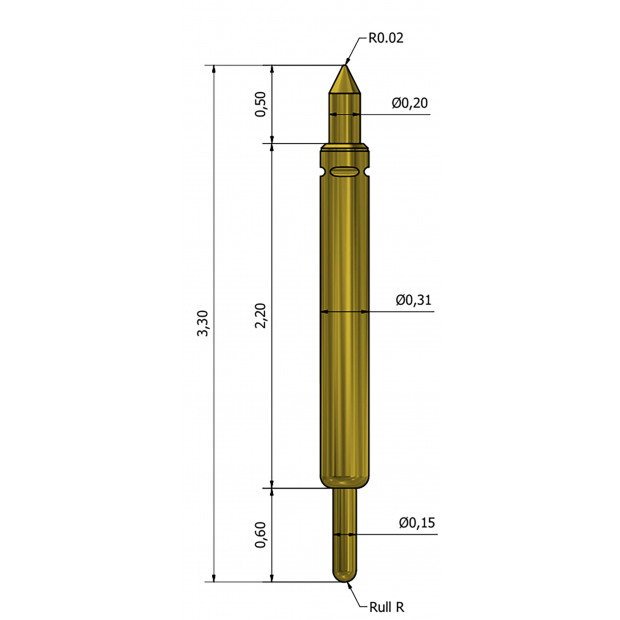

    IAM-PT00011-11

    Application QFN / QFP / LGA

    Height 2.9mm / 3.3mm (Test / Rest)

    Working Spring Force 30gf@0.40mm

    Full Travel 0.55mm

    Temperature -55~120℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

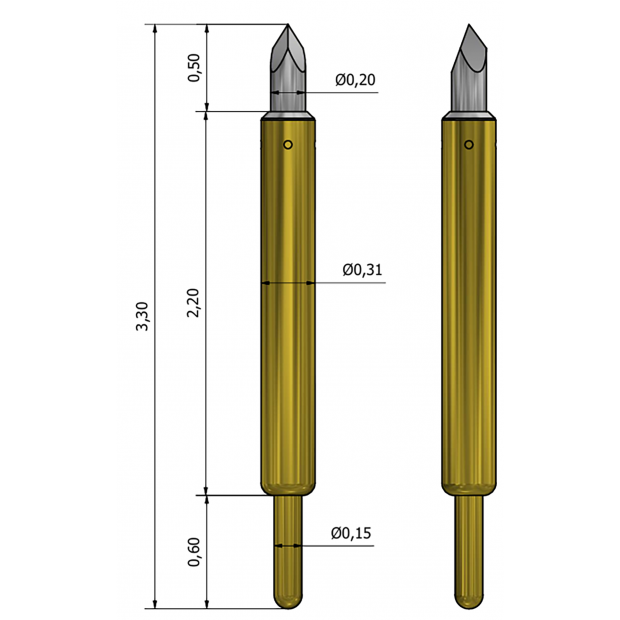

    IAM-PT00011-10

    Application QFN / QFP / LGA

    Height 2.9mm / 3.3mm (Test / Rest)

    Working Spring Force 35gf@0.40mm

    Full Travel 0.55mm

    Temperature -55~155℃

    Tip (device side / PCB side) Tip / Cone
  • MORE

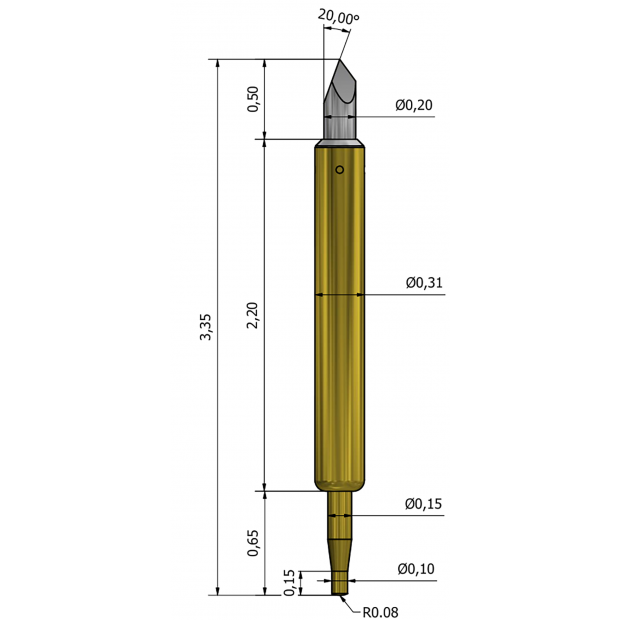

    IAM-PT00011-08

    Application QFN / QFP / LGA / BGA

    Height 2.95mm / 3.35mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 25gf@0.40mm

    Temperature -50~150℃
  • MORE

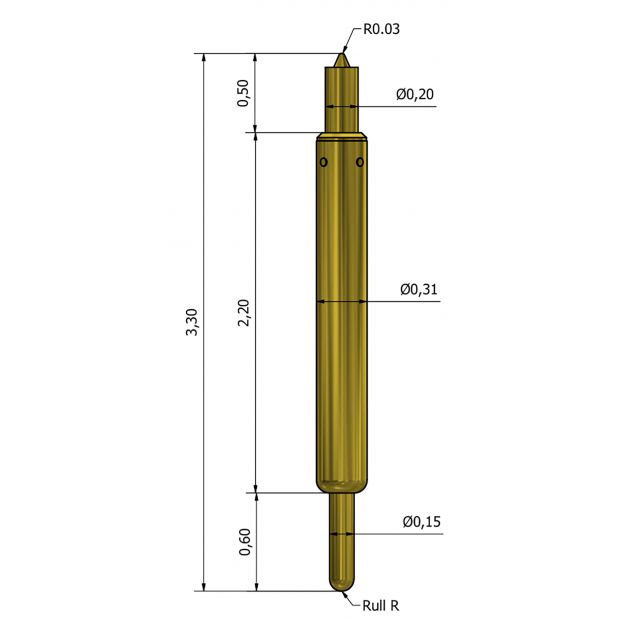

    IAM-PT00011-07

    Application QFN / QFP / LGA

    Height 2.9mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 31gf@0.40mm

    Recommended Travel 0.4mm

    Temperature -40~125℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

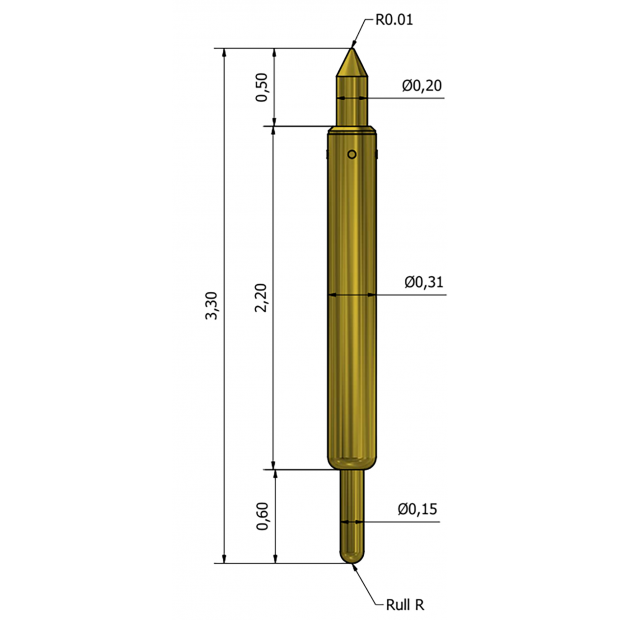

    IAM-PT00011-06

    Application QFN / QFP / LGA

    Height 2.9mm / 3.3mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 31gf@0.40mm

    Recommended Travel 0.4mm

    Temperature -40~125℃

    Tip (device side / PCB side) Cone / Cone
  • MORE

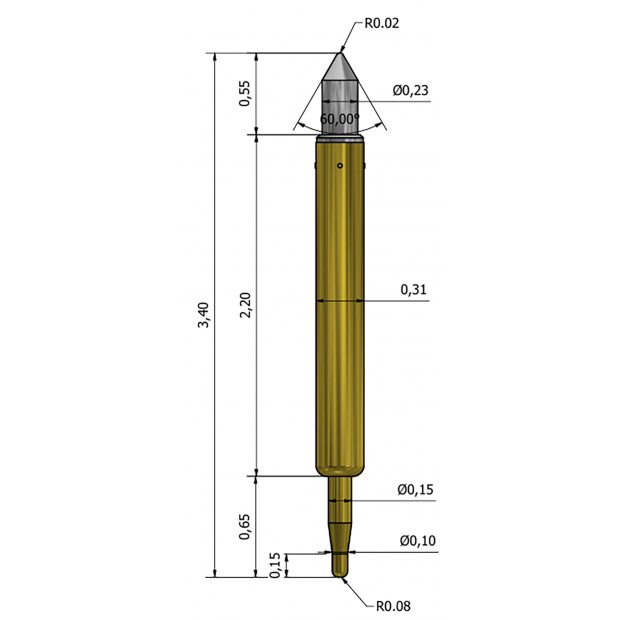

    IAM-PT00011-04

    Application QFN / QFP / LGA

    Height 3.0mm / 3.4mm (Test / Rest)

    Pitch Range (MIN.) 0.4mm

    Working Spring Force 31gf@0.40mm

    Recommended Travel 0.4mm

    Temperature -20~125℃

    Tip (device side / PCB side) Cone / Cone
