Mechanical
Application QFN / QFP / LGA

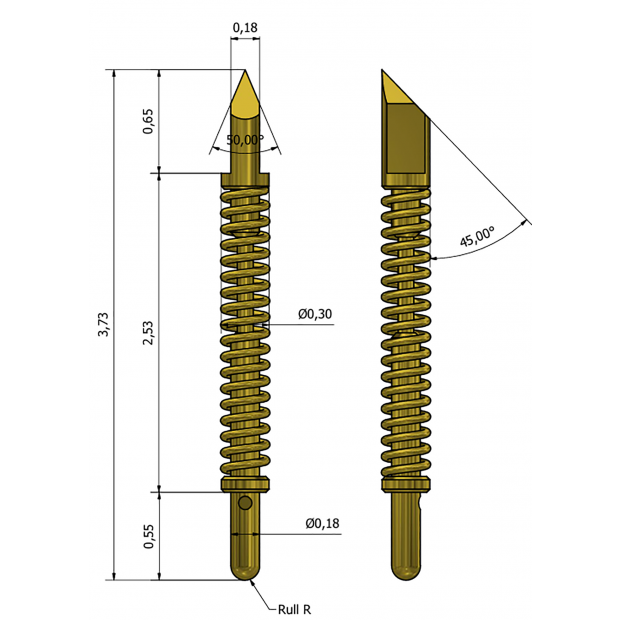

Height 3.23mm / 3.73mm (Test / Rest)
Pitch Ranger (MIN.) 0.35mm
Working Spring Force 23gf@0.5mm
Recommended Travel 0.5mm
Temperature -45~150℃
Tip (device side / PCB side) Kelvin / Cone
Height 3.23mm / 3.73mm (Test / Rest)
Pitch Ranger (MIN.) 0.35mm
Working Spring Force 23gf@0.5mm
Recommended Travel 0.5mm
Temperature -45~150℃
Tip (device side / PCB side) Kelvin / Cone
Electrical
Contact resistance < 70 mΩ
Current Carrying Capability 2A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : SK4 / Au plated
Spring : NAS604 / Au plated
Bottom : BeCu / Au plated
