Mechanical
Application QFN / QFP / LGA

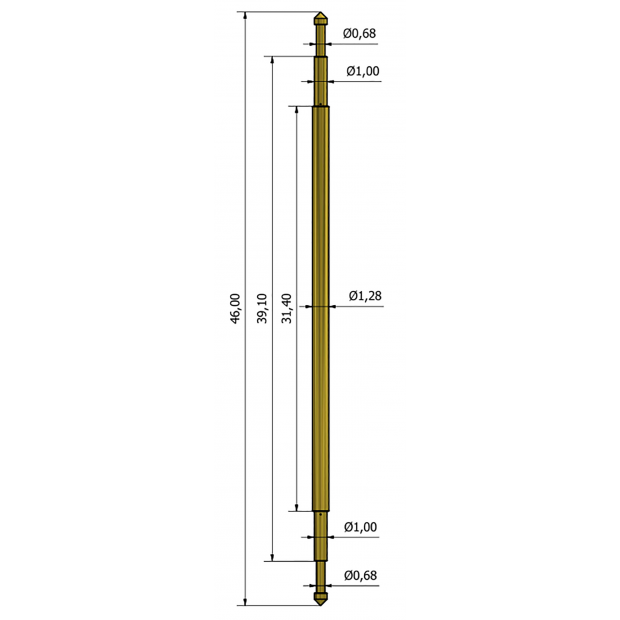

Height 41.9mm / 46mm (Test / Rest)
Pitch Range (MIN.)1.4mm
Working Spring Force 40gf@4.1mm (+/-10gf)
Temperature -50~155℃
Tip (device side / PCB side) Cone / Cone
Height 41.9mm / 46mm (Test / Rest)
Pitch Range (MIN.)1.4mm
Working Spring Force 40gf@4.1mm (+/-10gf)
Temperature -50~155℃
Tip (device side / PCB side) Cone / Cone
Electrical
Contact resistance < 100 mΩ
Current Carrying Capability 3.5A Continuous
Insertions
Cycle life > 100K
BOM (Material VS Plating)
Plunger : BeCu / Au plated
Barrel : Brass / Au plated
Spring : SST / Au plated
Ball : SST
