Mechanical
Application QFN / QFP / LGA / BGA

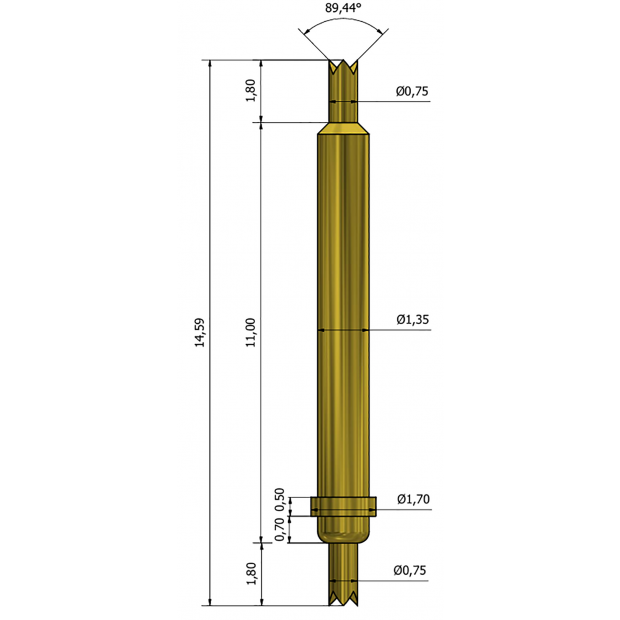

Height 12mm / 14.6mm (Test / Rest)
Pitch Range (MIN.)1.8mm
Working Spring Force 45.4gf@2.6mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
Height 12mm / 14.6mm (Test / Rest)
Pitch Range (MIN.)1.8mm
Working Spring Force 45.4gf@2.6mm
Temperature -40~155℃
Tip (device side / PCB side) Crown / Cone
Electrical
Contact resistance < 100 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 500K
BOM (Material VS Plating)
Plunger-Top : BeCu / Au plated
Barrel : Brass / Au plated
Spring : SST / Au plated
Bottom : BeCu / Au plated
