Mechanical
Application QFN / QFP / LGA

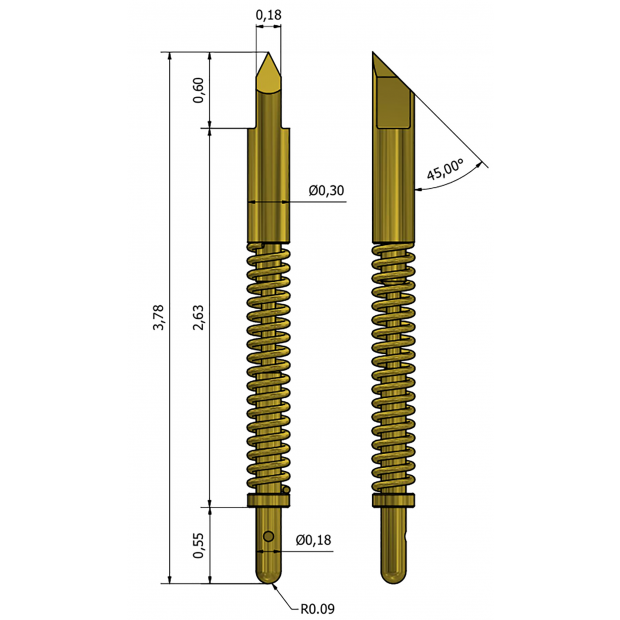

Height 3.23mm / 3.73mm / 3.78mm (Test / Rest / Free)
Pitch Range (MIN.) 0.4mm
Working Spring Force 37gf@0.50mm
Recommended Travel 0.5mm
Temperature -55~150℃
Tip (device side / PCB side) Sharp Kelvin end / Cone
Height 3.23mm / 3.73mm / 3.78mm (Test / Rest / Free)
Pitch Range (MIN.) 0.4mm
Working Spring Force 37gf@0.50mm
Recommended Travel 0.5mm
Temperature -55~150℃
Tip (device side / PCB side) Sharp Kelvin end / Cone
Electrical
Contact resistance < 60 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy / Au plated
Spring : NAS604 / Au plated
Bottom : BeCu / Au plated
