MORE

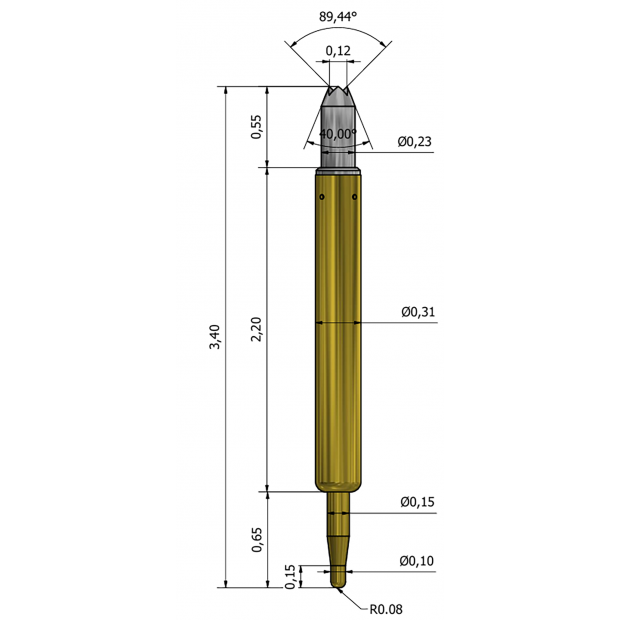

IAM-PT00011-03
Application QFN / QFP / LGA
Height 3.0mm / 3.4mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 31gf@0.40mm
Recommended Travel 0.4mm
Temperature -20~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00011-03
-
MORE

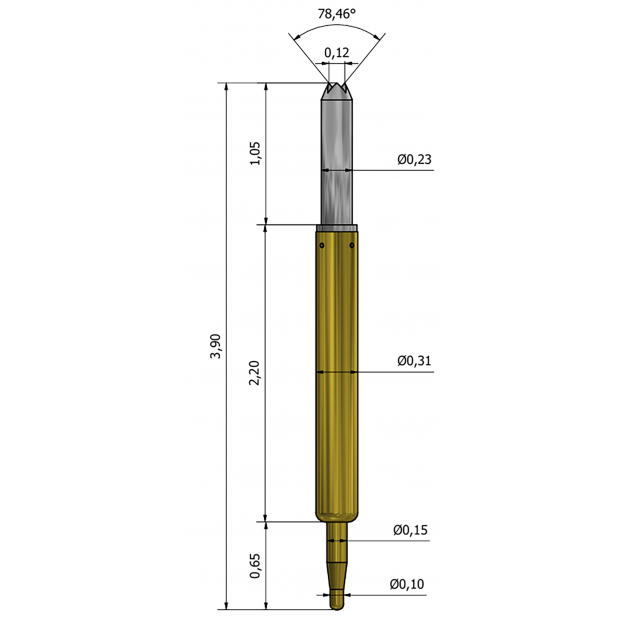

IAM-PT00011-02
Application QFN / QFP / LGA
Height 3.5mm / 3.9mm (Test / Rest)
Working Spring Force 31gf@0.40mm
Temperature -50~155℃
Tip (device side / PCB side) R Crown / Cone
IAM-PT00011-02
-
MORE

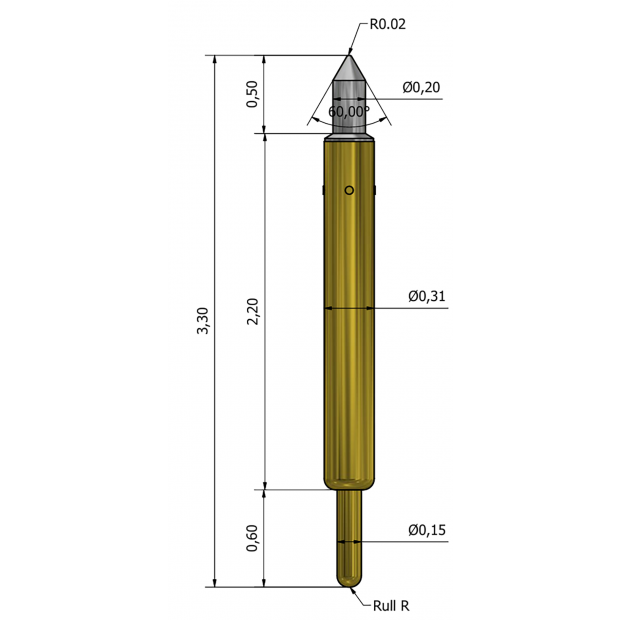

IAM-PT00011-01
Application QFN / QFP / LGA
Height 2.9mm / 3.3mm (Test / Rest)
Working Spring Force 31gf@0.40mm
Recommended Travel 0.4mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00011-01
-
MORE

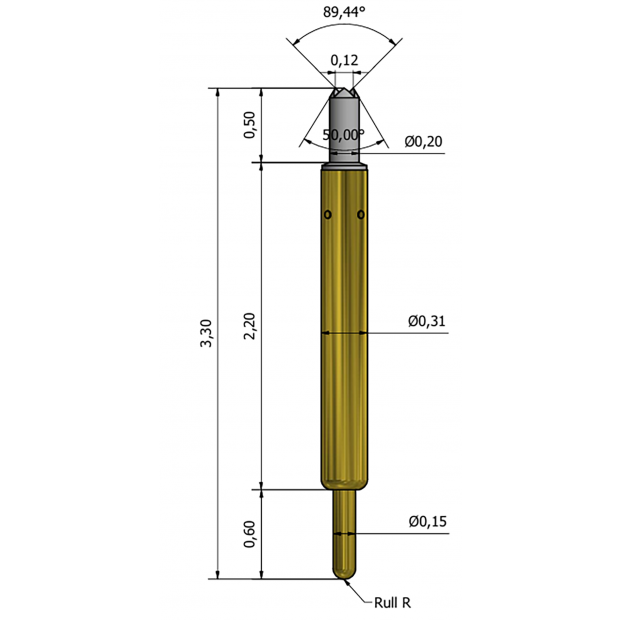

IAM-PT00011-00
Application QFN / QFP / LGA
Height 2.9mm / 3.3mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 31gf@0.40mm
Recommended Travel 0.4mm
Temperature -40~125℃
Tip (device side / PCB side) R Crown / Cone
IAM-PT00011-00
-
MORE

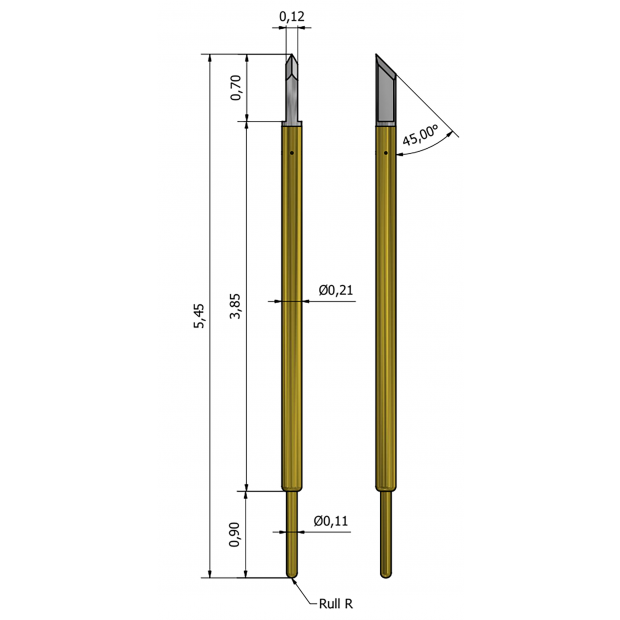

IAM-PT00010-00
Application LGA / WLCSP
Height 4.95mm / 5.45mm (Test / Rest)
Pitch Range (MIN.) 0.35mm
Working Spring Force 13.3gf@0.50mm
Recommended Travel 0.50mm
Temperature -55~120℃
Tip (device side / PCB side) Kelvin / Cone
IAM-PT00010-00
-
MORE

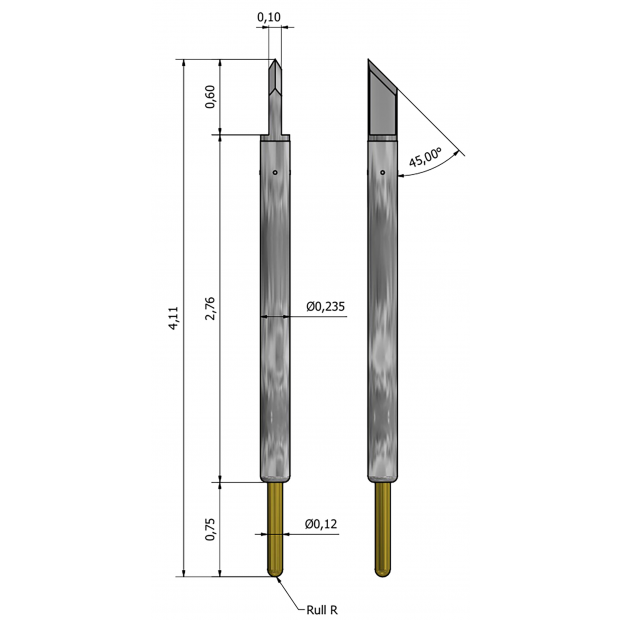

IAM-PT00009-00
Application LGA / WLCSP
Height 3.66mm / 4.11mm (Test / Rest)
Pitch Range (Min.) 0.35mm
Working Spring Force 16gf@0.45mm
Recommended Travel 0.45mm
Temperature -55~120℃
Tip (device side / PCB side) Sarp Kelvin end / Cone
IAM-PT00009-00
-
MORE

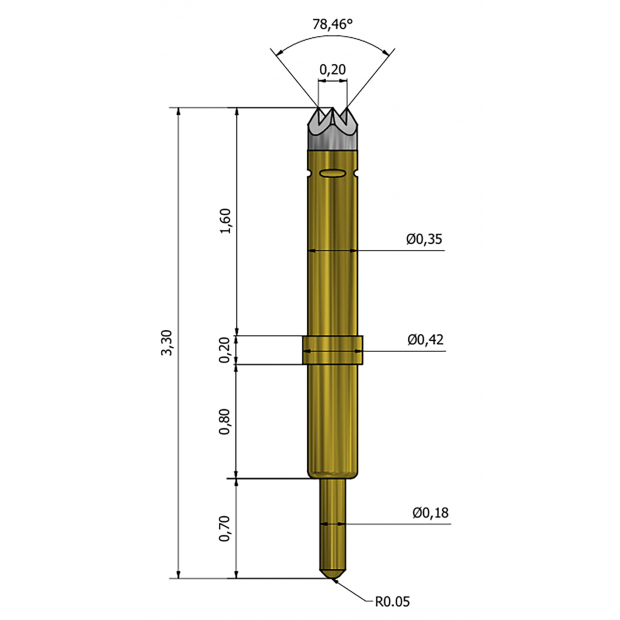

IAM-PT00008-00
Application BGA
Height 2.8mm / 3.3mm (Test / Rest)
Pitch Range (MIN.) 0.8mm
Working Spring Force 24.5gf@0.50mm
Temperature -40~125℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00008-00
-
MORE
IAM-PT00006-01
Application QFN / QFP / LGA / BGA
Height 4.5mm / 5.2mm (Test / Rest)
Pitch Range (MIN.) 0.40mm
Working Spring Force 35gf@0.70mm
Recommended Travel 0.70mm
Temperature -40~120℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00006-01
-
MORE
IAM-PT00006-00
Application QFN / QFP / LGA / BGA
Height 4.5mm / 5.2mm (Test / Rest)
Working Spring Force 35gf@0.70mm
Temperature -40~120℃
Tip (device side / PCB side) Crown / Cone
IAM-PT00006-00
-
MORE
IAM-PT00005-00
Application LGA / WLCSP
Height 5.1mm / 6.8mm (Test / Rest)
Pitch Range (Min.) 0.50mm
Working Spring Force 36.9gf@0.70mm
Recommended Travel 0.7mm
Temperature -45~125℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00005-00
-
MORE
IAM-PT00004-01
Application QFN / QFP / LGA
Height 5.5mm / 6.3mm (Test / Rest)
Pitch Range (Min.) 0.85mm
Working Spring Force 30gf@0.80mm
Recommended Travel 1.0mm
Temperature -55~150℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00004-01
-
MORE
IAM-PT00004-00
Application QFN / QFP / LGA
Height 5.5mm / 6.3mm (Test / Rest)
Pitch Range (Min.) 0.85mm
Working Spring Force 45gf@0.80mm
Recommended Travel 1.0mm
Temperature -55~150℃
Tip (device side / PCB side) Cone / Cone
IAM-PT00004-00
