Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針

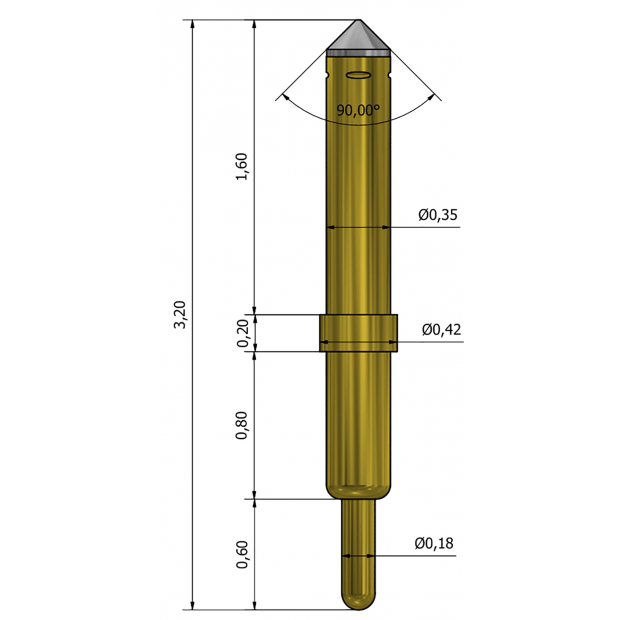

IAM-PT00012-06

IAM-PT00012-06

Application QFN / QFP / LGA

Height 2.8mm / 3.2mm (Test / Rest)

Working Spring Force 30gf@0.40mm

Full Travel 0.5mm

Temperature -40~125℃

Tip (device side / PCB side) Cone / Cone
/
詳細介紹
    Mechanical
    Application QFN / QFP / LGA
    Height 2.8mm / 3.2mm (Test / Rest)
    Working Spring Force 30.8gf@0.40mm
    Full Travel 0.5mm
    Temperature -40~125℃
    Tip (device / PCB) Cone / Cone

    Electrical
    Contact resistance < 50 mΩ
    Current Carrying Capability 3A Continuous

    Insertions
    Cycle life > 300K

    BOM (Material VS Plating)
    Plunger-top : Pd Alloy
    Plunger-bttom : BeCu / Au plated
    Barrel : PBT / Au plated
    Spring : SWP-U / Au plated
