Mechanical
Application QFN / QFP / LGA

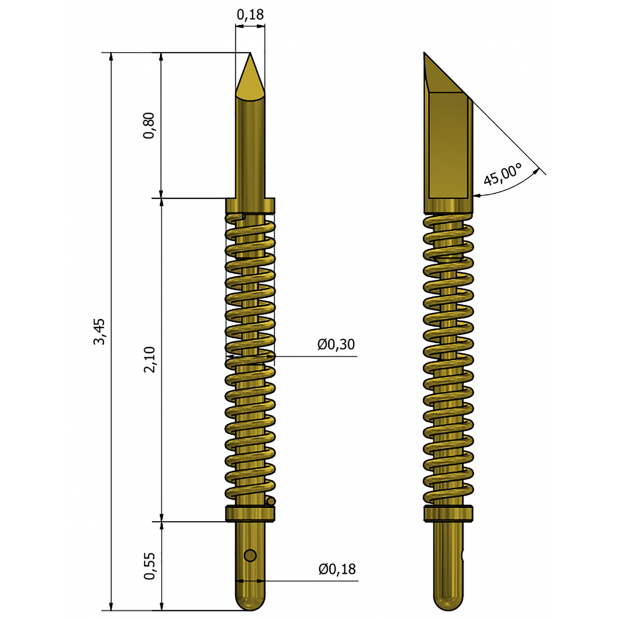

Height 2.95mm / 3.45mm (Test / Rest)
Working Spring Force 37gf@0.50mm
Temperature -55~155℃
Tip (device side / PCB side) Kelvin / Cone
Height 2.95mm / 3.45mm (Test / Rest)
Working Spring Force 37gf@0.50mm
Temperature -55~155℃
Tip (device side / PCB side) Kelvin / Cone
Electrical
Contact resistance < 60 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : SK4 / Au plated
Plunger-bottom BeCu / Au plated
Spring : NAS604 / Au plated
