Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針
IAM-PT00013-00

IAM-PT00013-00

Application QFN / QFP / LGA

Height 4.5mm / 4.9mm (Test / Rest)

Pitch Range (MIN.) 0.4mm

Working Spring Force 30gf@0.40mm

Recommended Travel 0.4mm

Temperature -40~120℃

Tip (device side / PCB side) Kelvin / Cone
/
詳細介紹

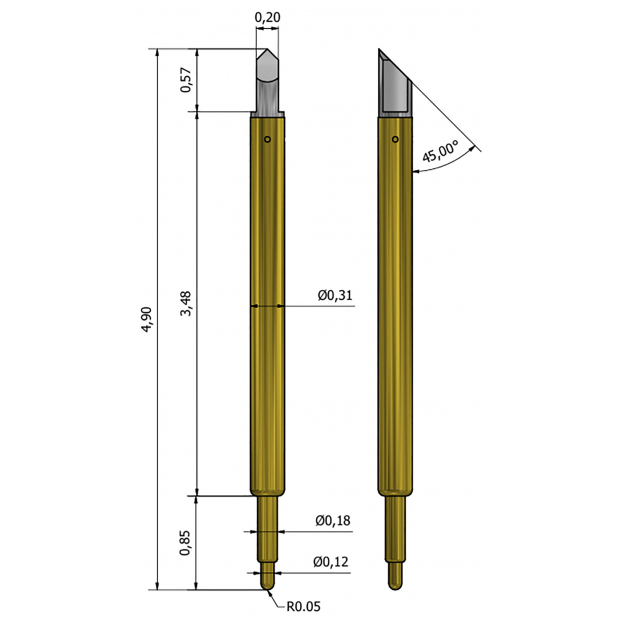

    Mechanical
    Application QFN / QFP / LGA
    Height 4.5mm / 4.9mm (Test / Rest)
    Working Spring Force 30gf@0.40mm
    Recommended Travel 0.4mm
    Temperature -40~120℃
    Tip (device / PCB) Kelvin / Cone

    Electrical
    Current Capability : 2.5A Continuous
    Self-inductance : 0.44nH
    Parasitic capacitance : 0.54pF
    DC Resistance : < 80 mΩ (Average)
    Bandwidth @ -0.3dB 6.5GHz

    Insertions
    Cycle life > 300K

    BOM (Material VS Plating)
    Plunger-top : Pd Alloy
    Barrel : PBT / Au plated
    Spring : NAS604 / Au plated
    Bottom : BeCu / Au plated
