Mechanical
Application QFN / QFP / LGA

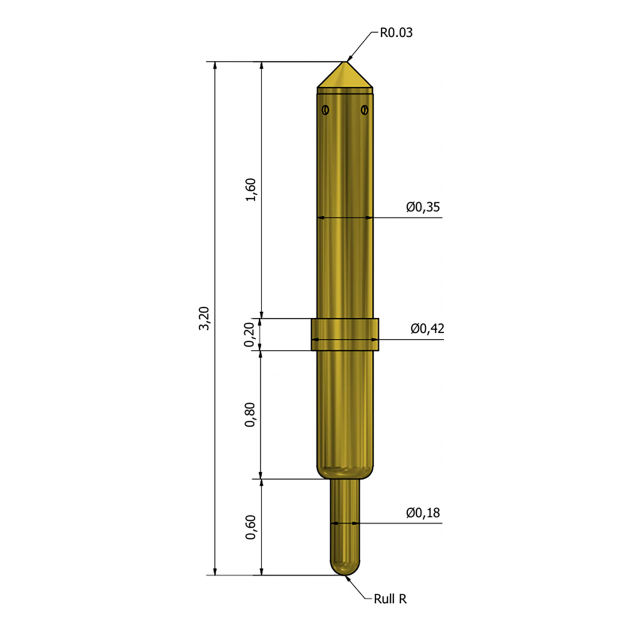

Height 2.8mm / 3.2mm (Test / Rest)
Pitch Range (MIN.) 0.5mm
Working Spring Force 30.8gf@0.40mm
Recommended Travel 0.4mm
Temperature -55~150℃Pitch Range (MIN.) 0.5mm
Working Spring Force 30.8gf@0.40mm
Recommended Travel 0.4mm
Tip (device / PCB) Cone / Cone
Electrical
Contact resistance < 50 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 500K
BOM (Material VS Plating)
Plunger-top : BeCu / Au plated
Barrel : PBT / Au plated
Spring : NAS604 / Au plated
Bottom : BeCu / Au plated
