  1. Pogo Pin / 彈簧針

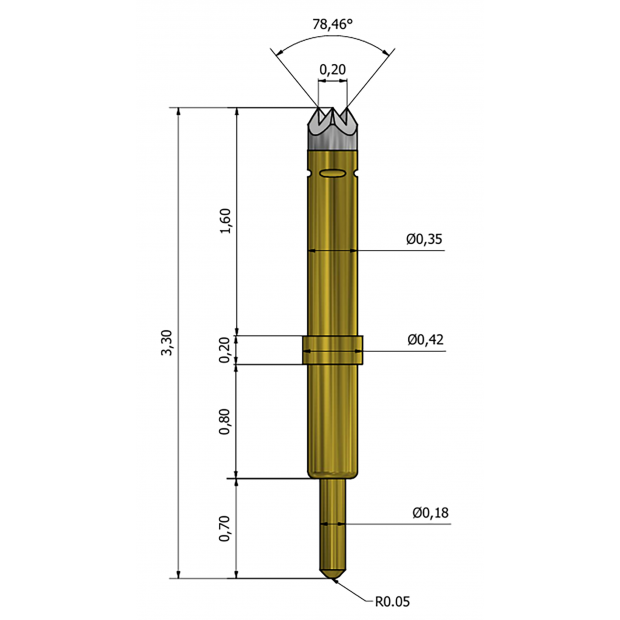

IAM-PT00008-00

IAM-PT00008-00

Application BGA

Height 2.8mm / 3.3mm (Test / Rest)

Pitch Range (MIN.) 0.8mm

Working Spring Force 24.5gf@0.50mm

Temperature -40~125℃

Tip (device side / PCB side) Crown / Cone
/
詳細介紹
    Mechanical
    Application BGA
    Height 2.8mm / 3.3mm (Test / Rest)
    Pitch Range (MIN.) 0.8mm
    Working Spring Force 24.5gf@0.50mm
    Temperature -40~125℃
    Tip (device / PCB) Crown / Cone

    Electrical
    Contact resistance < 50 mΩ
    Current Carrying Capability 2A Continuous

    Insertions
    Cycle life > 500K

    BOM (Material VS Plating)
    Plunger-top : Pd Alloy
    Barrel : PBT / Au plated
    Spring : SWP / Au plated
    Bottom : BeCu / Au plated
