Mechanical
Application QFN / QFP / LGA / BGA

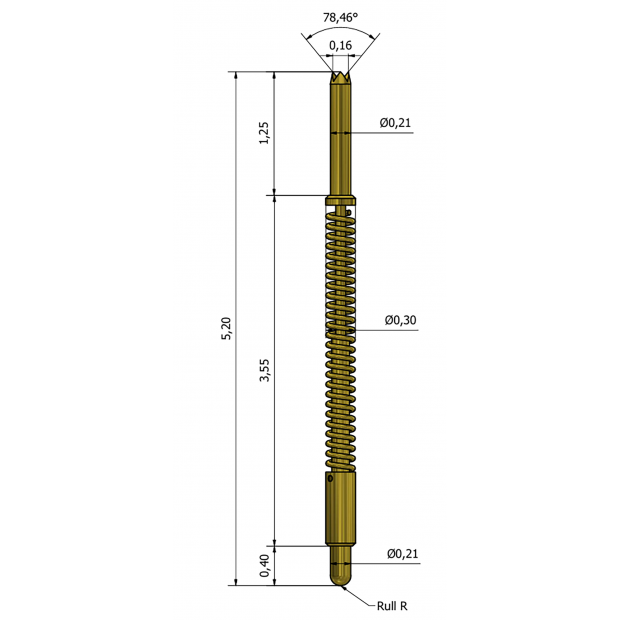

Height 4.5mm / 5.2mm (Test / Rest)
Pitch Range (MIN.) 0.4mm
Working Spring Force 35gf@0.70mmPitch Range (MIN.) 0.4mm
Recommended Travel 0.70mm
Temperature -40~120℃
Tip (device / PCB) Crown / Cone
Electrical
Contact resistance < 80 mΩ
Current Carrying Capability 2A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Spring : Music Wire / Au plated
Bottom : BeCu / Au plated
