Mechanical
Application QFN

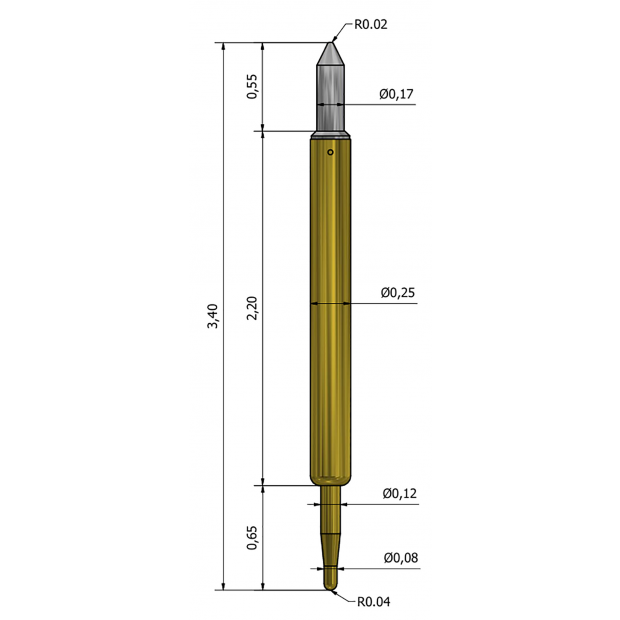

Height 3.0mm / 3.4mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 20gf@0.4mm
Recommended Trave 0.4mm
Temperature -45~125℃
Tip (device side / PCB side) Cone / Cone
Height 3.0mm / 3.4mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 20gf@0.4mm
Recommended Trave 0.4mm
Temperature -45~125℃
Tip (device side / PCB side) Cone / Cone
Electrical
Contact resistance < 70 mΩ
Current Carrying Capability 2A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Plunger-bottom : BeCu / Au plated
Barrel : SK4 / Au plated
Spring : SWP / Au plated
