Mechanical
Application QFN / BGA

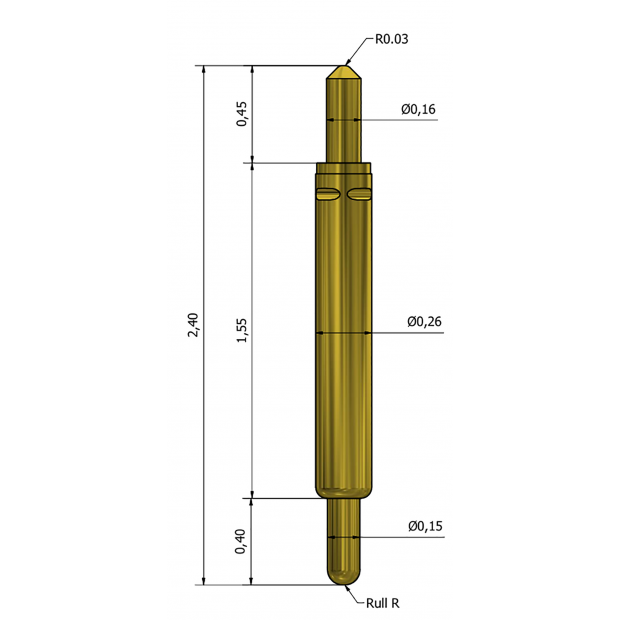

Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 25gf@0.3mm
Recommended Trave 0.3mm
Temperature -50~125℃
Tip (device side / PCB side) Crown / Cone
Height 2.1mm / 2.4mm (Test / Rest)
Pitch Range (MIN.)0.35mm
Working Spring Force 25gf@0.3mm
Recommended Trave 0.3mm
Temperature -50~125℃
Tip (device side / PCB side) Crown / Cone
Electrical
Contact resistance < 60 mΩ
Current Carrying Capability 2.5A Continuous
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : SK4 / Au plated
Barrel : PBT / Au plated
Spring : SWP-U / Au plated
Bottom : BeCu / Au plated
