Mechanical
Application QFN / QFP / LGA

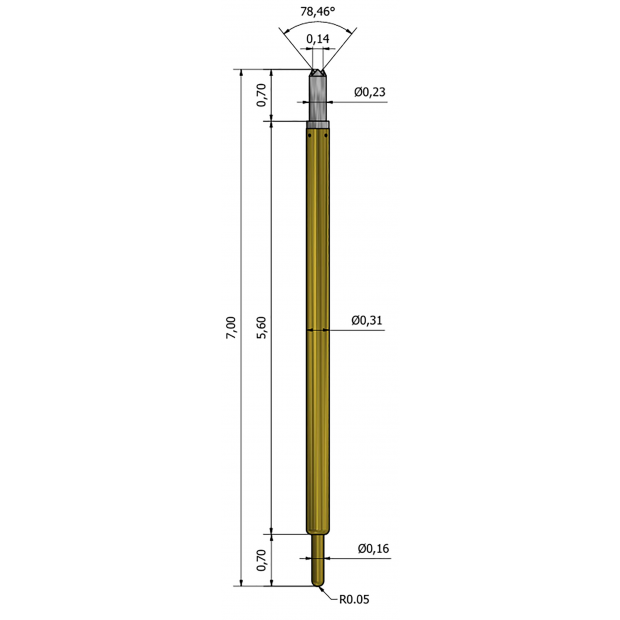

Height 6.5mm / 7.0mm (Test / Rest)
Working Spring Force 24gf@0.5mm
Temperature -55~155℃
Tip (device side / PCB side) Crown / Cone
Height 6.5mm / 7.0mm (Test / Rest)
Working Spring Force 24gf@0.5mm
Temperature -55~155℃
Tip (device side / PCB side) Crown / Cone
Electrical
Contact resistance < 120 mΩ
Current Carrying Capability 3A Continuous
Insertions
Cycle life > 200K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Plunger-bottom : SK4 / Au plated
Barrel : PBT / Au plated
Spring : NAS604 / Au plated
