Mechanical
Application QFN / QFP / LGA

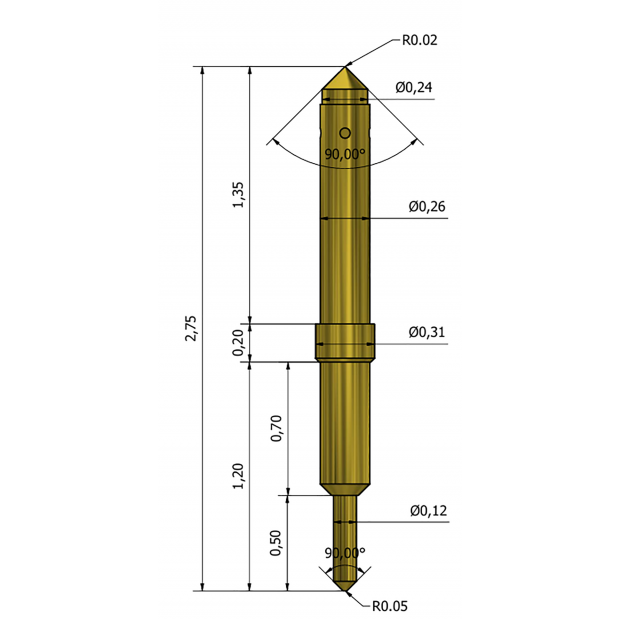

Height 2.4mm / 2.75mm (Test / Rest)
Pitch Ranger (MIN.) 0.4mm
Working Spring Force 24gf@0.35mm
Temperature -40~125℃
Tip (device side / PCB side) Cone / Cone
Height 2.4mm / 2.75mm (Test / Rest)
Pitch Ranger (MIN.) 0.4mm
Working Spring Force 24gf@0.35mm
Temperature -40~125℃
Tip (device side / PCB side) Cone / Cone
Electrical
Contact resistance < 50 mΩ
Current Carrying Capability 2A Continuous
Insertions
Cycle life > 500K
BOM (Material VS Plating)
Plunger-top : BeCu / Au plated
Barrel : PBT / Au plated
Spring : SWP / Au plated
Bottom : BeCu / Au plated
