  1. Pogo Pin / 彈簧針

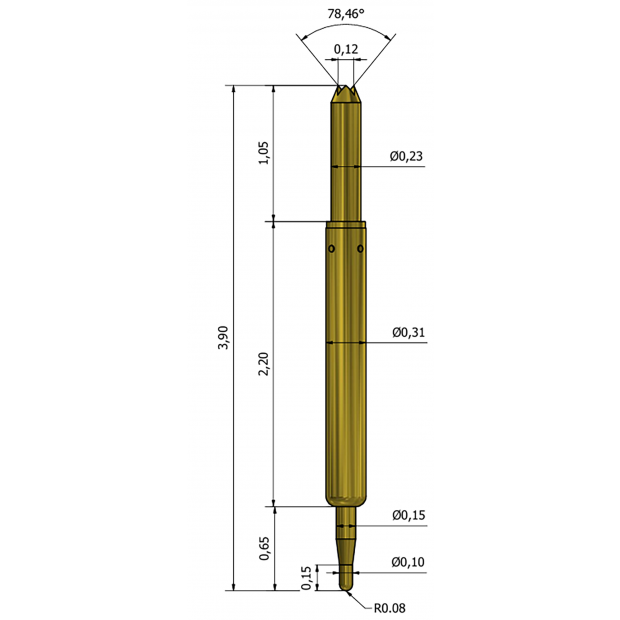

IAM-PT00011-12

IAM-PT00011-12

Application QFN / QFP / LGA / BGA

Height 3.5mm / 3.9mm (Test / Rest)

Pitch Range (MIN.) 0.4mm

Working Spring Force 30gf@0.40mm

Temperature -55~150℃

Tip (device side / PCB side) R Crown / Cone
/
詳細介紹
    Mechanical
    Application QFN / QFP / LGA / BGA
    Height 3.5mm / 3.9mm (Test / Rest)
    Pitch Range (MIN.) 0.4mm
    Working Spring Force 30gf@0.40mm
    Full Travel 0.55mm
    Temperature -50~150℃
    Tip (device / PCB) R Crown / Cone

    Electrical
    Contact resistance < 60 mΩ
    Current carrying capability : 3A Continuous

    Insertions
    Cycle life > 300K

    BOM (Material VS Plating)
    Plunger-top : Pd Alloy / Au plated
    Barrel : PBT / Au plated
    Spring : NAS604 / Au plated
    Bottom : BeCu / Au plated
