Pogo Pin / 彈簧針

  1. Pogo Pin / 彈簧針

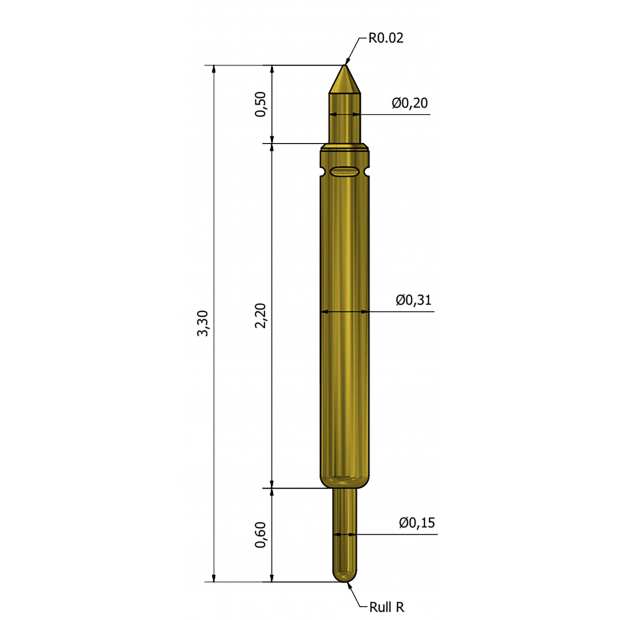

IAM-PT00011-11

IAM-PT00011-11

Application QFN / QFP / LGA

Height 2.9mm / 3.3mm (Test / Rest)

Working Spring Force 30gf@0.40mm

Full Travel 0.55mm

Temperature -55~120℃

Tip (device side / PCB side) Cone / Cone
/
詳細介紹
    Mechanical
    Application QFN / QFP / LGA
    Height 2.9mm / 3.3mm (Test / Rest)
    Working Spring Force 30gf@0.40mm
    Full Travel 0.55mm
    Temperature -55~120℃
    Tip (device / PCB) Cone / Cone

    Electrical
    Current capacity : 2A Continuous
    Self-inductance : 0.85nH
    Parasitic capacitance : 0.45pF
    DC Resistance < 50 mΩ (Average)
    Bandwidth @ -1dB : 16.5GHz

    Insertions
    Cycle life > 300K

    BOM (Material VS Plating)
    Plunger-top : BeCu / Au plated
    Plunger-bottom : BeCu / Au plated
    Barrel : PBT / Au plated
    Spring : SWP-U / Au plated
