Mechanical
Application QFN / QFP / LGA

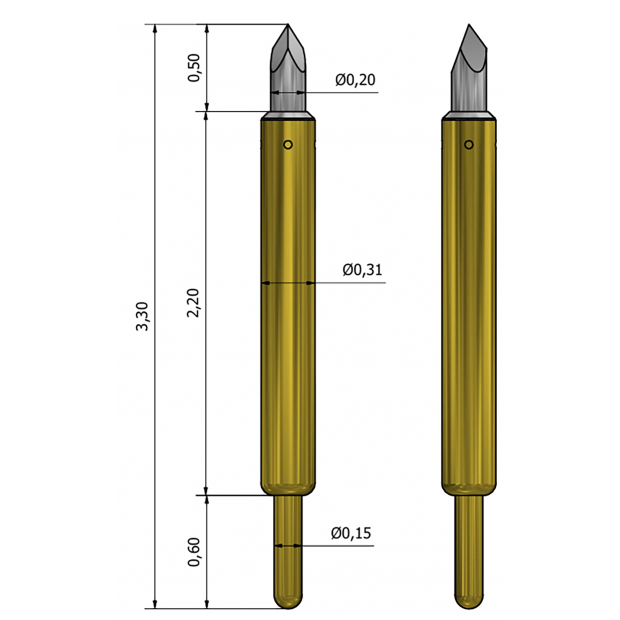

Height 2.9mm / 3.3mm (Test / Rest)
Working Spring Force 35gf@0.40mmFull Travel 0.55mm
Temperature -55~155℃
Tip (device / PCB) Tip / Cone
Electrical
Contact resistance < 50 mΩ (Average)
Current capacity : 2A Continuous
Self-inductance : 0.85nH
Parasitic capacitance : 0.45pF
Bandwidth @ -1dB : 16.5GHz
Insertions
Cycle life > 300K
BOM (Material VS Plating)
Plunger-top : Pd Alloy
Plunger-bottom : BeCu / Au plated
Barrel : PBT / Au plated
Spring : SST / Au plated
