  1. Pogo Pin / 彈簧針

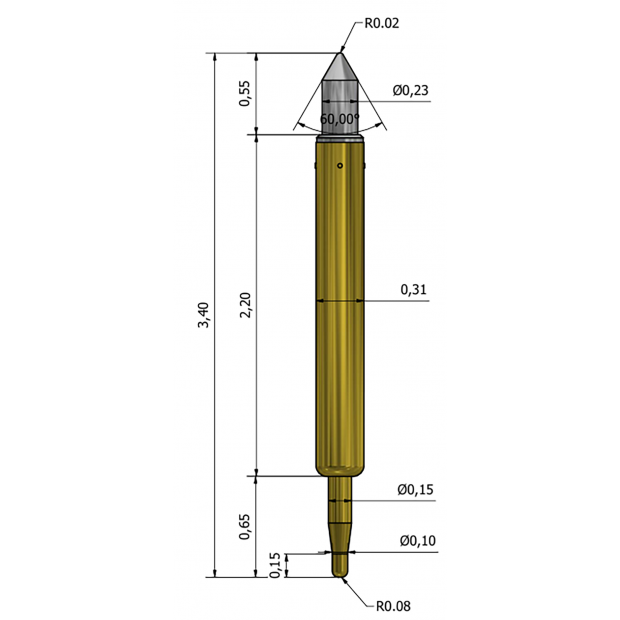

IAM-PT00011-04

IAM-PT00011-04

Application QFN / QFP / LGA

Height 3.0mm / 3.4mm (Test / Rest)

Pitch Range (MIN.) 0.4mm

Working Spring Force 31gf@0.40mm

Recommended Travel 0.4mm

Temperature -20~125℃

Tip (device side / PCB side) Cone / Cone
/
詳細介紹
    Mechanical
    Application QFN / QFP / LGA
    Height 3.0mm / 3.4mm (Test / Rest)
    Pitch Range (MIN.) 0.4mm
    Working Spring Force 31gf@0.40mm
    Recommended Travel 0.4mm
    Temperature -20~125℃
    Tip (device / PCB) Cone / Cone

    Electrical
    Contact resistance < 80 mΩ
    Current Carrying Capability 2A Continuous

    Insertions
    Cycle life > 300K

    BOM (Material VS Plating)
    Plunger-top : Pd Alloy
    Barrel : PBT / Au plated
    Spring : SWP / Au plated
    Bottom : BeCu / Au plated
